Bodor - T2-65-3000WDK-CUT-BOD-2024-00001

Name: Bodor T2-65-3000W
Brand: Bodor
SKU: DK-CUT-BOD-2024-00001
Price: 84000 EUR
Availability: InStock

84,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bodor T2-65-3000W For Sale | gindumac.com

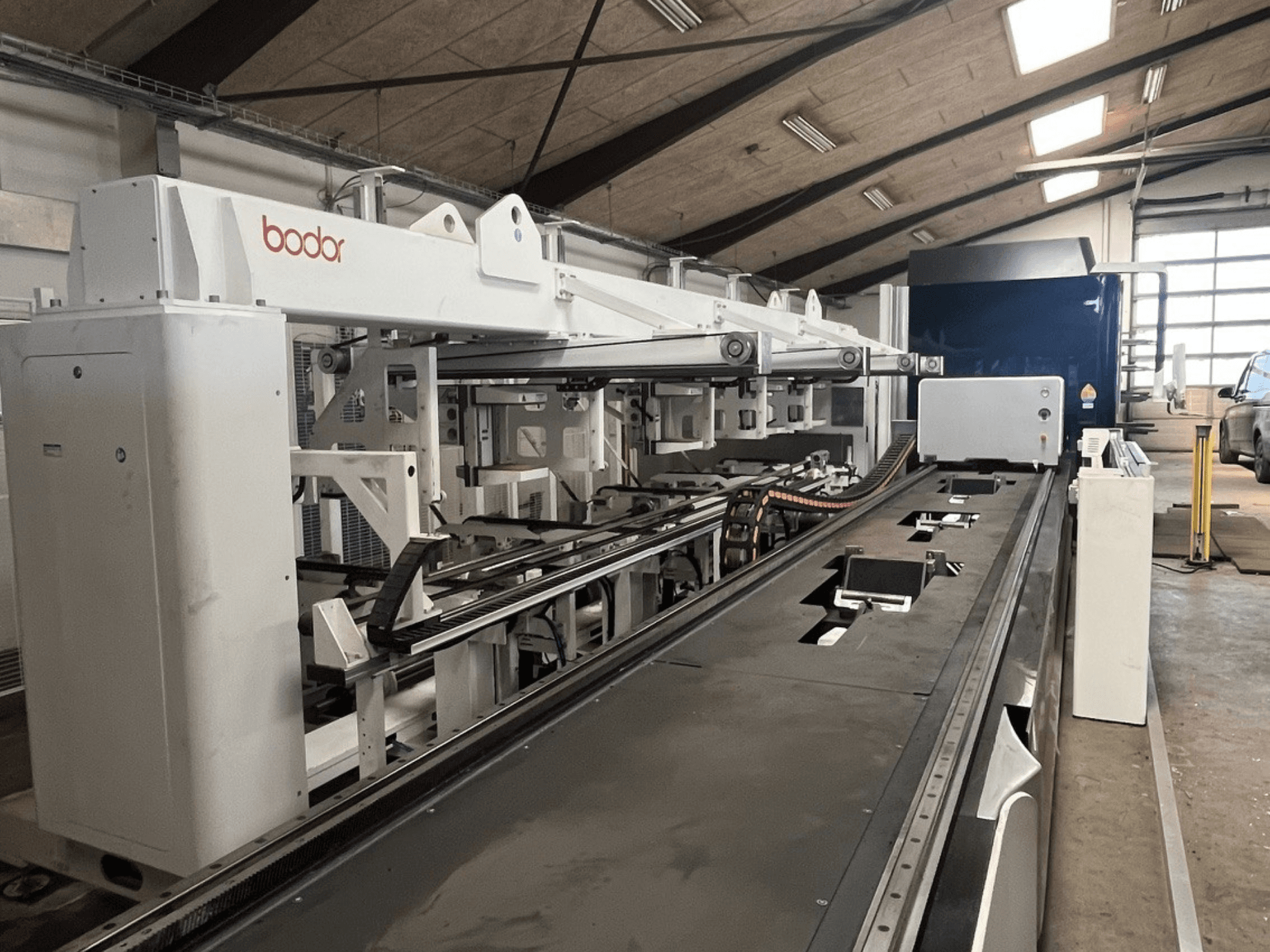

Tube cutting machine manufactured in 2024. This Bodor T2-65-3000W features advanced technology for efficient cutting operations. If you are looking to get high-quality tube cutting capabilities, consider the Bodor T2-65-3000W machine we have for sale. Contact us for further details.

Overview

brand: Bodor
year: 2024
MODEL: T2-65-3000W
application type: Cutting
Location: Denmark
machine type: Tube Cutting Machine

Technical Information - Bodor T2-65-3000W

Movement

Number of Axes: 5

Technical Specification

Laser Power: 3 kW

Additional Information

Model T230

Tube size range Round tube：φ8-φ230mm

Square tube ：□8-□230mm

Rectangular tube 230mm≥Side length≥8mm

I-beam 10#-14#

Requirements for tubes

Diameter＜φ50mm

Wall thickness of tubes≥1.2mm；

Diameter≥φ50mm

Wall thickness≥2.5% of Diameters of tubes

Pneumatic chuck maximum load 300kg 46kg/m

Maximum machinable tube length 6500mm

Maximun unloading length 4500mm

Shortest remaining material 80mm

Laser Power / Brand 3000W Bodor

Positioning Accuracy 0.05mm

Repositioning Accuracy 0.03mm

Max. Acceleration 1.5G

Machine overall dimensions

12650mm×2350mm×2500mm

Overall weight 5060kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
