TRUMPF - Trumatic 2000RSK-PUN-TRU-2005-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Punching Machine - Trumpf Trumatic 2000R

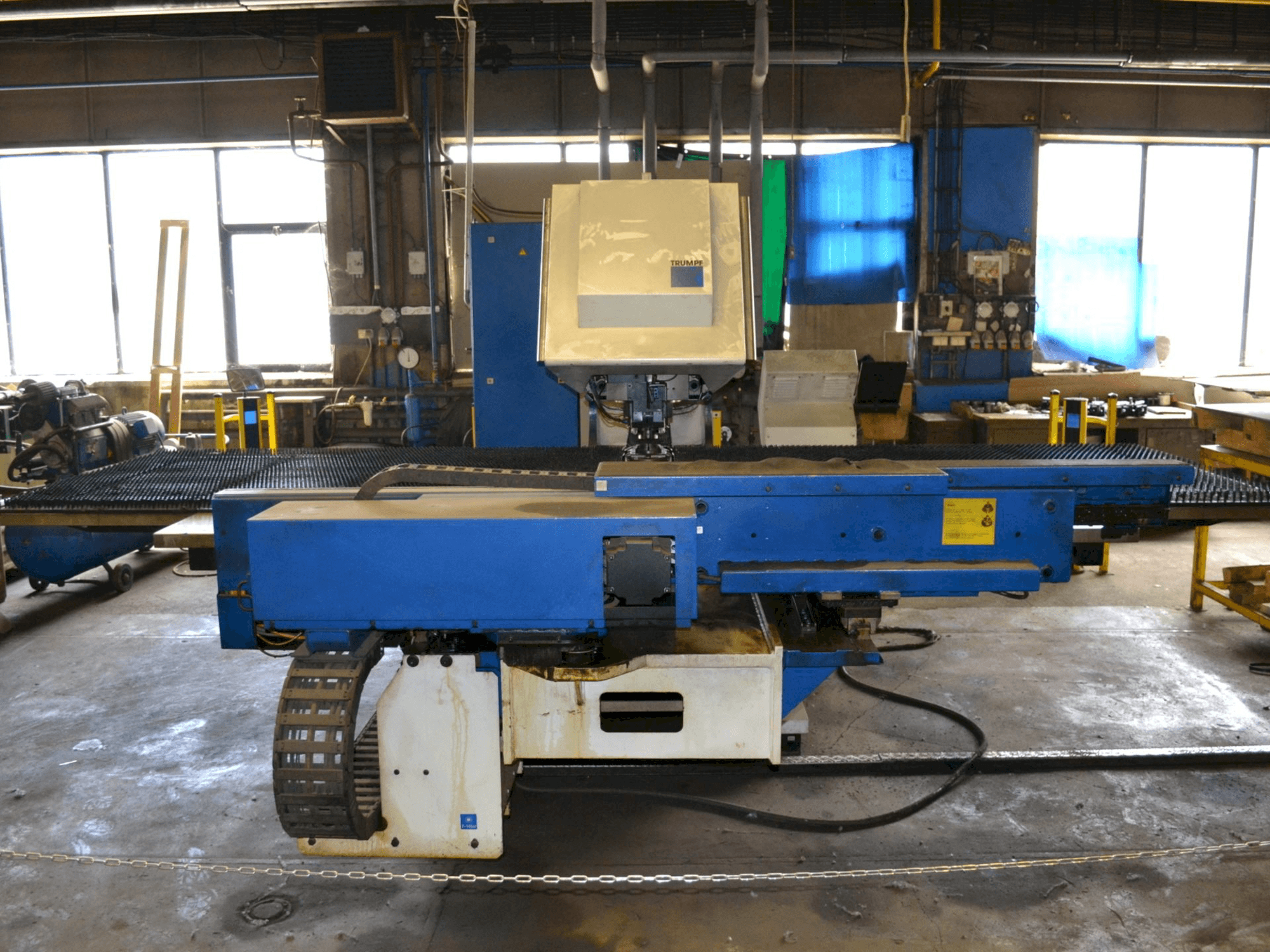

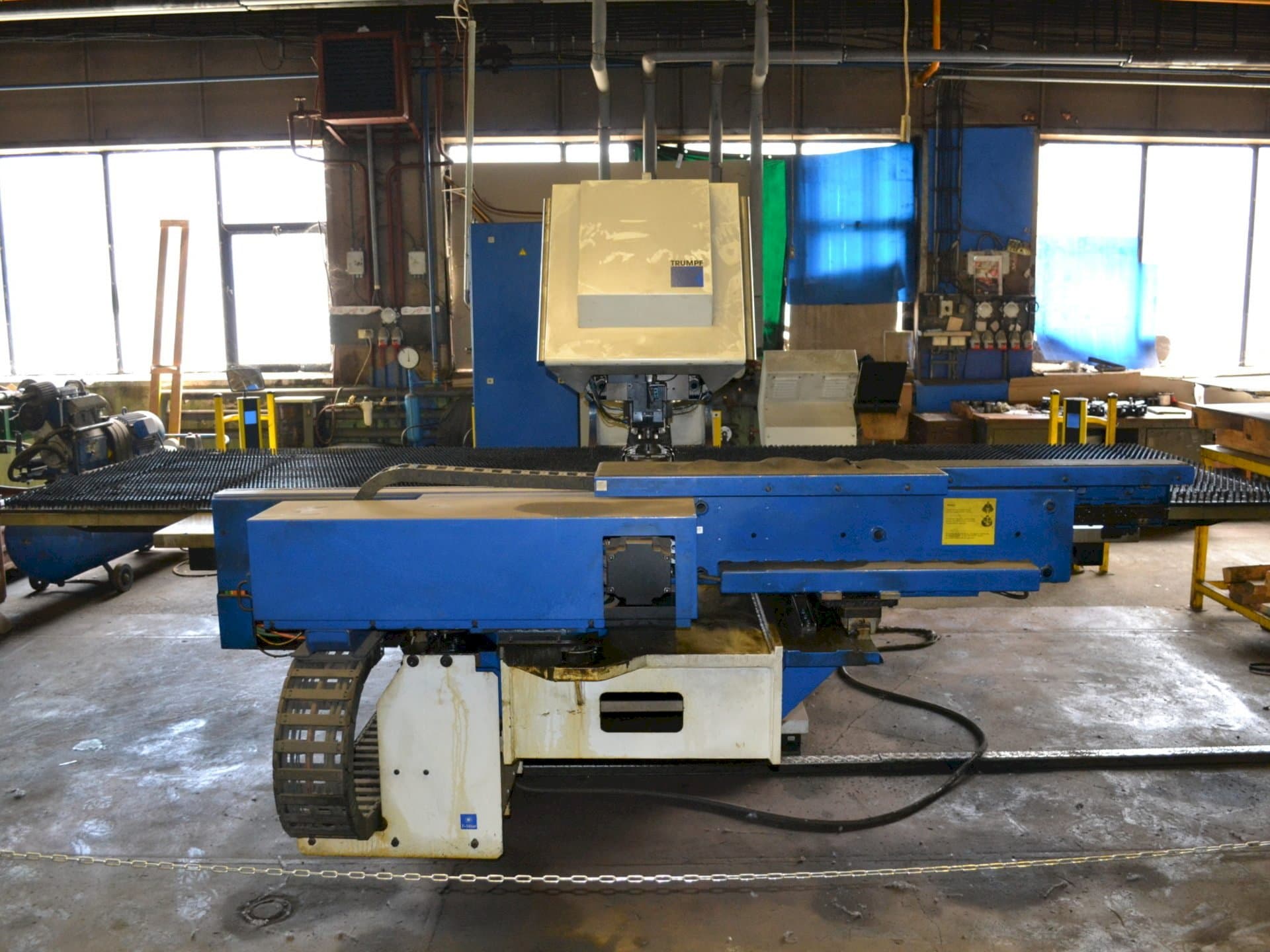

This Trumpf Trumatic 2000R Punching Machine was built in the year 2005 in Germany. It has been working for 18521 hours. It is equipped with a Bosch Typ3 control unit. This machine can operate with a punching force of 180 kN. It is in very good conditions.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic 2000R
- production hours: 18521
- application type: Punching
- Location: Slovakia
- machine type: CNC Punch Press
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 2000R
Control Unit
- Control Brand: BOSCH
- Control Model: Typ3
Dimensions
- Machine Weight: 8000 kg
Movement
- X-axis Travel: 1275 mm
- Y-axis Travel: 2450 mm
Technical Specification
- Max. Sheet Thickness: 6.4 mm
- Punching Force: 180 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- C axis: 3 rotations per second
- Max. Stroke rate 900 / second
- Feedrates x/y axis 90/60 m/min
- Simultaneous feedrate x+y 108 m/min
- Linear tool changer 9 positions
- Security light barrier
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
