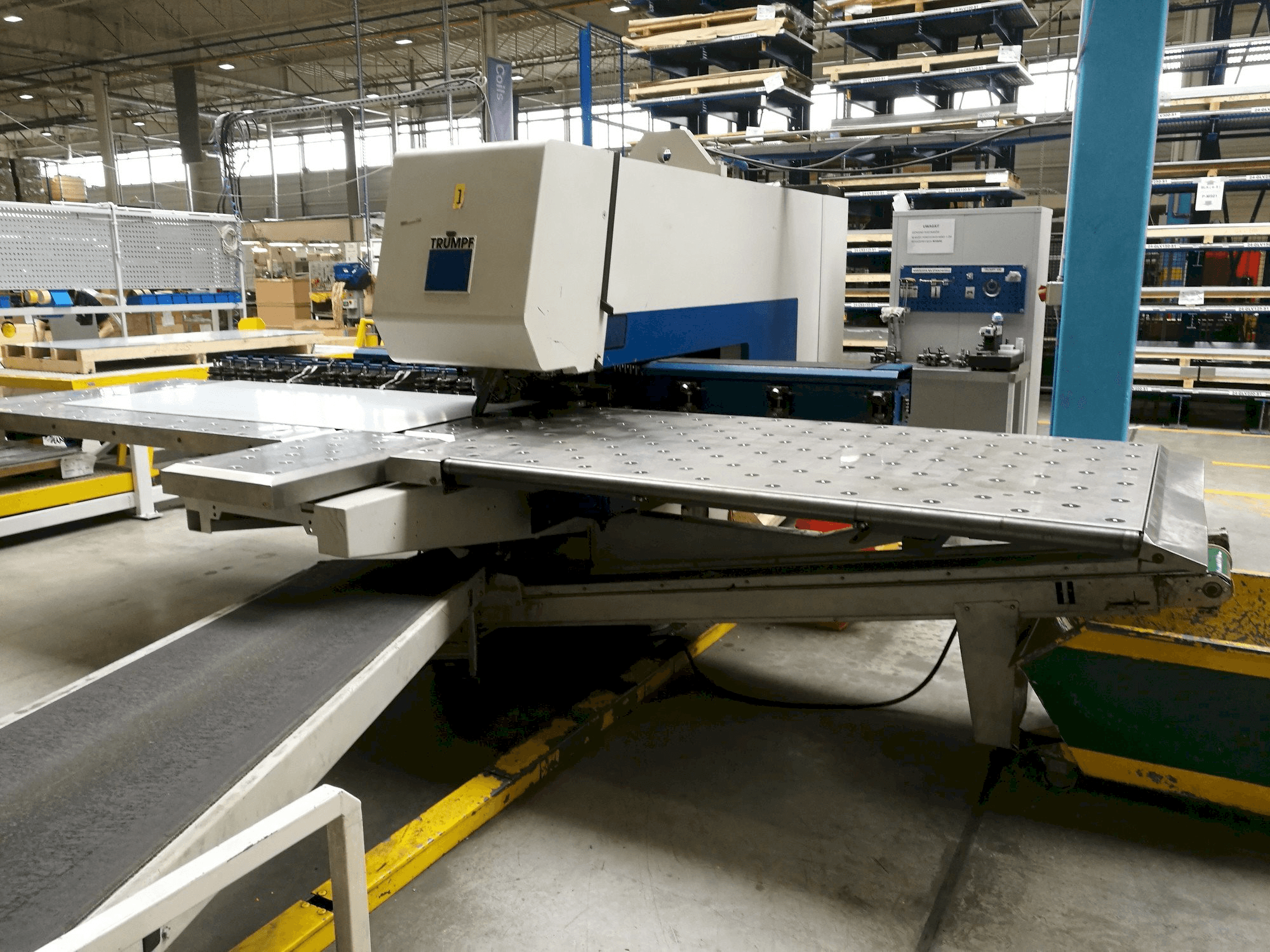

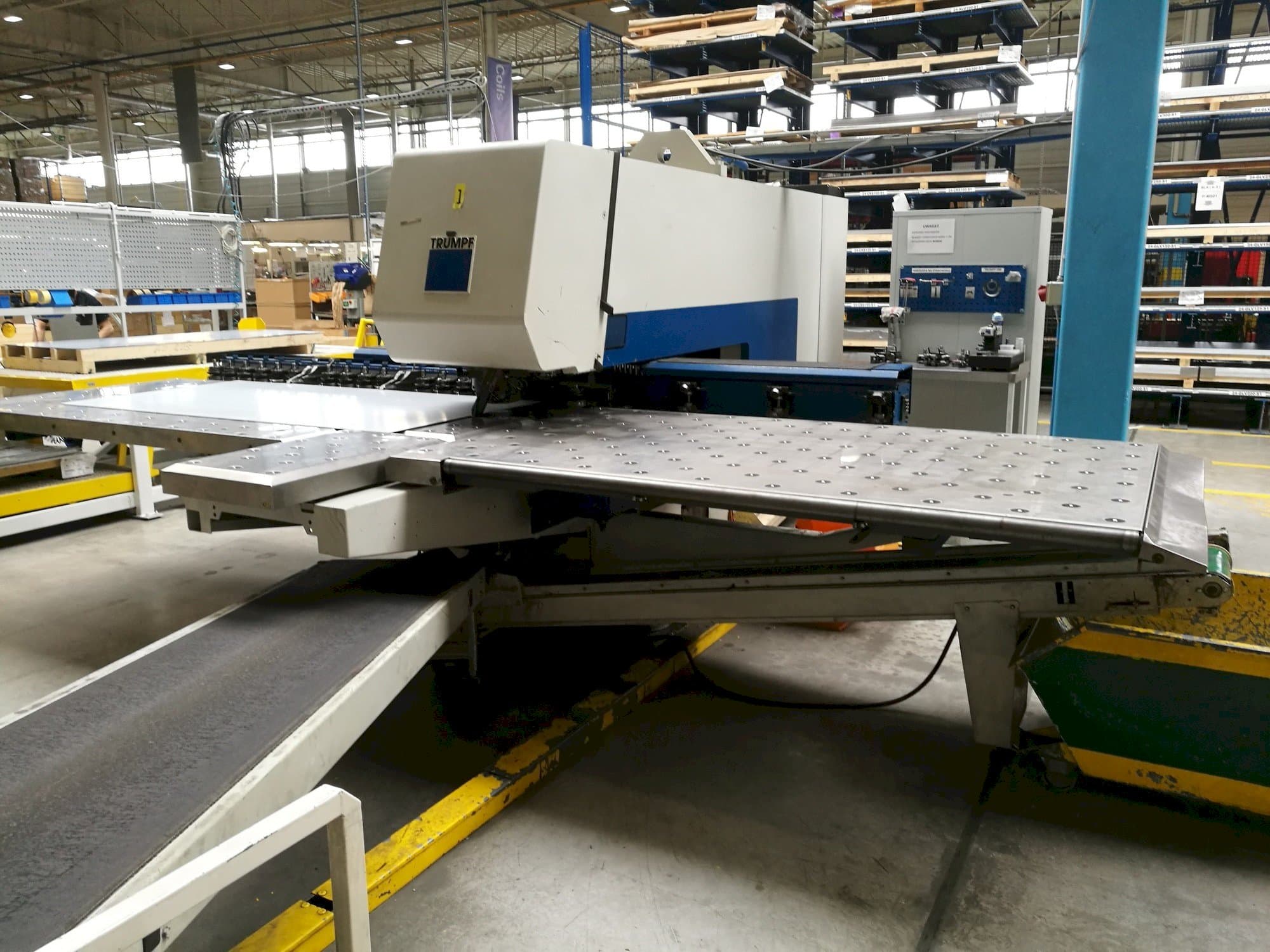

Trumpf Trumatic 500 Punching Machine

This Trumpf Trumatic 500 Punching Machine was built in 1999 in Germany and has been working for 49900 hours since then. Operated through a Bosch TRUMAGRAPH Control unit, this machine incorporates a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 500
production hours: 49900
application type: Punching
Location: Poland
machine type: Punching Machine
availability: Sold
control unit brand: bosch
GINDUMAC ID: PL-PUN-TRU-1999-00001

Technical Information

General Data

Measurements width: 5200 mm
Measurements depth: 5200 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Brand: bosch
Model: TRUMAGRAPH

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 150 kg

Tools

Number of index: 18

Max Material thickness

Steel: 8 mm
Stainless steel: 3 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 17 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Galvanized ms
material thickness: 2 mm
End product: Hvac

Machine Benefits

Technical Machine Benefits:
- - Very good technical conditions
Qualitative Machine Benefits:
- - Machine was always inspected by trumpf service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
