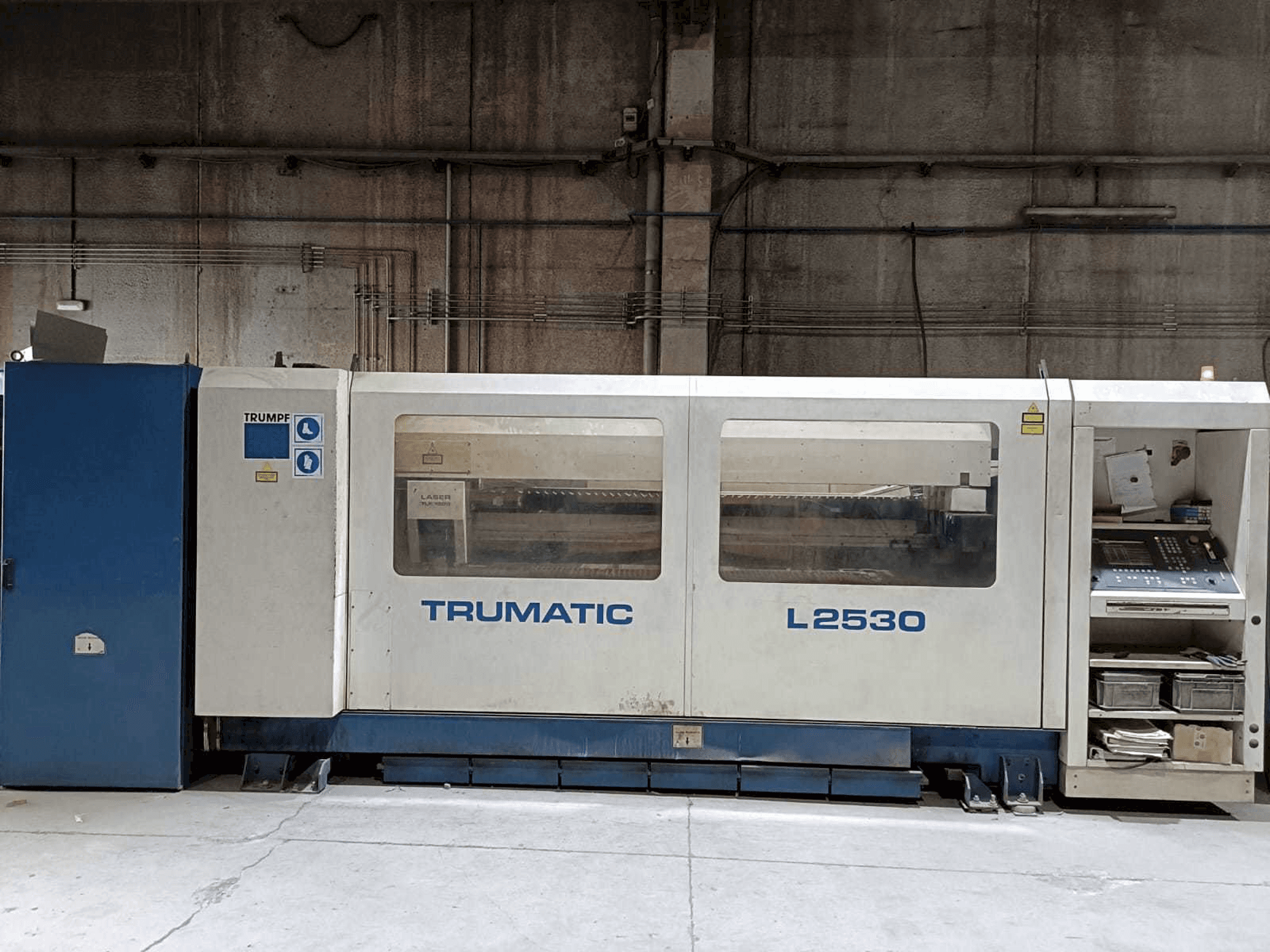

Front view of Trumpf Trumatic L2530  machine

TRUMPF Trumatic L2530

TRUMPF - Trumatic L2530

1998

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This TRUMPF Trumatic L2530 Laser cutting machine was manufactured in the year 1998 in the United States and has 22000 production hours. It is equipped with a SIEMENS Sinumerik 840 D control unit. The machine has a laser power of 1,8 kW.

Overview

  • brand: TRUMPF
  • year: 1998
  • MODEL: Trumatic L2530
  • application type: Laser Cutting
  • Location: Spain
  • machine type: Laser Cutting Machines (CO2)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: ES-LAS-TRU-1998-00002

Technical Information

General Data

  • Measurements width: 5900 mm
  • Measurements depth: 6500 mm
  • Measurements height: 2000 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: Siemens
  • Model: Sinumerik 840 D

Main drive

  • Laserpower: 1,8 kW

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1250 mm
  • Z-AXIS Movement: 115 mm

Workpiece

  • Workpiece x: 2500 mm
  • Workpiece y: 1250 mm
  • Workpiece z: 115 mm

Max Material thickness

  • Steel: 12 mm
  • Stainless steel: 4 mm
  • Aluminum: 3 mm

Media

  • Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
