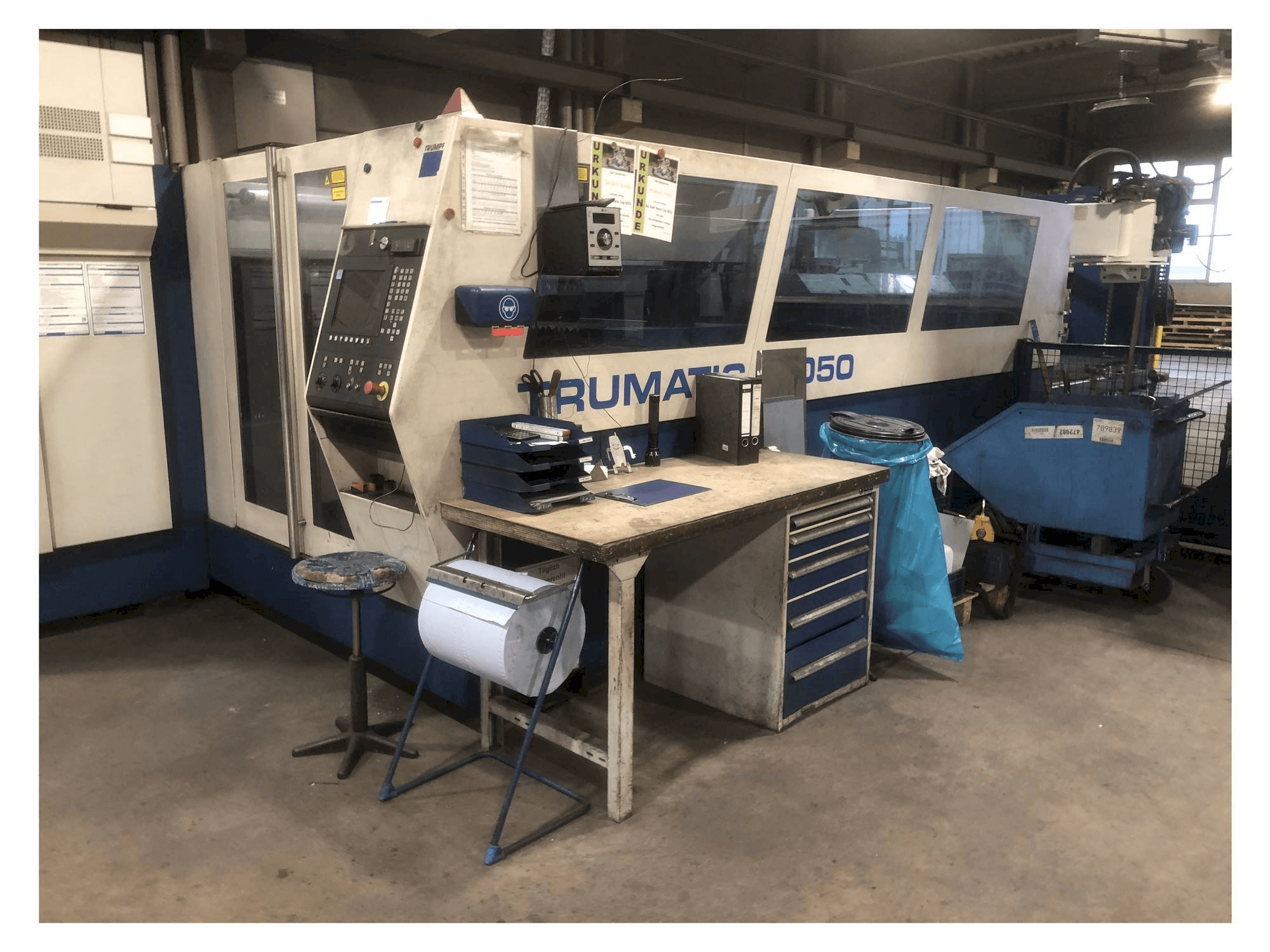

Front view of TRUMPF Trumatic L3050  machine

TRUMPF - Trumatic L3050DE-LAS-TRU-2003-00004

9,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine was manufactured in the year 2003. It is equipped with a TRUMPF CNC SIEMENS SINUMERIK 840 D control unit and has 3 axis. The machine has a maintenance contract with Trumpf and is consequently in good condition. A quartz tube replacement was carried out in 2022/2023.

Overview

  • brand: TRUMPF
  • year: 2003
  • MODEL: Trumatic L3050
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • availability: Immediately
  • control unit brand: TRUMPF CNC Siemens

Technical Information - TRUMPF Trumatic L3050

Control Unit

  • Brand: TRUMPF CNC Siemens
  • Model: Sinumerik 840D

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 100 mm

    Additional Equipment

    • - 1x double trolley
    • - 1x storage platform

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Automatic pallet changer
        • - Laser unit: c02 laser, high-frequency excited, cooling unit,
        • - Longitudinal conveyor belt for small parts/waste
        • - Compressed air cutting
        • - Laser power control
        • - Drives: gantry drive in combination with linear direct drives
        • - Contourlas for the production of small holes
        • - Microweld
        • - Liftmaster
        • - Hl-las high-pressure cutting
      • Qualitative Machine Benefits:
        • - Cutting gas pressure setting programmable laser cutting head with 5" lens and laser cutting head with 7. 5" lens
        • - Plasma sensor system pms
        • - Cutting head quick-change device
        • - 7. 5" lens
        • - Fast processing with sprint lasers
        • - Automatic sheet outer edge detection
        • - Capacitive height control (dias)
        • - Programmable power cycles
        • - Process control system (pcs)
        • - Workshop programming tops 100 lite

      Extra information

      • - Additional laser cutting head with 3.75" lens tr Additional laser cutting head with 9" lens // Position laser diode // Automatic focus position adjustment Autolas P/us // Oil spraying device for safe thick sheet processing // Automatic switch-off // Cross conveyor belt with container // Machine has a maintenance contract with Trumpf // Quartz tube replacement was carried out in 2022/2023

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
