TRUMPF - Trumatic L3050EE-LAS-TRU-2005-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery

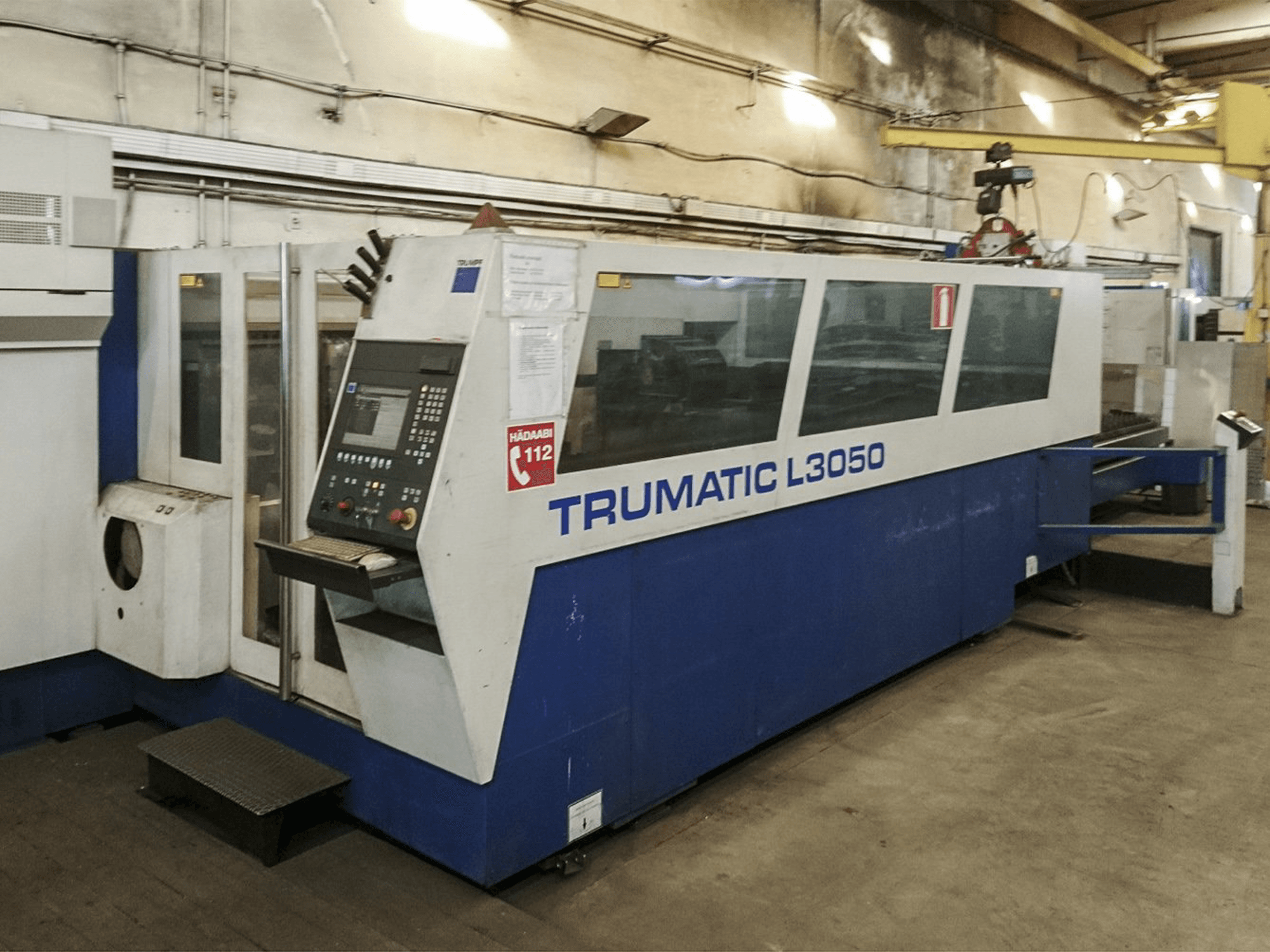

- ➤ Trumpf Trumatic L3050 | Laser Cutting Machine For Sale
This Trumpf Trumatic L3050 Laser Cutting Machine from 2005 was manufactured in Germany and has a working record of 37620 laser hours respectively 12319 beam hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was regularly inspected. As an extra feature, this machine comes with a Trumpf RotoLas device, allowing to cut tubes and profiles. In the past, this machine has mainly worked with steel sheets up to 25 mm of thickness, as well as with tubes and profiles. As additional equipment, this machine comes with four different sized laser cutting heads and an automatic pallet changer for loading and unloading.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic L3050
- production hours: 37620
- application type: Cutting
- Location: Estonia
- machine type: CO2 Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic L3050
General Data
- Measurements width: 4600 mm
- Measurements depth: 11250 mm
- Measurements height: 2400 mm
- Machine weight: 12500 kg
Control Unit
- Model: SINUMERIK 840D
- Brand: SIEMENS
Main drive
- Laserpower: 6 kW
- Laser type: TLF 6000TM
- Laser brand: Trumpf
Movement
- X-AXIS Movement: 3050 mm
- Y-AXIS Movement: 1550 mm
- Z-AXIS Movement: 115 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1050 mm
- Workpiece weight: 900 kg
Max Material thickness
- Steel: 25 mm
- Stainless steel: 25 mm
Media
- Power consumption: 109 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Laser cutting head f = 3.5"
- - Laser cutting head f = 5"
- - Laser cutting head f = 7"
- - Laser cutting head f = 9"
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
