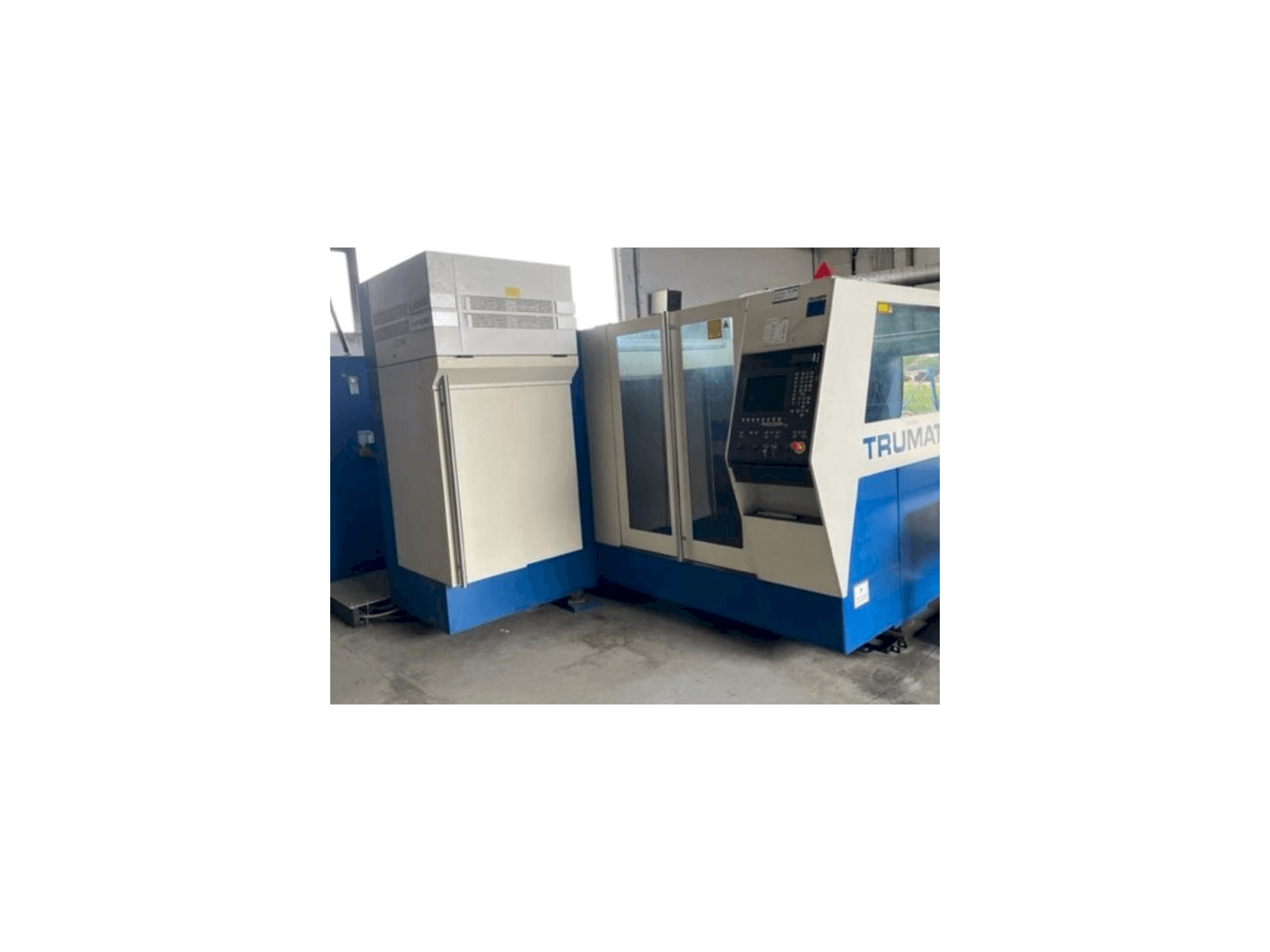

Front view of TRUMPF Trumatic L3050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050RS-LAS-TRU-2003-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

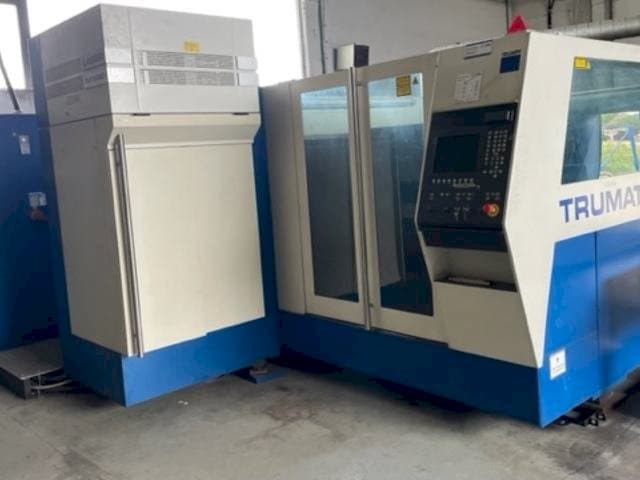

➤ For Sale: Used Trumpf Trumatic L3050 Cutting Machine

This Trumpf Trumatic L3050 Laser Cutting machine was manufactured in the year 2003 in Switzerland and has 65101 production hours, of which 19579 are laser cutting hours. It is equipped with a TRUMPF CNC control unit and has 2 axis. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic L3050
production hours: 65101
application type: Cutting
Location: Serbia
machine type: CO2 Laser Cutting Machine
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 4600 mm
Measurements depth: 11100 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Model: CNC
Brand: TRUMPF

Main drive

Laserpower: 5 kW
Number of axis: 2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Average position spread: 0. 03 mm
Base: sinumerik 8400
Tlf co-laser
Guaranteed maximum power (programmable in 1% steps): tlf 5000 - 5000 w
Wavelength: 10. 6 μm
Beam mode: tem 00
Consumption: laser gas: n
Cutting gas: 61 h
Laser cooling: 131 h
Electric consumption of the entire system, approximately: 500-2000 kwh - closed cooling system: 33 - 72 kw

Technical Machine Benefits

Maximum workpiece weight: 900 kg
Maximum sheet thickness
Structural steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm
Maximum axis speeds:
Longitudinal axis: 200 m/min
Transverse axis: 300 m/min
Smallest programmable path: 0. 01 mm
Position deviation: 0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
