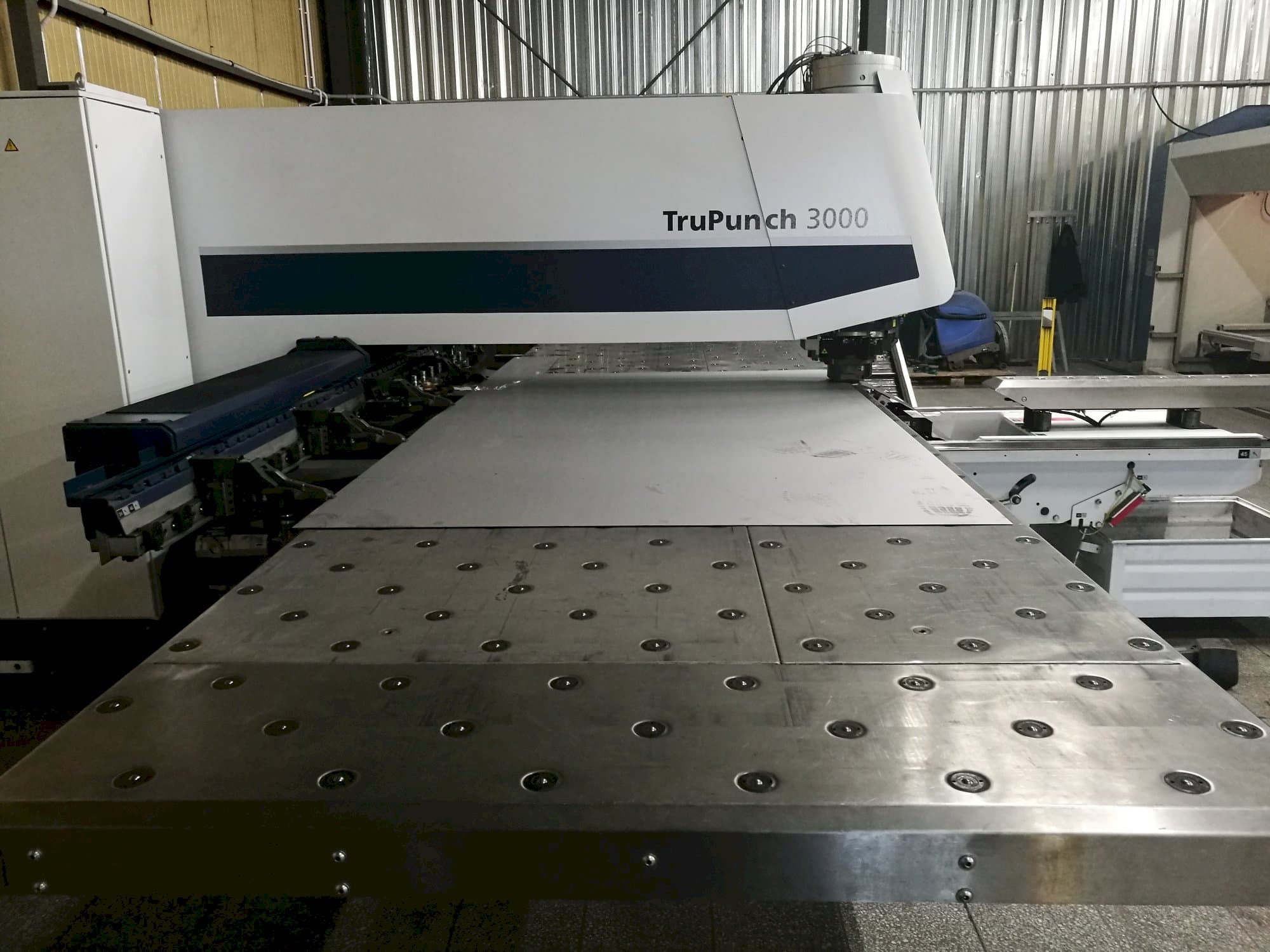

Left side view of Trumpf TruPunch 3000  machine

TRUMPF TruPunch 3000

TRUMPF - TruPunch 3000

2014

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Trumpf TruPunch 3000 Punching Machine from Germany was manufactured in 2014 and has been operative for 850 hours. Equipped with a control unit of the same brand, this machine can work with a punching force of 180 kN.

Overview

  • brand: TRUMPF
  • year: 2014
  • MODEL: TruPunch 3000
  • production hours: 850
  • application type: Punching
  • Location: Poland
  • machine type: Punching Machine
  • availability: Sold
  • control unit brand: Trumpf
  • GINDUMAC ID: PL-PUN-TRU-2014-00002

Technical Information

General Data

  • Measurements width: 7200 mm
  • Measurements depth: 6992 mm
  • Measurements height: 2252 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: Trumpf

Main drive

  • Punching force: 180 kN

Movement

  • X-AXIS Movement: 3050 mm
  • Y-AXIS Movement: 1525 mm

Workpiece

  • Workpiece weight: 230 kg

Tools

  • Number of index: 17

Max Material thickness

  • Steel: 6.4 mm

Media

  • Main electronic connection: 400V 50Hz 35A
  • Power consumption: 5.9 kW
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Scrap conveyor
    • - Single station tool holder
    • - 4 clampings for metal sheets
    • - 192 pcs tools

    Additional Information

      Machine history

      • Material type: Mild steel
      • material thickness: 2 mm

      Machine Benefits

      • Technical Machine Benefits:
        • - Very large additional equipment and options package
        • - Electric head

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
