Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
TWIN SEAM - KA 2000-3000DE-BEN-TWI-2002-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used TWIN SEAM KA 2000-3000 For Sale | gindumac.com

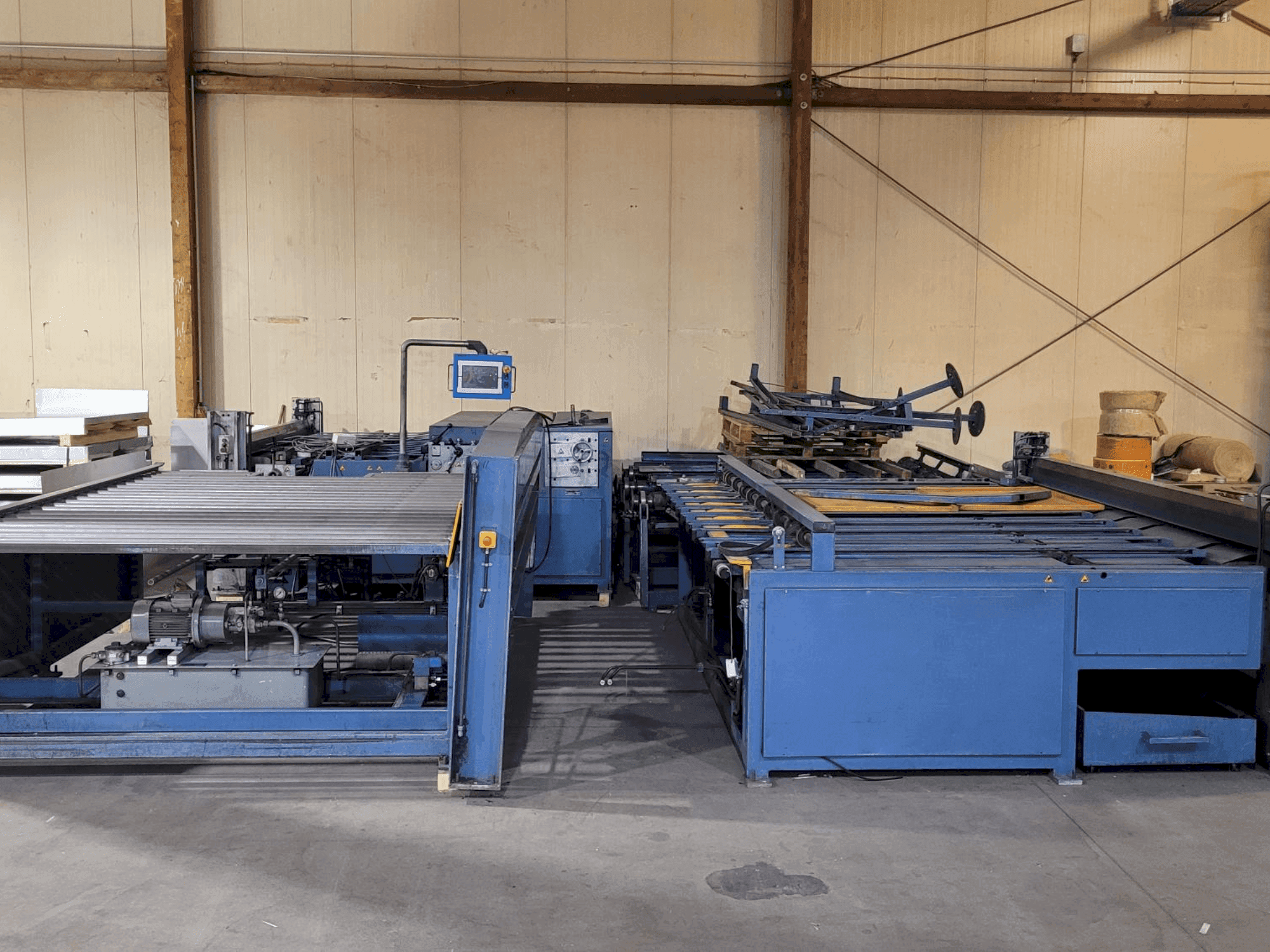

This TWIN SEAM KA 2000-3000 roll bending machine was manufactured in 2002. It handles coils up to 2000 mm wide and 7 tons in weight, producing channels from 140 x 140 mm to 2500 x 2500 mm. Efficient with a power consumption of only 4-10 kW, it offers high capacity production up to 10 tons per 8 hours. Contact us for more information about this machine.
Overview
- brand: TWIN SEAM
- year: 2002
- MODEL: KA 2000-3000
- application type: Bending
- Location: Germany
- machine type: Roll Bending Machine
Additional Information
Machine Benefits
Technical Machine Benefits
- Max sheet thickness: 1. 25 mm with profile, 1. 5 mm without profile // min sheet thickness: 0. 5 mm
- Max coil width: 2000 mm // min coil width: 1500 mm // max coil weight: 7000 kg
- Channels can be produced in sizes from 140 x 140 mm to 2500 x 2500 mm
- Channel lengths range from 300 mm to 3000 mm
- Max throughput speed: 18 m/min
- Average production time: 40 seconds per piece
- Sheet change time between two sheet thicknesses: 15 seconds
- Space requirement: 34 to 56 m2
- Max weight without coils: 11 tons
- High capacity of approximately 10 tons per 8 hours
Extra Information
Electrical connection: 3 x 380 V, 50 Hz + 0 ground
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
