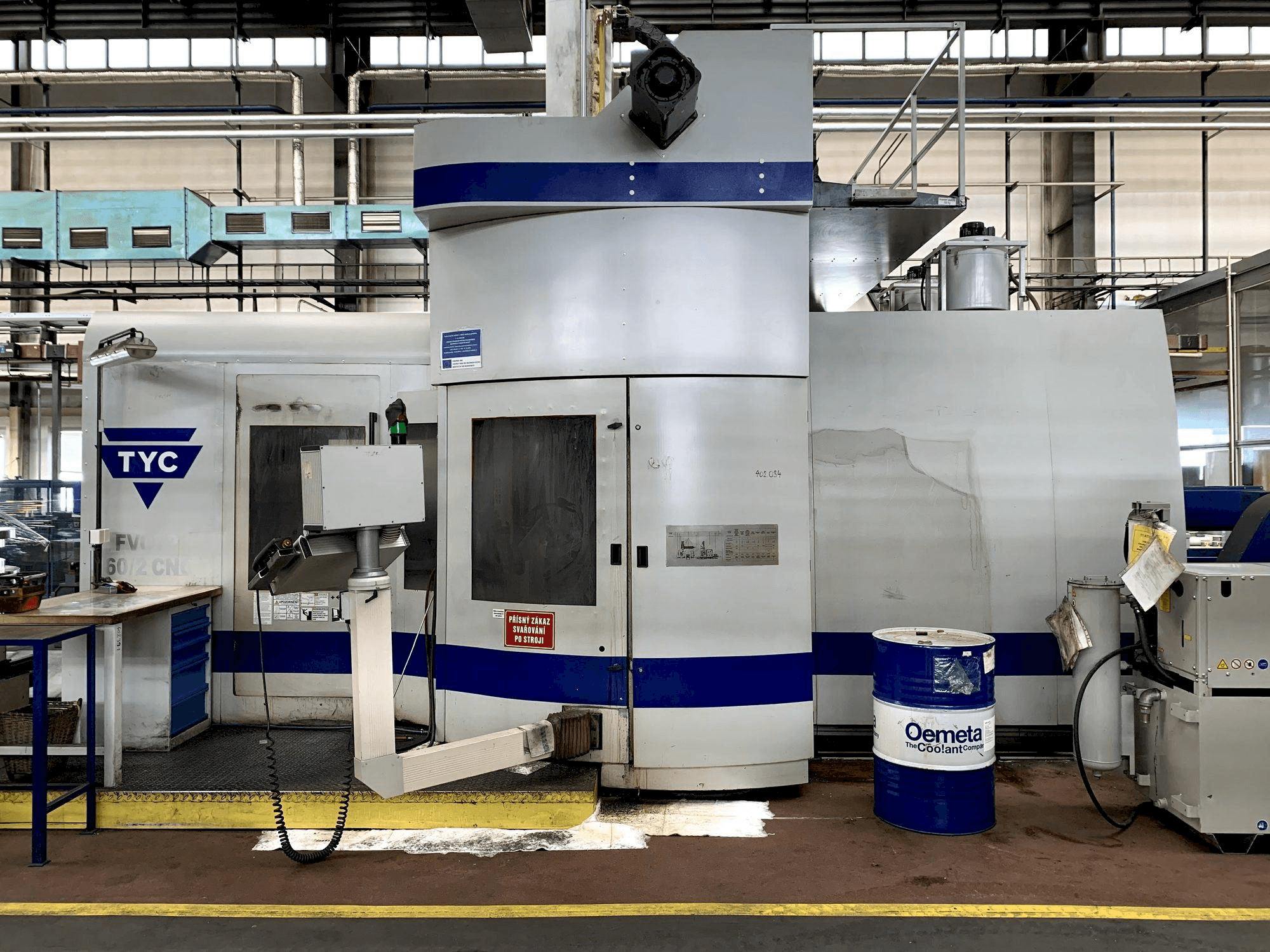

This TYC FVCTP 160/2 Measuring Machine was manufactured in the Czech Republic in the year 2013. It is equipped with a SIEMENS Sinumerik 840D control unit. This 5-axis machine can operate with a spindle speed up to 10000 rpm. It includes the machine manual and it is in very good condition.
Overview
- brand: TYC
- year: 2013
- MODEL: FVCTP 160/2
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TYC FVCTP 160/2
General Data
- Measurements width: 10000 mm
- Measurements depth: 5500 mm
- Measurements height: 6000 mm
- Machine weight: 38000 kg
Control Unit
- Model: Sinumerik 840D
- CNC language customizable: Yes
- Brand: SIEMENS
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 2425 mm
- Z-AXIS Movement: 1000 mm
Workpiece
- Workpiece weight: 3000 kg
Tools
- Slots in storage: 100
- Max weight: 20 kg
- Max tool diameter: 240/125 mm
- Max tool length: 350 mm
- Type of tool holder: HSK-T100
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Table diameter 1200 mm
- - Table rotation 400 rpm
- - Spindle motor power 40 kw, torque 175 nm
- - Work feed (x,y,z) 15. 000 mm/min
- - Fast feed (x/y/z) 15/20/20 m/min
- - Includes machine manual
- - Cooling through spindle
- - C axis (head)
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
