Unisign - Univers 4DE-MIL-UNI-2004-00001

Name: Unisign Univers 4
Brand: Unisign
SKU: DE-MIL-UNI-2004-00001
Price: 18000 EUR
Availability: InStock

18,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Unisign Univers 4 For Sale | gindumac.com

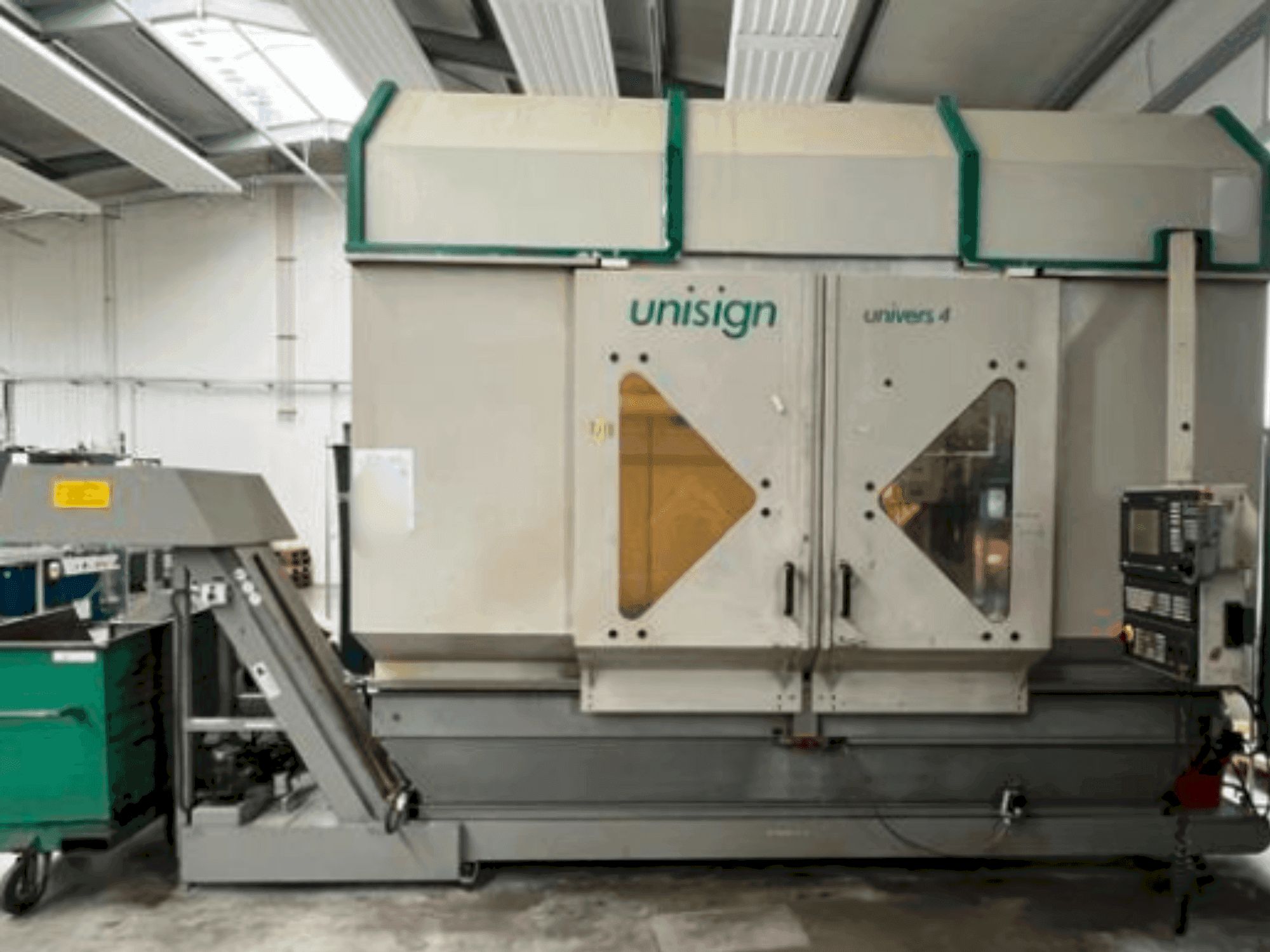

This 4-axis Unisign Univers 4 was manufactured in 2004, featuring X-travel of 1600mm, Y-travel and Z-travel of 400mm each, and a spindle speed up to 9000 rpm. It includes a chain tool magazine with 44 positions and a tool holder type DIN 69871-SK40. The machine weighs 9000 kg and requires a space of 6.5 x 3.5m. If you are looking to get high-quality milling capabilities consider the Unisign Univers 4 machine we have for sale. Contact us for more information.

Overview

brand: Unisign
year: 2004
MODEL: Univers 4
production hours: 19357
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Unisign Univers 4

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 810D

Dimensions

Machine Depth: 6500 mm
Machine Weight: 9000 kg
Table Load: 150 kg

Movement

Number of Axes: 4
X-axis Travel: 1600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Max. Tool Weight: 5 kg
Tool Stations: 44

Additional Information

Additional equipment

Measuring Probe RWP20.00
Enclosed Work Area Enclosure according to UW
Some SK40 Chucks
Hydraulic/Pneumatic Clamping Option in the Machining Area
Römheld 8400-185 Hydraulic Unit, Max. Pressure 500 bar
Flushing Gun in the Machining Area
Replacement Milling Spindle Available

Machine Benefits

Technical Machine Benefits

Total power requirement: 14 kw
A-axis: 360 x 0. 001°, 20 rpm
Table/pallet size (lxw in mm): 1 bridge with 4 sides, l1800mm, 4x113mm
Table/pallet alignment type: m10 & 10h7 grid
Tool magazine type: chain magazine
Coolant type/content: emulsion (internal & external) / approx. 480 l
Coolant unit: clefil rbf-e100 20 bar via m-befeld, max. 75 l/min
Some hydraulic and pneumatic hoses replaced
Lt module replaced in the control cabinet
Regular maintenance was performed

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
