UNITECH - HSM-ICDE-MIL-UNI-2012-00001

Name: UNITECH HSM-IC
Brand: UNITECH
SKU: DE-MIL-UNI-2012-00001
Price: 48000 EUR
Availability: InStock

48,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used UNITECH HSM-IC For Sale | gindumac.com

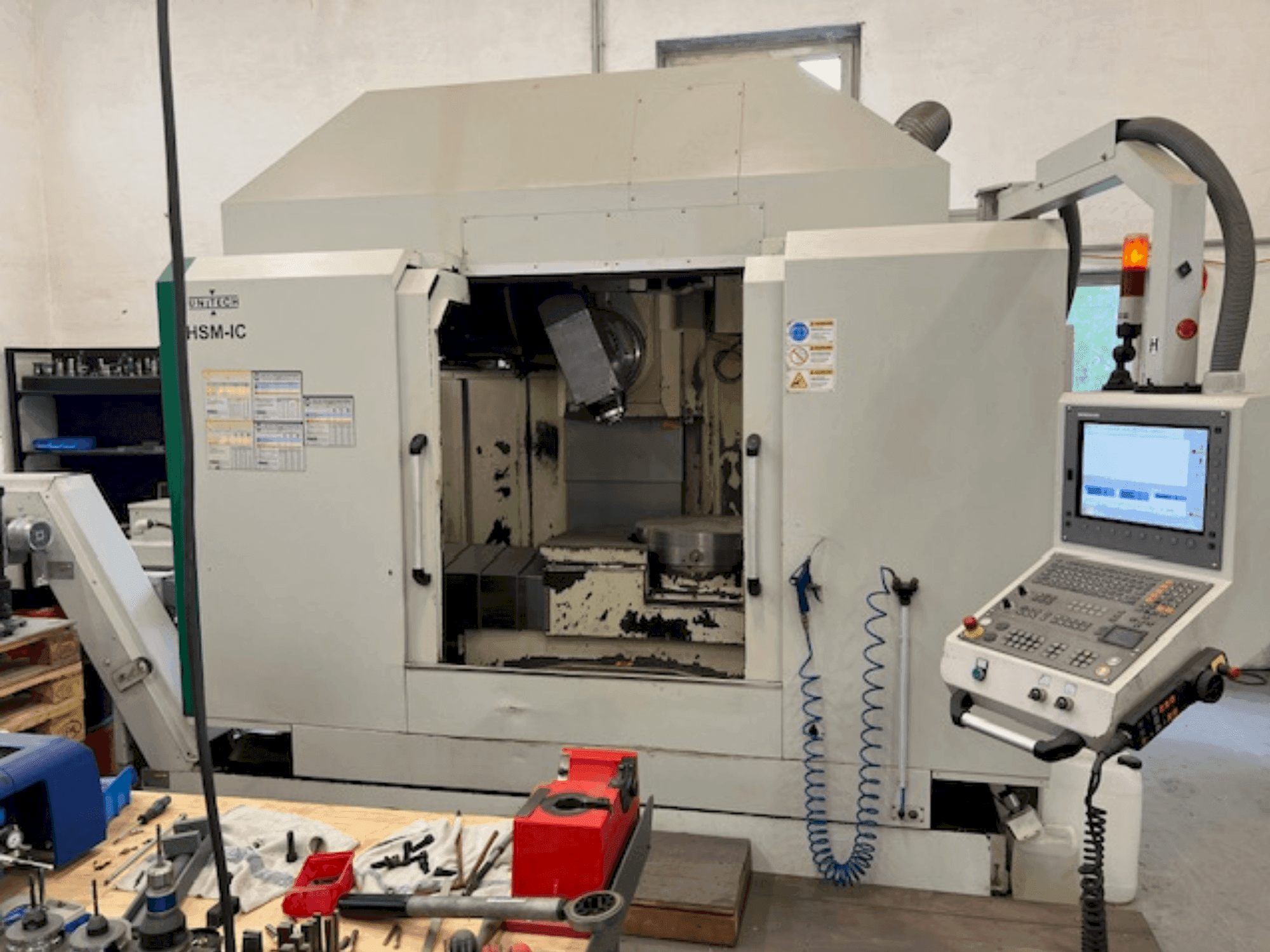

This 5-axis UNITECH HSM-IC was manufactured in 2012. It features a spindle speed of 15,000 rpm, rapid traverse speed up to 30,000 mm/min, and a rotary table diameter of 600 mm. The machine supports a maximum workpiece weight of 500 kg and includes a chip conveyor and internal cooling up to 60 bar. If you are looking to get high-quality milling capabilities consider the UNITECH HSM-IC machine we have for sale. Contact us for more information.

Overview

brand: UNITECH
year: 2012
MODEL: HSM-IC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - UNITECH HSM-IC

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axes: 5 (5-axis simultaneous milling machine) / x-travel: 1080 mm / y-travel: 610 mm / z-travel: 810 mm / rapid traverse speed max: 30000 mm/min
- - Max. Workpiece weight: 500 kg
- - Rotary table diameter: 600 mm / table clamping area: 1100 x 600 mm
- - Number of tool positions: 40 / tool holder: bt40
- - Some tool holders available
- - Internal cooling up to 60 bar / compressed air through the spindle center / glass scales in x and y / minimum quantity lubrication / zero-point clamping system in the rotary table / chip conveyor / infrared measuring system
- - Spindle overhauled in early 2025 / spindle nut of x-axis overhauled
- - Simultaneous 5-axis milling capabilities
- - Machine weight: approx. 8000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
