- ➤ Used Universal Robots UR5 Robot For Sale | gindumac.com

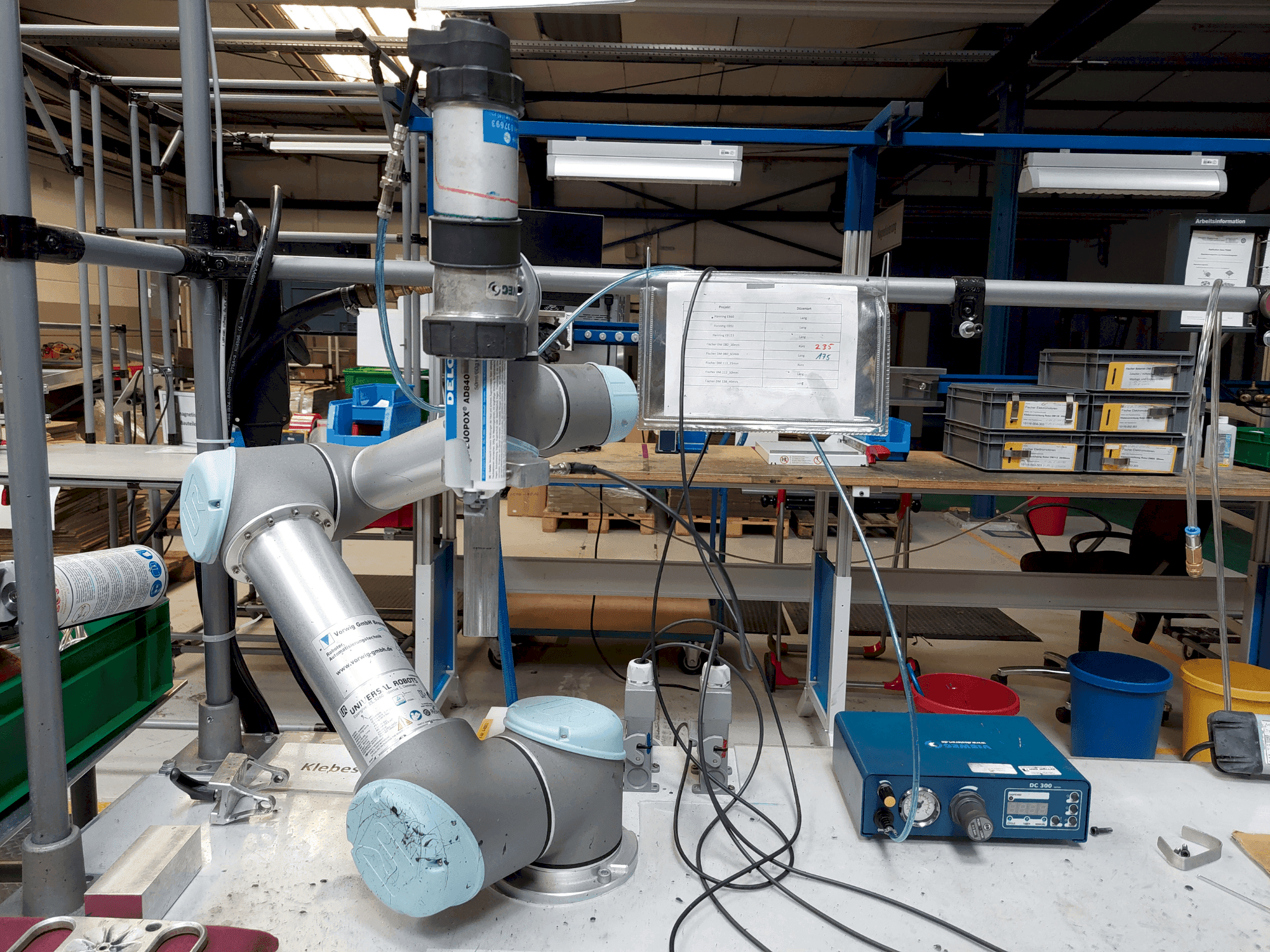

This Universal Robots UR5 was manufactured in 2019. Ideal for automation tasks, this robot arm enhances precision and efficiency in various applications. Contact us for more information.
Overview
- brand: Universal Robots
- year: 2019
- MODEL: UR5
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
- availability: Immediately
Technical Information - Universal Robots UR5
General Data
- Measurements width: 418 MM
- Measurements depth: 462 MM
- Measurements height: 268 MM
Additional Information
- Technical Machine Benefits:
- - I/o ports control box: 16 digital inputs, 16 digital outputs, 2 analog inputs, 2 analog outputs
- - Communication: tcp/ip 1000 mbit, ieee 802. 3u, 100base-t ethernet port, modbus-tcp, ethernet/ip adapter
- - Power supply: 24 v 2a (control box)
- - Programming: graphical polyscope interface on 12” touchscreen
- - Speed: joints max 180°/s, tool approx. 1 m/s
- - Degrees of freedom: 6 rotational joints
- - Pose repeatability: ± 0. 1 mm
- - Maximum payload: 5 kg
- - Robot type: ur5
- - Joint range: ± 360° for all joints
- Qualitative Machine Benefits:
- - Footprint: Ø149 mm
- - Noise level: 72 db(a)
- - Ip classification: ip54
- - Cleanroom classification: robot arm: iso class 5, control box: iso class 6
- - Maximum average power: approx. 390 w
- - Maximum average power: approx. 390 w
- - Materials: aluminum, pp plastic
- - Temperature range: 0-50 °c
- - Temperature range: 0-50 °c
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
