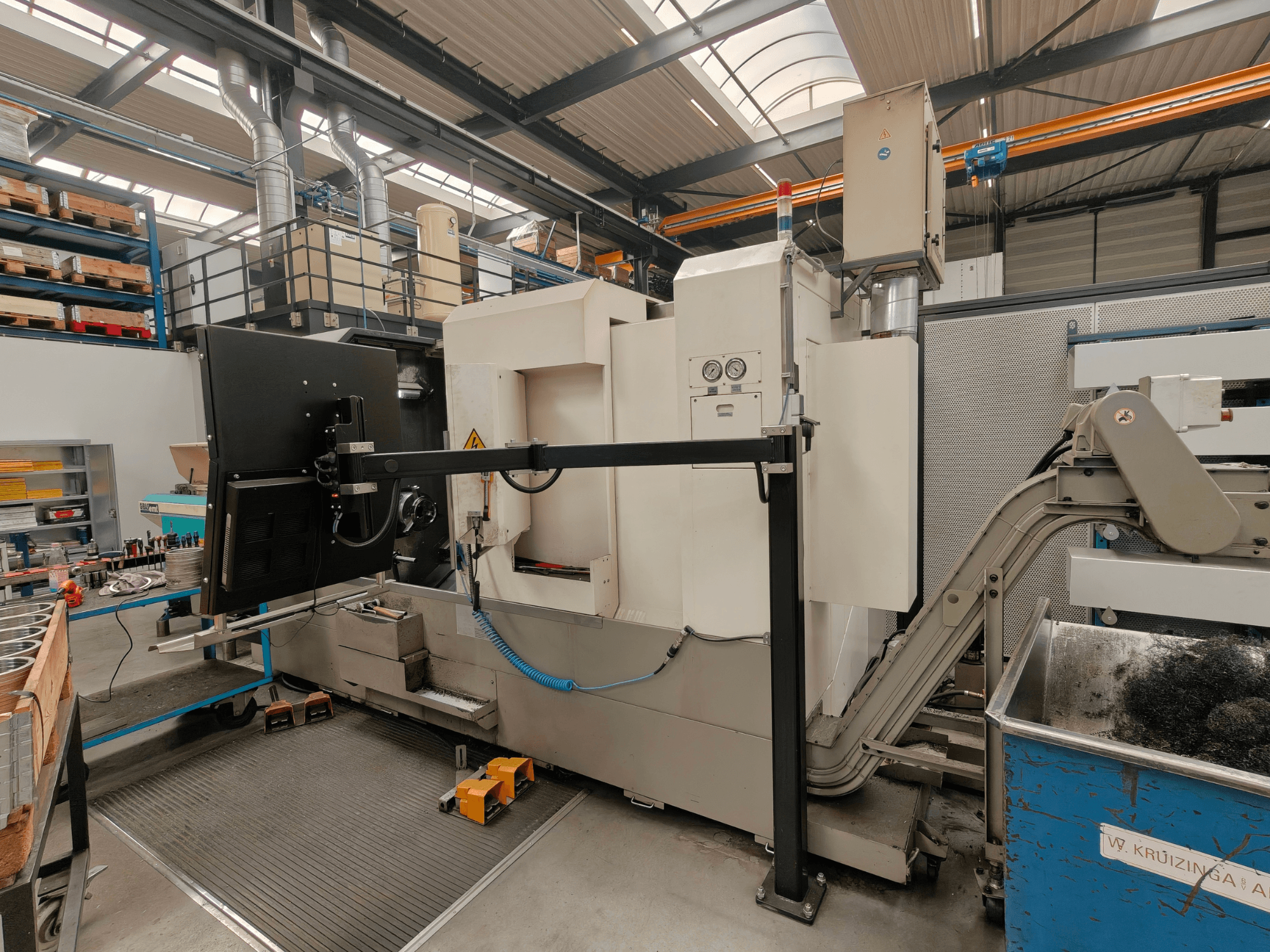

Victor Vturn A26 horizontal turning machine, side view, featuring control panel, chip conveyor, and industrial workspace.
Victor Vturn A26 horizontal turning machine, side view, featuring control panel, chip conveyor, and industrial workspace.

Victor - Vturn A26NL-TUR-VIC-2010-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis Victor Vturn A26 was manufactured in 2010. It features a maximum turning diameter of 381 mm and a standard turning diameter of 294 mm. The machine is equipped with a turret that holds 12 tools and has a rapid feedrate of 24 m/min. If you are looking to get high-quality turning capabilities, consider the Victor Vturn A26 horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: Victor
  • year: 2010
  • MODEL: Vturn A26
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • Available from: 01/04/2026
  • control unit brand: FANUC

Technical Information - Victor Vturn A26

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 18i-TB

Additional Information

  • Swing over bed: 900 mm

  • Swing over carriage: 700 mm

  • Between centers: -

  • Max. turning dia.: 381 mm

  • Std. Turning dia.: 294 mm

  • Bar capacity: 75 mm

  • Spindle nose (chuck): A2-8(10")

  • Spindle bore: 86 mm

  • Bearing inside dia.: 130 mm

  • Sub-spindle Max. spindle speed: 4500 rpm

  • Sub-spindle Spindle nose (chuck): A2-5(6")

  • Sub-spindle Spindle bore: 52 mm

  • Sub-spindle Bearing inside dia.: 90 mm

  • Sub-spindle C axis least unit: 0.001 deg

  • Turret No. of tools: 12

  • Turret Tool shank size: 25 mm

  • Turret Max. boring bar dia: 40 mm

  • Turret Exchange time (T-T): 0.2 sec

  • Turret Milling axis speed: 3000 rpm

  • Tailstock Quill dia.: -

  • Tailstock Quill taper: -

  • Tailstock Quill stroke: -

  • Rapid feedrate: X/Z/B : 24/24/12 m/min

  • Cutting feedrate: X/Z : 0~1260 mm/min

  • Spindle motor: 15/18.5 KW

  • Sub-spindle motor: 5.5/7.5 Kw

  • Feed servo motor: X/Z/B : 3.0/4.0/3.0 KW

  • Milling motor: 4.0 KW

  • Tank capacity: 410 L

  • Power: 45 kva

Additional equipment

  • Chips conveyor type: Chain type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
