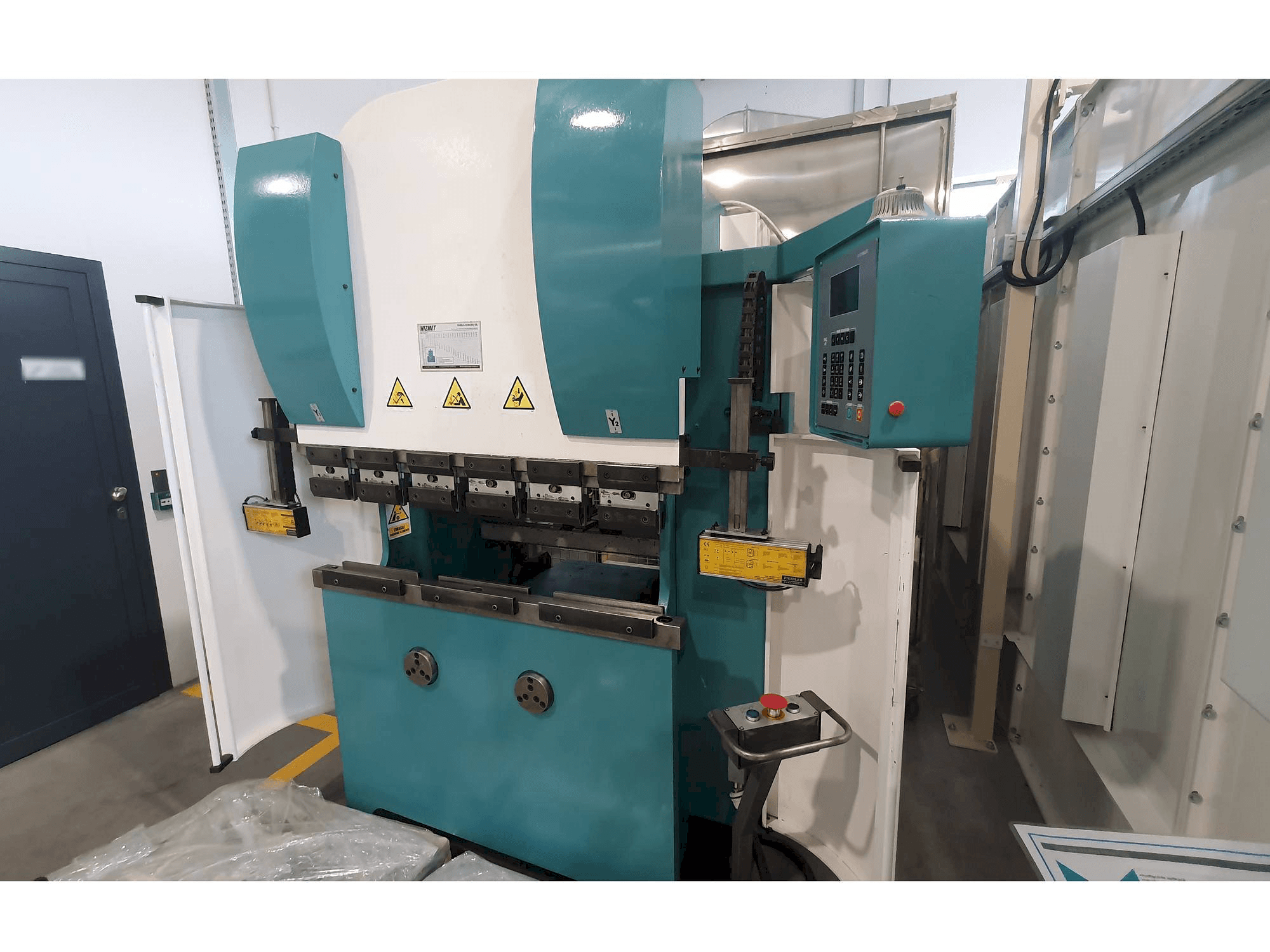

Vimercati PHSY 30X1250
Vimercati - PHSY 30X1250
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Vimercati PHSY 30X1250 Bending machine
This Vimercati PHSY 30X1250 Bending machine was built in the year 2006. It has been working for 10900 hours. This machine is equipped with a Cybelec DNC 60 control unit. It operates with a maximum bending length of 1250 mm. This machine is in very good working condition ready for tests.
Overview
- brand: Vimercati
- year: 2006
- MODEL: PHSY 30X1250
- production hours: 10900
- application type: Bending
- Location: Poland
- machine type: Bending machines
- availability: Sold
- control unit brand: Cybelec
- GINDUMAC ID: PL-BEN-VIM-2006-00001
Technical Information
General Data
- Measurements width: 2100 mm
- Measurements depth: 1300 mm
- Measurements height: 2300 mm
- Machine weight: 2800 kg
Control Unit
- Brand: Cybelec
- Model: DNC 60
Media
- Main electronic connection: 380V / 50 Hz
- Power consumption: 4 kW
Additional Equipment
- - 1 set of standard tools
Additional Information
- Technical Machine Benefits:
- - Maximum bending length: 1250 mm
- - Maximum opening height (y axis): 373 mm
- - Back gauge (x axis): 450 mm
- - Motor power: 4 kw
- - Table height for work : 940mm
- - Distance between columns (y1-y2): 1000mm
- - Technical condition: very good
- - Front supports for bending: none
- - Rear bumper distance adjustment (x axis): servo drive
- - Beam adjustment (y axis): servo drive
- Qualitative Machine Benefits:
- - Back gauge adjustment (z axis): manual, back gauge height adjustment (r axis): cnc-program
- - Type of punch and die holders: amada quick-action fastener
- - Safety photocells
- - Side safety devices
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
