VULCAN VMC 610L

Photo Gallery

SOLD

VULCAN - VMC 610L

2020

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

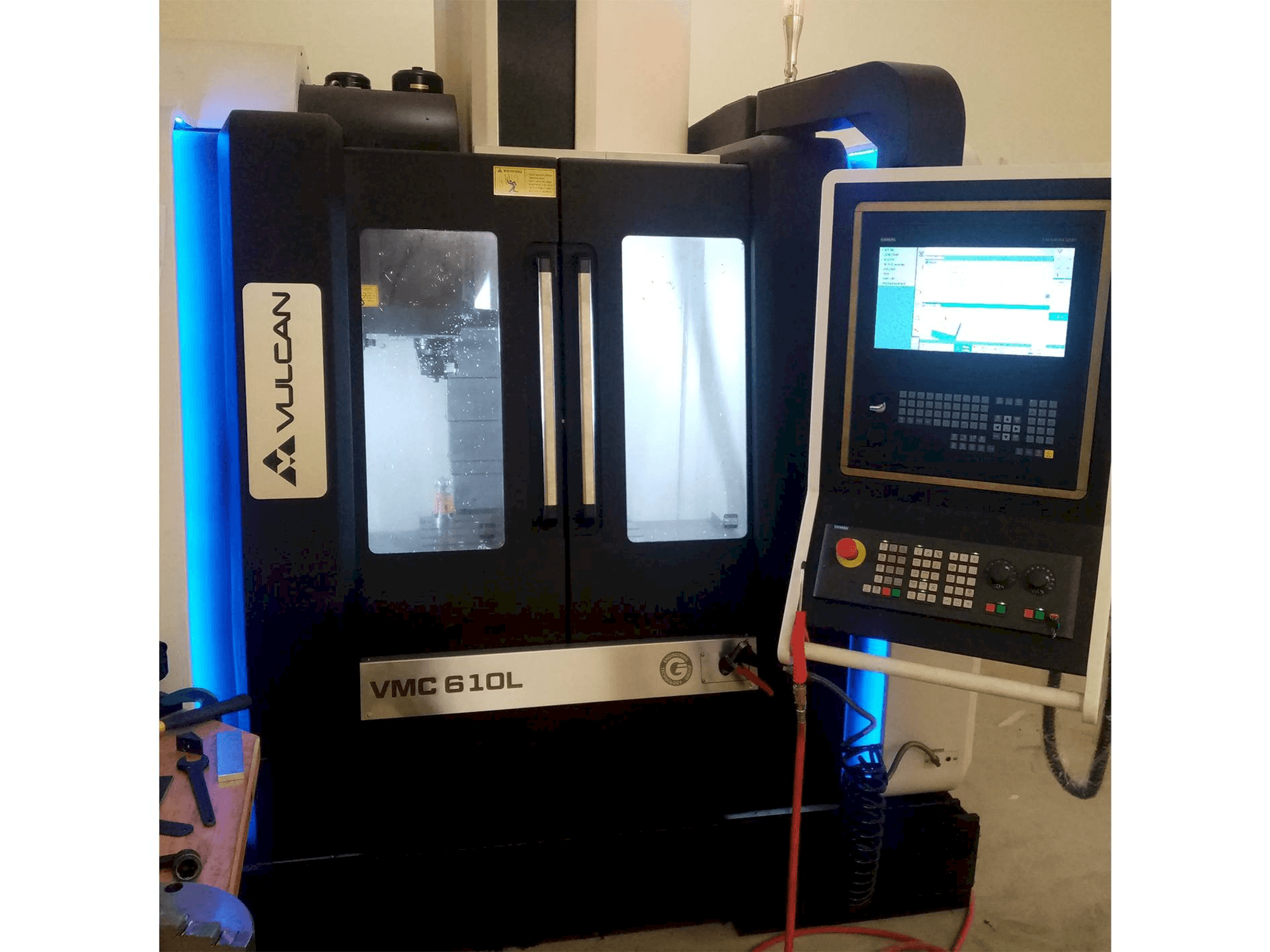

VULCAN VMC 610L Vertical machining center

This VULCAN VMC 610L Vertical machining center was manufactured in the United Kingdom in 2020. It is equipped with a Siemens 828D / Conversational control unit. This 3 axis machine operates with a spindle speed up to 10000 rpm. Includes toolbox and tools, a spindle air blast and lubrication system with alarm.

Overview

brand: VULCAN
year: 2020
MODEL: VMC 610L
application type: Milling
Location: Ireland
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Siemens
GINDUMAC ID: IE-MIL-VUL-2020-00001

Technical Information

General Data

Measurements width: 3283 mm
Measurements depth: 1852 mm
Machine weight: 4500 KG

Control Unit

Brand: Siemens
Model: 828D / Conversational

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5.5 / 5.7 kW
Tool taper: No. 40 (big plus)
Number of axis: 3

Movement

X-AXIS Movement: 610 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 32 m/min

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 400 KG

Tools

Slots in storage: 24 (tool swing arm)
Type of tool holder: BBT

Media

Main electronic connection: 3 x 415V / 50Hz
Power consumption: 30 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle centre to column: 130 - 580 mm
- - T-slots (no. X width x pitch): 4 x 18 x 75 mm
- - Belt spindle
- - Tool selection: bi-directional
- - Coolant tank capacity: 256 l
- - Compressed air req. (min. ): 5. 5 - 6. 5 kg/cm²
- - Shop mill conversational programming
- - Heat exchanger
- - Lubrication system with alarm
- - Led worklamps x 2 set
Qualitative Machine Benefits:
- - Fully enclosed splash guard
- - Levelling blocks
- - Toolbox and tools
- - Usb interface
- - Spindle oil chiller (integrated in the machine guarding)
- - Spindle air blast
- - Flushing wash system
- - Mpg hand wheel
- - 20 bar through spindle coolant
- - Belt type chip conveyor with overflow type coolant tank

Extra information

- -Air and coolant gun -Built in coolant nozzles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
