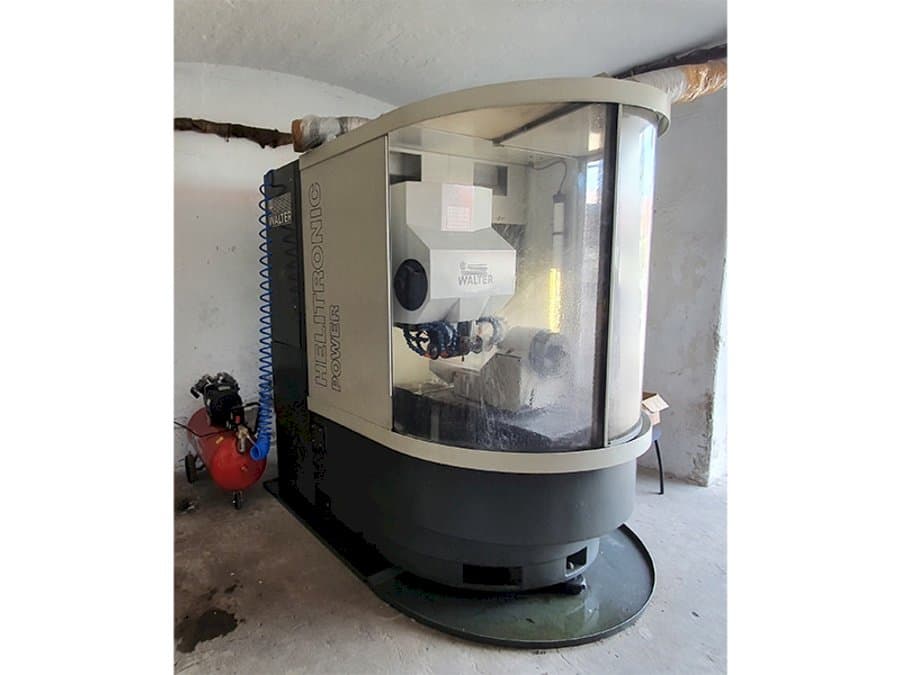

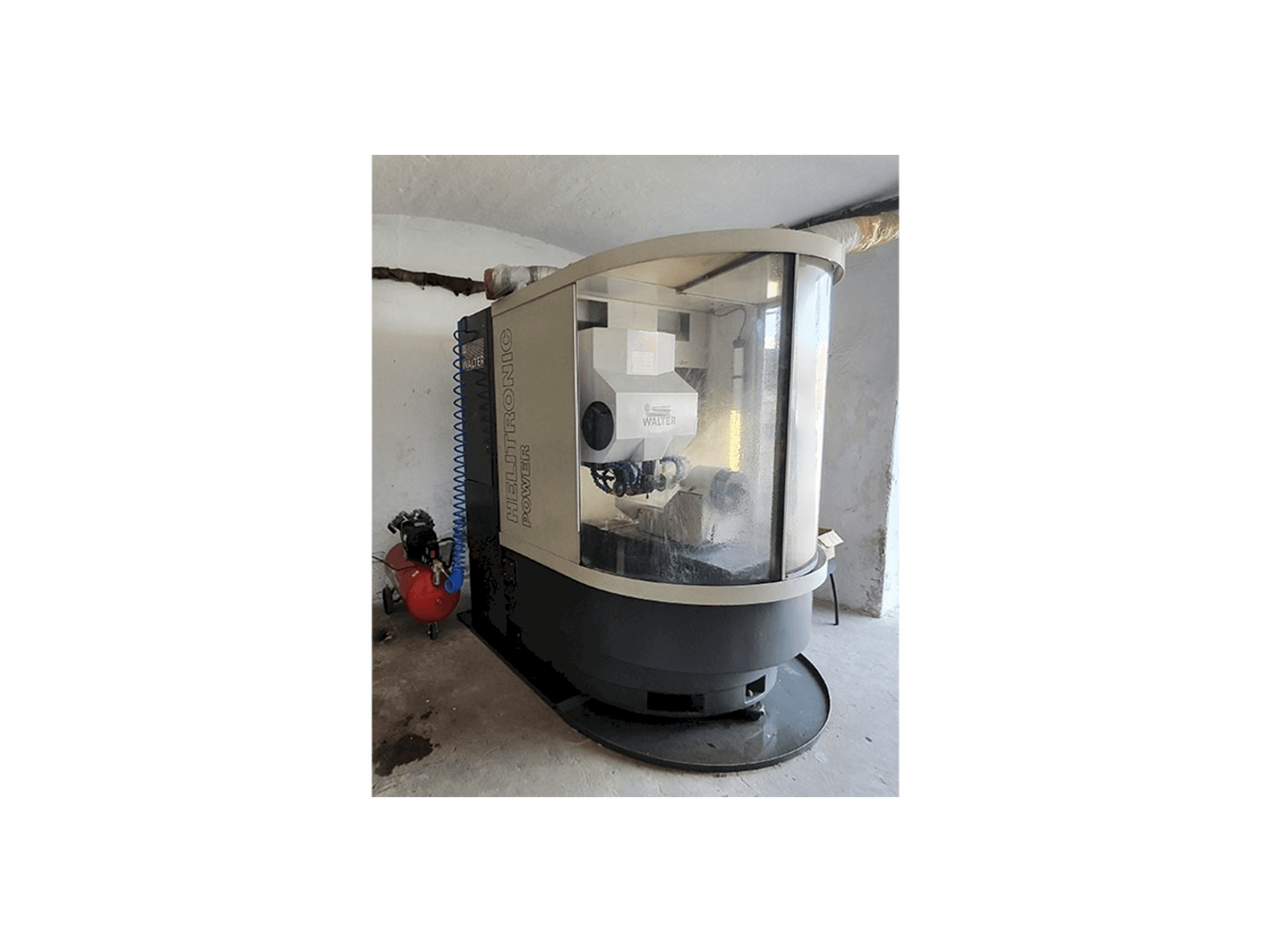

Front view of Walter Helitronic Power machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

WALTER Helitronic Power

Photo Gallery

WALTER - Helitronic PowerPL-GRI-WAL-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Walter Helitronic Power Grinding Machine - Used

This Walter Helitronic Power Grinding Machine was manufactured in Germany in 1996. It has been working for 41423 hours. This 5 axis machine is operated through a WALTER HMC 400 WWM control unit. It can work with a spindle speed up to 10500 rpm. Machine in good working condition, ready for tests. Full documentation available.

Overview

brand: WALTER
year: 1996
MODEL: Helitronic Power
application type: Grinding
Location: Poland
machine type: Cylindrical Grinding Machine

Technical Information - WALTER Helitronic Power

Dimensions

Machine Depth: 1420 mm
Machine Height: 2150 mm
Machine Weight: 3100 kg

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 250 mm
Z-axis Travel: 580 mm

Technical Specification

Spindle Speed: 10500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Center height: 130 / 165 mm
Grinding spindle dia. : 70 mm
Max grinding wheel dia. : 200 mm
Workpiece holder iso 50
Spindle motor power 4. 4 kw/ 3000 rpm, 4. 2 kw/ 6000 rpm
Control unit with 14” screen
Machine in good working condition, ready for tests
Full documentation available

Technical Machine Benefits

X / y / z - axes resolution: 0. 0001 mm
X / y / z - axes speed: 15 m/min
A - axis rotation of workpieces: 360 degrees/endless
A - axis resolution: 0. 0001 deg.
A - axis rotation speed: 120 rpm
A - axis max workpiece dim. : 190 mm
C - axis max length of rotary table: 300 mm
C - axis swivel range +/- 200 deg.
C - axis resolution: 0. 0001 deg.
C - axis speed: 120 deg/sec.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
