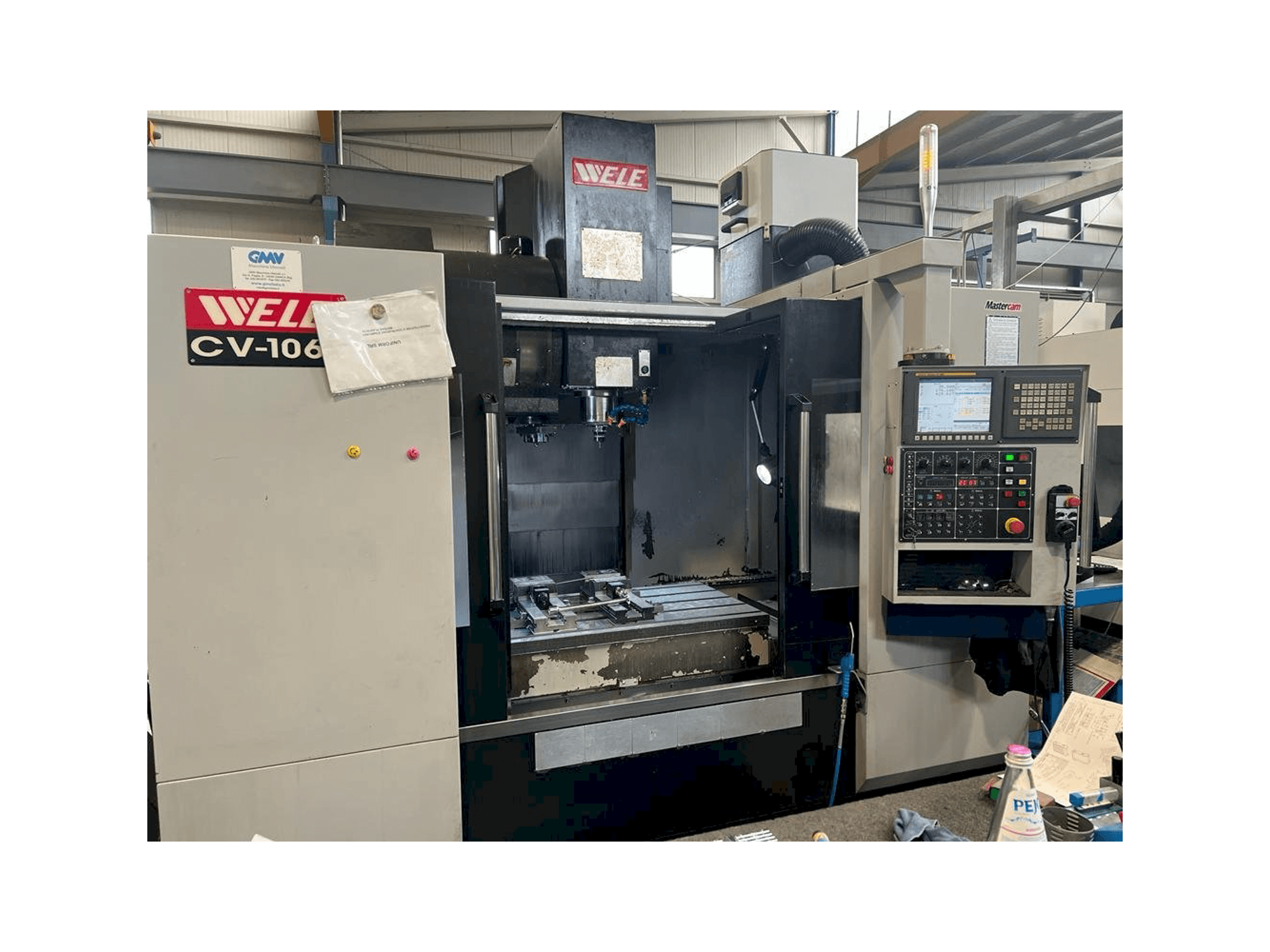

Front view of Wele									 CV 1060  machine

Wele - CV 1060IT-MIL-WEL-2016-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This WELE CV 1060 Vertical Machining center was manufactured in the year 2016 in China. It is equipped with a Fanuc Series Oi MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.


  • brand: Wele
  • year: 2016
  • MODEL: CV 1060
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: FANUC

Technical Information - Wele CV 1060

General Data

  • Measurements width: 3550 mm
  • Measurements depth: 2400 mm
  • Measurements height: 2800 mm
  • Machine weight: 5500 kg

Control Unit

  • Brand: FANUC
  • Model: Series Oi MD

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 7.5KW
  • Tool taper: BT40
  • Number of axis: 3


  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 600 mm


  • Outer length: 1150 mm
  • Outer width: 600 mm


  • Slots in storage: 24

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance from spindle nose to table: 105 - 705mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
