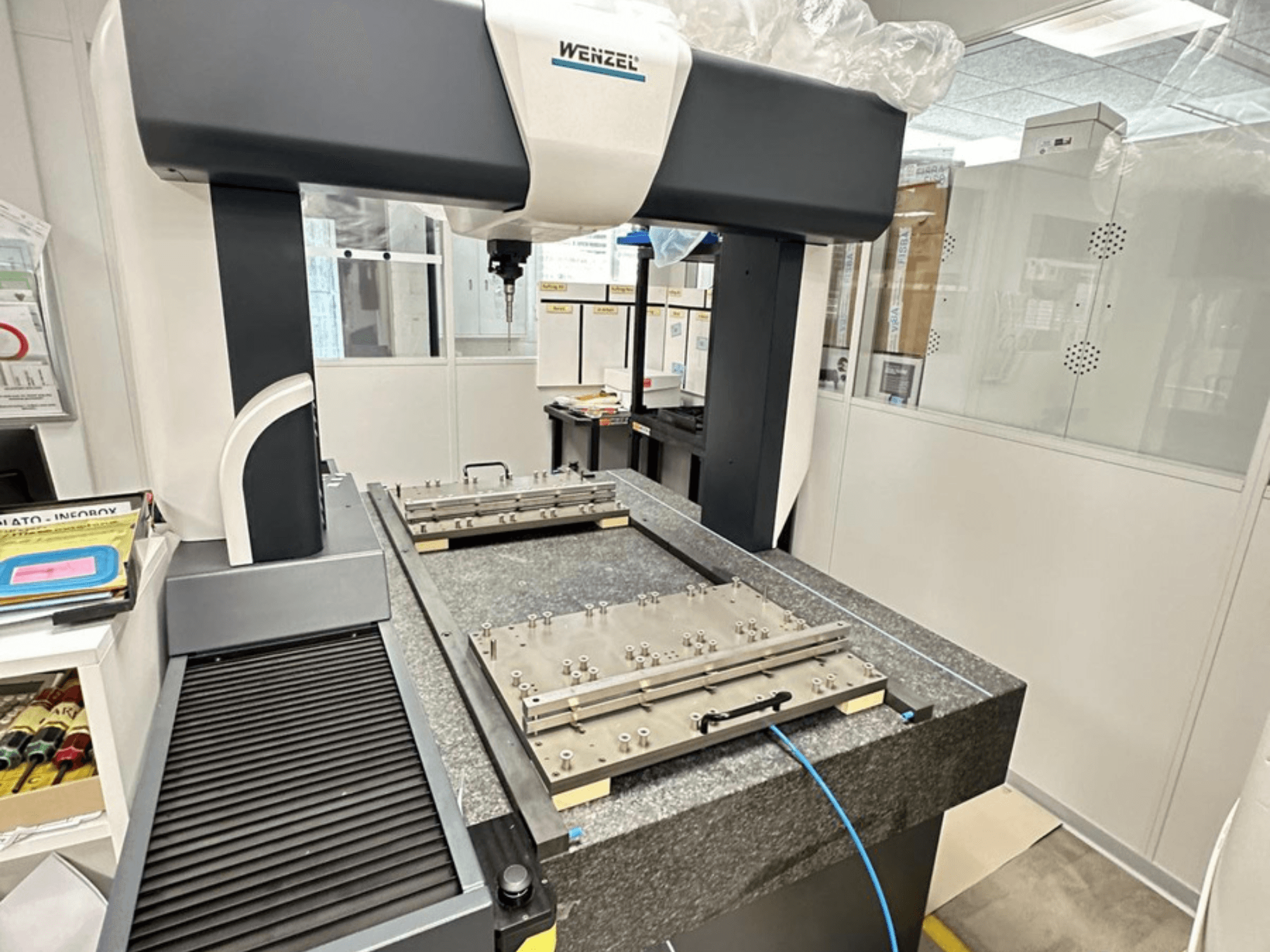

Wenzel LH 65 CMM in a laboratory setting, displaying a granite base with adjustable measuring platform and overhead arm.
Wenzel LH 65 CMM in a laboratory setting, displaying a granite base with adjustable measuring platform and overhead arm.

Wenzel - LH 65AT-MEA-WEN-2018-00001

40,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Wenzel LH 65 was manufactured in 2018. It features a measuring range of 650 × 750 × 500 mm and includes a Renishaw PH6M probe head with a TP200 probe. The machine is equipped with online temperature compensation and active vibration damping for enhanced precision. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH 65 CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Wenzel
  • year: 2018
  • MODEL: LH 65
  • application type: Measuring
  • Location: Austria
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Wenzel LH 65

Movement

  • Number of Axes: 3
  • X-axis Travel: 650 mm
  • Y-axis Travel: 750 mm
  • Z-axis Travel: 500 mm

Additional Information

Technical Data

  • Measuring Range (X × Y × Z): 650 × 750 × 500 mm

  • Accuracy Standard: DIN EN ISO 10360

  • Accuracy Class: Premium

  • Temperature Range: 18 °C – 22 °C

  • Maximum Temperature Gradient: 1 K/h

  • Maximum Temperature Gradient: 1 K/m

  • Maximum Temperature Gradient: 2 K/day

  • Probe Head: Renishaw PH6M

  • Probe: Renishaw TP200

  • Probe Module: Standard Force (SF)

  • Probe Interface: PI200-3

  • Probe Ball Diameter: Ø 4 mm

  • Probe Extension: 50 mm

  • Probe Extension: 100 mm

  • Adapter: PAA1

  • PFTU, MPE: 1.6 µm

  • E0, MPE: 1.6 + L/350 µm (L in mm)

  • E150, MPE: 1.6 + L/350 µm (L in mm)

  • R0, MPL: 1.6 µm

  • Standard Module

  • Stylus: 4 × <30 mm

  • Base Plate: Natural Hard Stone (Granite)

  • Incremental Measuring System

  • Online Temperature Compensation

  • Active Vibration Damping

  • Control Unit: WENZEL Evaluation System CNC

  • Hand Controller: HT400

  • Evaluation Station

  • WENZEL PC System

  • German Keyboard

  • Fujitsu TFT Monitor 24" E24T-7 Pro

  • HP DeskJet A4 Inkjet Printer

  • WENZEL Machine Documentation (USB)

  • Metrokey USB (Dongle)

  • WM | QUARTIS GEO

  • WM | QUARTIS STEP

  • Ethernet Interface

  • RS232 Interface

  • Readerhead Input (5V TTL)

  • Probe Input (5V TTL)

  • Motor Connections

  • Emergency Stop Interface

Additional Equipment

  • Renishaw PH6M multiwire probe head with automatic coupling

  • Renishaw TP200 probe with SF module

  • PI200-3 interface

  • Ø 4 mm stylus

  • 50 mm stylus extension

  • 100 mm stylus extension

  • PAA1 adapter

  • Connection cable

  • 1/3 HU mounting bracket

  • Wooden storage case

  • 18-piece stylus kit

  • M2 rotary joint

  • M2 stylus holder

  • Hex keys

  • Pin wrenches

  • Type B ceramic reference sphere Ø 25 mm

  • Sphere holder

  • Calibration certificate for reference sphere

  • 70 mm extension

  • Microfilter for oil, water and particle filtration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
