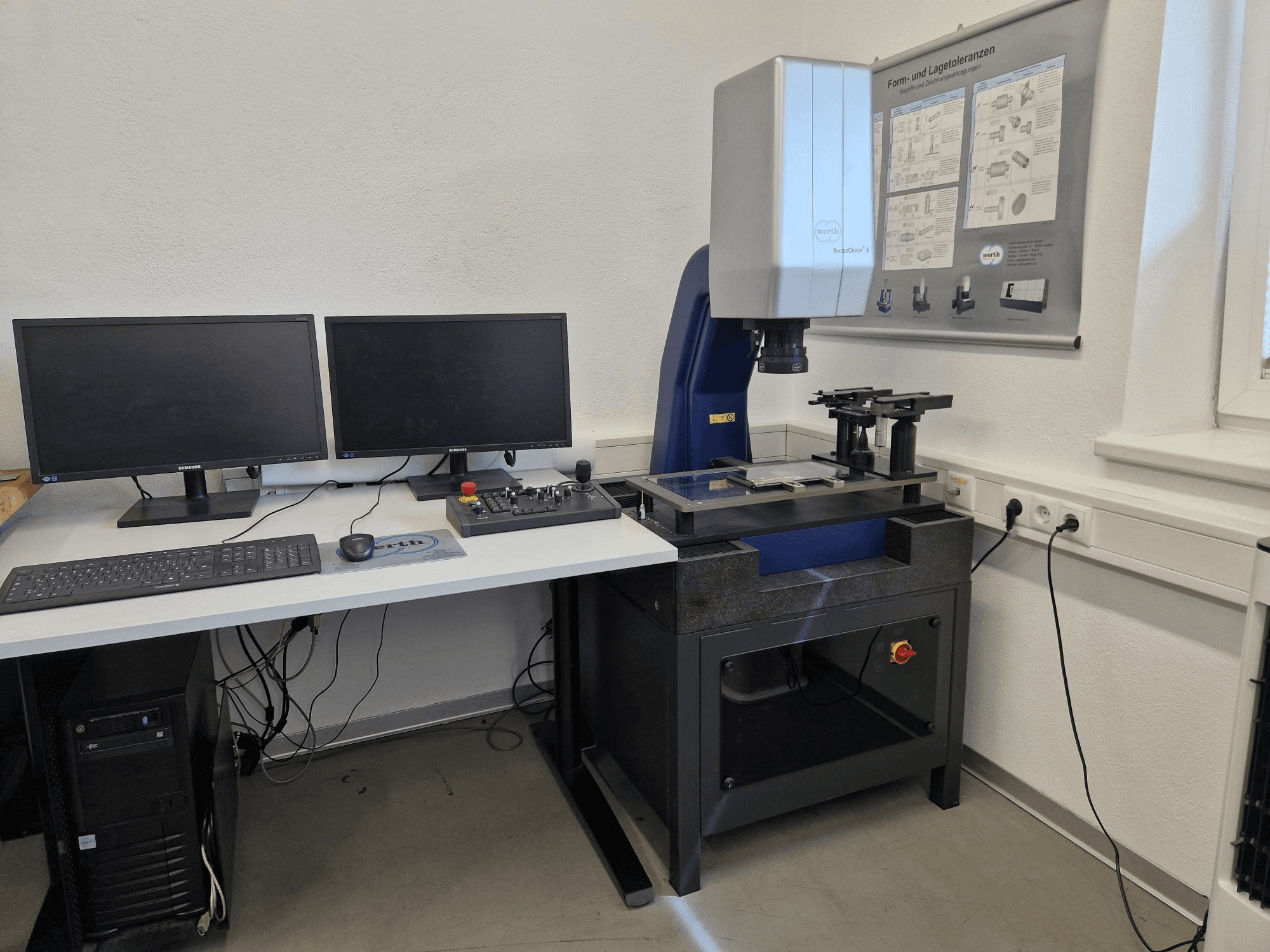

This 3-axis Werth Scopecheck 300S was manufactured in 2021. It features a measuring range of 300 mm x 200 mm x 200 mm and a resolution of 0.1 µm. The machine includes a multisensor concept with optical, scanning multi-probe, and laser sensor capabilities. If you are looking to get high-quality measurement capabilities, consider the Werth Scopecheck 300S CMM machine we have for sale. Contact us for further details.
Overview
- brand: Werth
- year: 2021
- MODEL: Scopecheck 300S
- production hours: 100
- application type: Measuring
- Location: Austria
- machine type: Coordinate Measuring Machine (CMM)
- control unit brand:
Technical Information - Werth Scopecheck 300S
Dimensions
- Machine Height: 1664 mm
- Machine Length: 737 mm
- Machine Weight: 260 kg
- Machine Width: 750 mm
- Table Load: 20 kg
Movement
- X-axis Travel: 300 mm
- Y-axis Travel: 200 mm
- Z-axis Travel: 200 mm
Additional Information
- Table Load: 20 kg max (8 kg for specified accuracy)
- Resolution: 0.1 µm
- Sensors: Multisensor concept (Optical, Scanning multi-probe, Laser Sensor Probe WLP)
- Accuracy (MPE E1xy): (1.5 + L/200) µm (with 3D geometry correction)
- Operating Voltage: 115-230V AC ±10%
- Power Consumption: approx. 400 VA
- Software: WinWerth 3D with 3D CAD Bundle, Bestfit Light, Raster Scanning, and Online Statistics
- Included Components: PC system, 2 monitors, parking station, and flexible change system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
