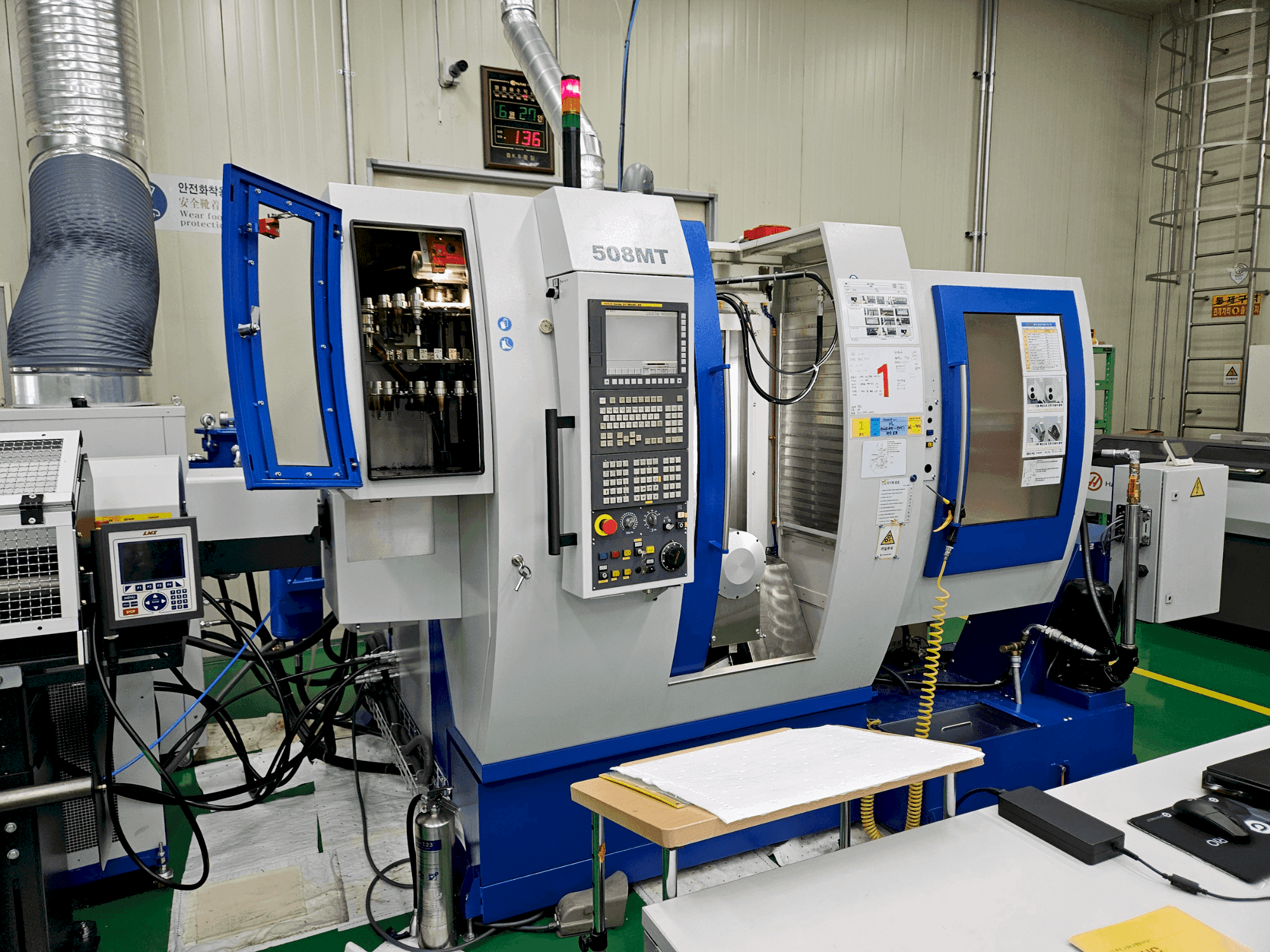

This WILLEMIN-MACODEL 508MT lathe was manufactured in 2016. It features a Fanuc 31iB5 control system, Renishaw TS27R, and a main milling spindle with a speed of 42K RPM. The tool taper is HSK-E40, complemented by a 48 ATC. It includes a chip conveyor, coolant chiller, hydraulic tank, and a bar-feeder from LNS model Sprint 564 S2. A great opportunity to buy this WILLEMIN-MACODEL 508MT lathe. Contact us for further details regarding this lathe.
Overview
- brand: WILLEMIN-MACODEL
- year: 2016
- MODEL: 508MT
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - WILLEMIN-MACODEL 508MT
Control Unit
- Model: 31iB5
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 42000 RPM 1/MIN
- Tool taper: HSK-E40
Movement
- X-AXIS Movement: 450 mm
- Y-AXIS Movement: 200 mm
- Z-AXIS Movement: 425 mm
- A-AXIS Movement: 0.0001 mm
- B-AXIS Movement: -45˚ to +115˚ MM
- C-AXIS Movement: 0.0001 degree MM
Media
- Chip conveyor: Yes
Additional Equipment
- - Renishaw TS27R
- - Linear scale: X, Y, Z axis
- - Various automation systems
- - Lower turret
- - Coolant chiller
- - Hydraulic tank
- - Bucket
- - Bar-feeder (Brand: LNS, Model: Sprint 564 S2)
- - Tower lamp
Additional Information
- Technical Machine Benefits:
- - High spindle speed, precision measurement, and automation capabilities.
- Qualitative Machine Benefits:
- - High-quality machining, reliable operation.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
