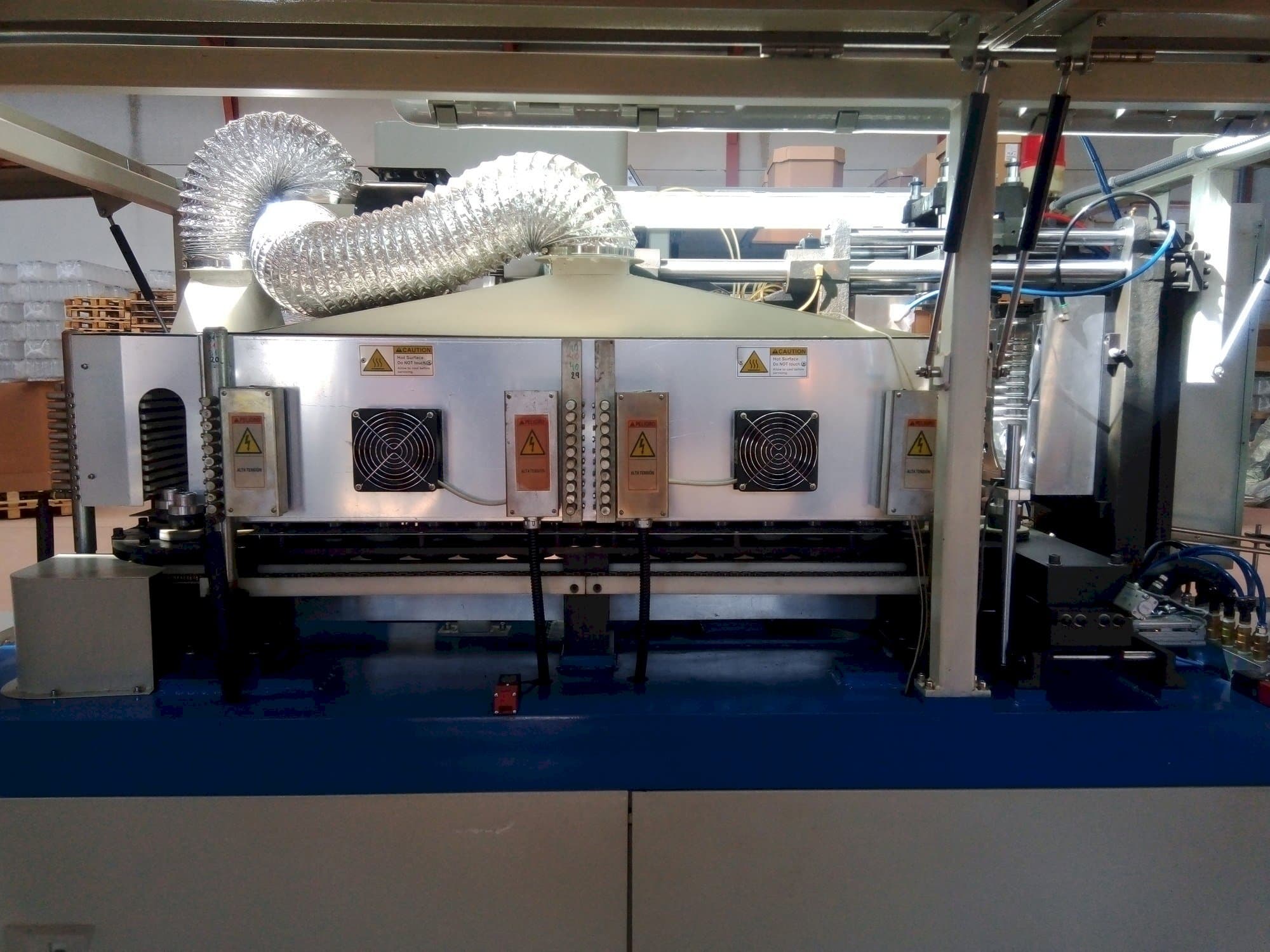

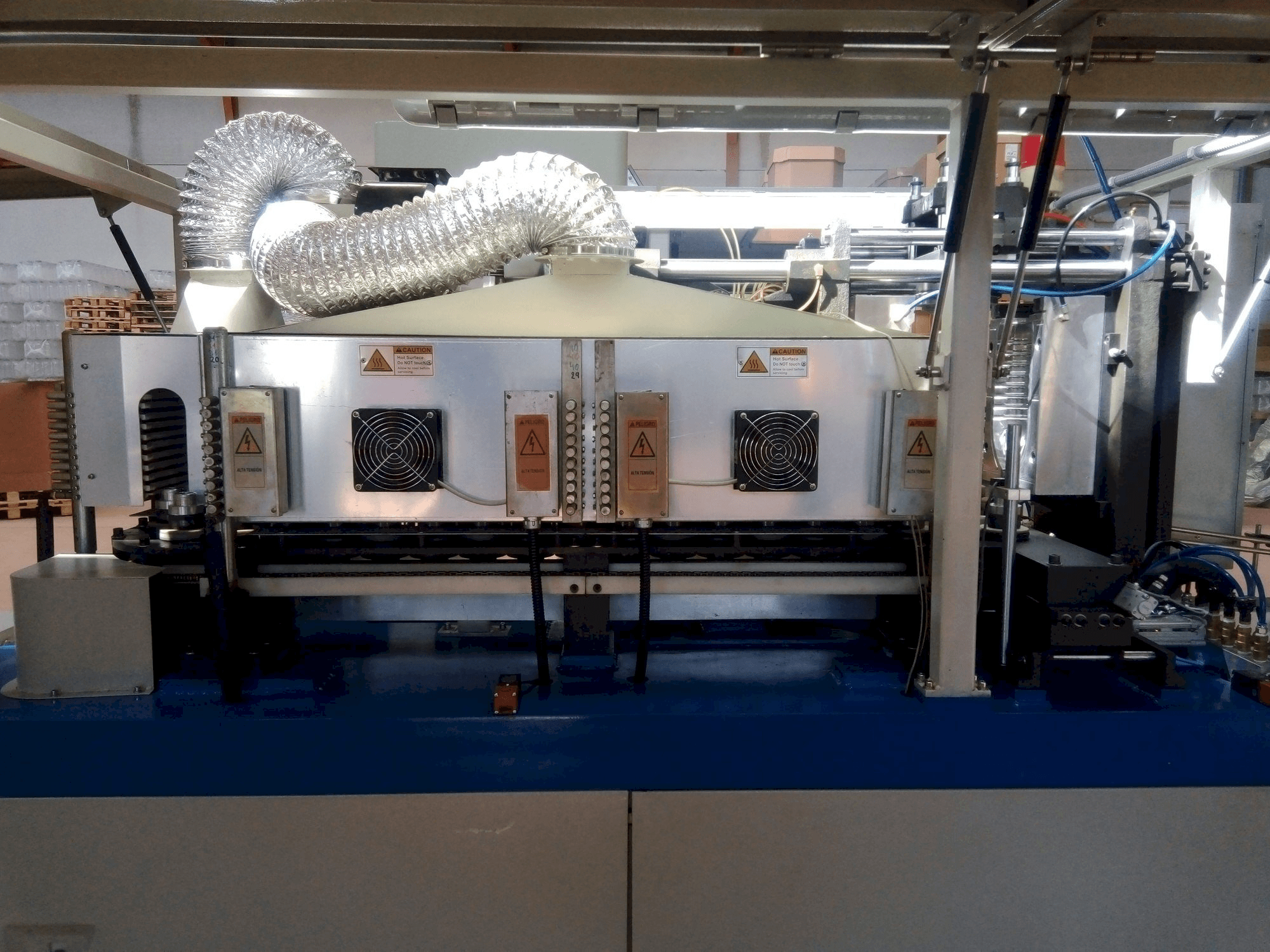

This YANCED YS600 Blow Moulding Machine was manufactured in the year 2015 in Spain. The machine has a clamping force of 180 kN.
Overview
- brand: YANCED
- year: 2015
- MODEL: YS600
- application type: Blow Molding
- Location: Spain
- machine type: Blow Moulding Machine
Technical Information - YANCED YS600
Dimensions
- Machine Depth: 1200 mm
- Machine Height: 1900 mm
- Machine Weight: 2000 kg
Technical Specification
- Clamping Force: 180 kN
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Total installed power 33 kw
- Operating pressure 0. 8 mpa
- Blowing pressure 3. 2 mpa
- Cooling water temp. 10-12 °c
- Cooling water flow rate 30 l/min
- Cooling water pressure 0. 3-0. 5 mpa
Technical Machine Benefits
- Maximum mould opening 230 mm
- Max. Mould width 260 mm
- Stretching stroke 453 mm
- Mould bottom stroke 60 mm
- Number of cavities 1
- Max. Container volume 5 ltr.
- Container neck diameter 015-080 mm
- Maximum container diameter 200 mm
- Maximum container height 350 mm
- Heating power 30 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
