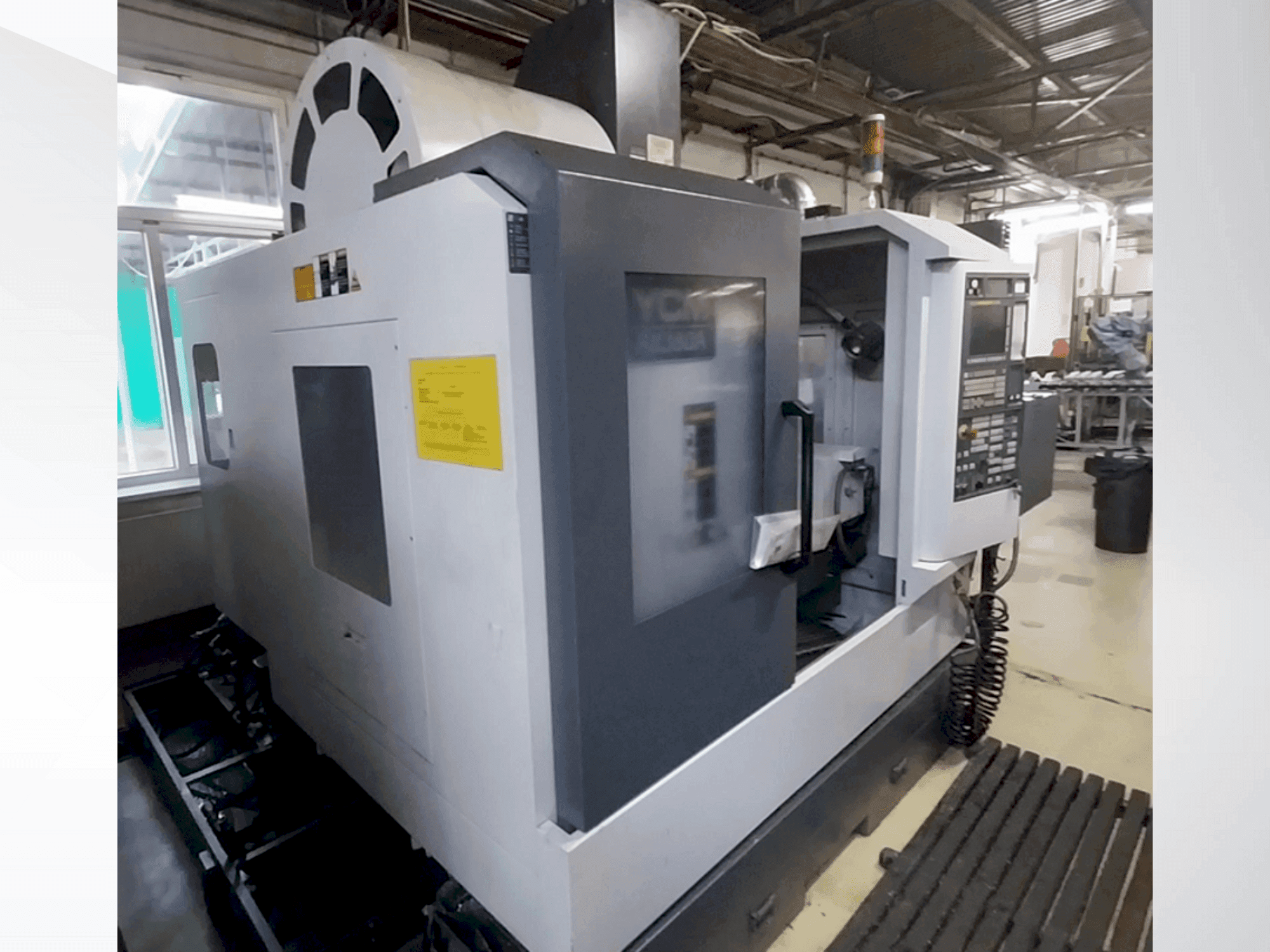

Front view of YCM FX380A  machine

YCM - FX380AHU-MIL-YCM-2018-00001

73,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis YCM FX380A vertical machining center was manufactured in 2018. It features a high-speed IDD spindle at 12,000 RPM and a MAS-BT40 taper. Equipped with a 30-slot drum tool magazine and a robust 240-liter coolant system, it ensures efficient machining with a table load capacity of 200kg. The spindle supports cooling through the tool with a 20-bar pressure. Ideal for complex machining tasks, the YCM FX380A machine we have for sale. Contact us for more information. There are 2 equal units available.

Overview

  • brand: YCM
  • year: 2018
  • MODEL: FX380A
  • production hours: 38656
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - YCM FX380A

Control Unit

  • Model: MXP-200FC
  • Brand: FANUC

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: MAS-BT40

Movement

  • X-AXIS Movement: 700 mm
  • Y-AXIS Movement: 520 mm
  • Z-AXIS Movement: 480 mm

Table

  • Table load: 200 kg
  • Max punching diameter: 380

Turret

  • Max tool length: 280 mm
  • Number of tool slots: 30

Media

  • Oil water separator: Yes
  • Chip conveyor: Yes

    Additional Equipment

    • - ATC 30 tool magazine
    • - Coolant system with 240 liter tank
    • - High pressure cooling pump MTH2-40

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cooling through the spindle/tool ​​with a pressure of 20 bar
        • - Spindle cleaning with air blowing
        • - Spindle loyalty system
        • - Built-in air cooling
        • - Built-in connection for pneumatic/hydraulic actuation
        • - Clamping unit, 2xin/2xout
        • - Plc modification: simultaneous tightening and loosening of a/c axes for cycle time optimization adjustability if the x and y axes do not move when changing tools
        • - Active cooling of electric cabinet
        • - Automatic central oiling with oil level monitoring
        • - Work space completely paved
      • Qualitative Machine Benefits:
        • - Workplace lighting lamp
        • - Working status indicator light
        • - Documentation: english
        • - 2 equal units available.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
