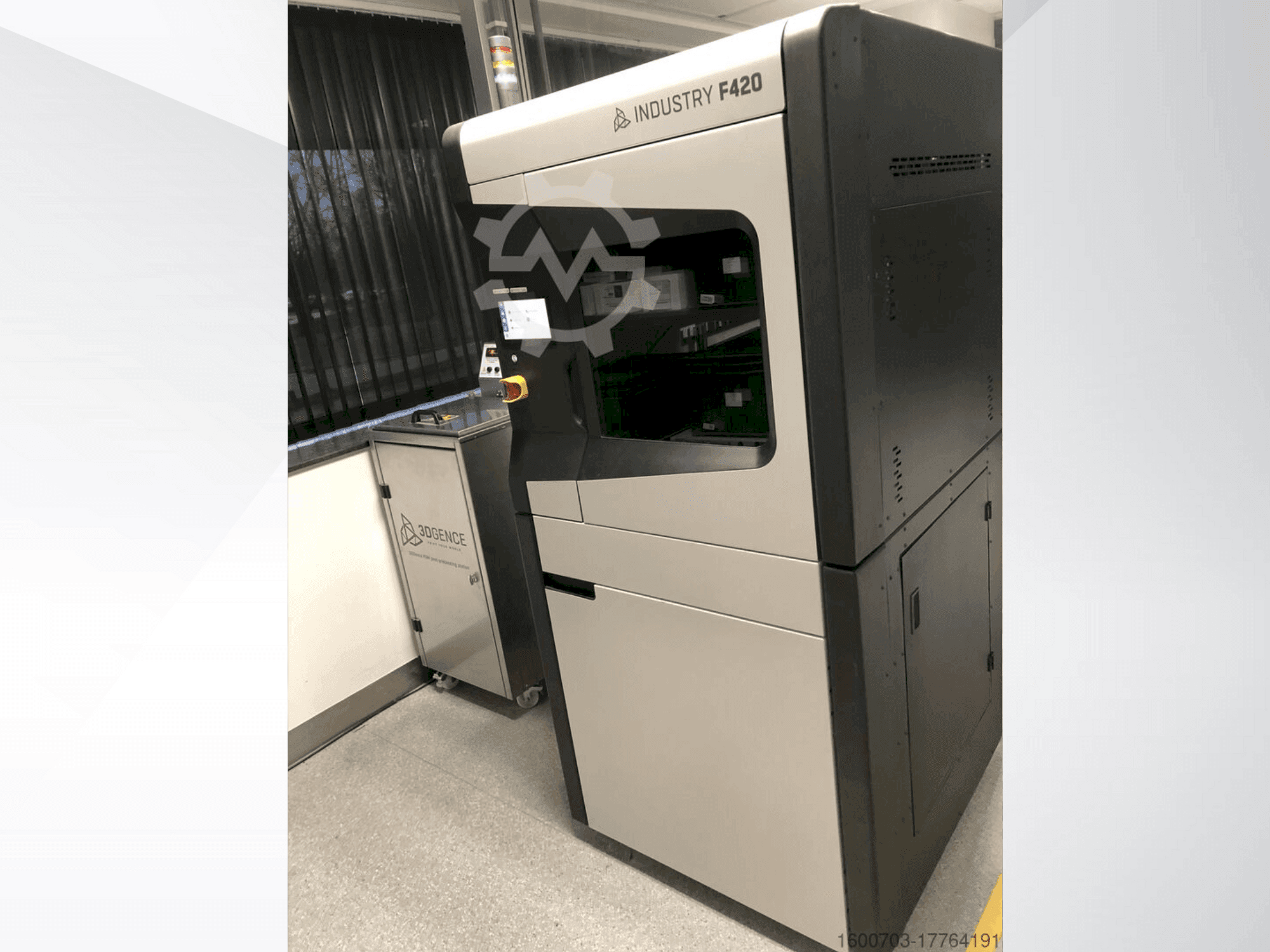

3DGENCE - Industry F420NL-3DP-3DG-2021-00001

Additional Equipment

• - Double extrusion head per print module, equipped with a cleaning system for the print head to print complex geometry with soluble support.
• - 3 print modules with different temperature specifications specially developed for the different materials.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Print module movement speed (max): 1000 mm/s
  • - Print speed (max): 400 mm/s
  • - Filament chamber: space for 4 individual filament rolls with an automatic changing system
  • - Working chamber: 380 × 380 × 420 mm (60 648 cm3)
  • - Layer thickness: 50µm
  • - Filament diameter: 1. 75mm

Extra information

• - Control Unit Communication: Ethernet, Wi-Fi, USB Controller Voltage: 230V 1ph with 32A connection (3n+p+e) IEC 60309 Power Consumption (max): 4600 W Power Consumption (avg): 1500 W Workpiece Print material: PLA, ABS, ASA, PA-CF, PC, PC-ESD, ULTEM, PEEK, PEEK-CF Support material: soluble support material ESM-10, HIPS Tools Technology: Fused Filament Fabrication (FFF) Print head temperature (max): 500°C Print bed temperature (max): 180°C Working chamber temperature (max): 180°C Filament chamber temperature: 50°C Part accuracy: 0.125mm or 0.0014mm/mm, whichever is greater
