FORMLABS - Fuse 1AT-3DP-FOR-2021-00001

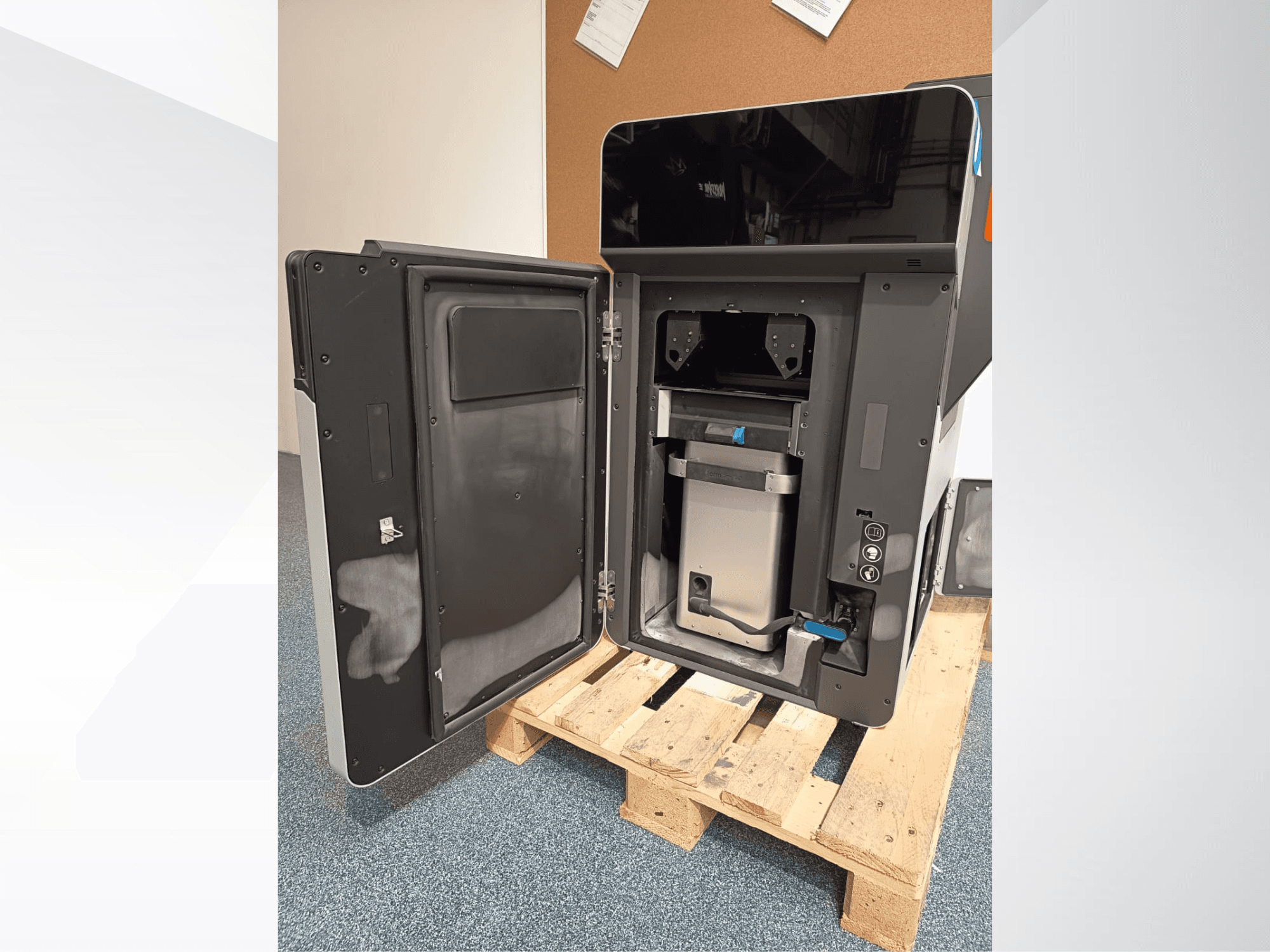

Formlabs Fuse 1

• Build Volume 165 x 165 x 300 mm 6.5 x 6.5 x 11.8 in

• Layer Thickness 110 microns 0.004 in

• Build Speed 10 mm per hour 0.39 in per hour

• Laser Type Ytterbium Fiber

• Laser Spot Size 200 microns 0.0079 in

• Material Refresh Rate 30 to 50 percent

• Hopper Capacity 8.5 kg PA12 nylon 18.7 lb

• Dimensions 685 x 645 x 1065 mm

• Maximum Part Size 15.9 x 15.9 x 29.5 cm 6.3 x 6.3 x 11.6 in

• Minimum Access Dimensions 125.5 x 149.5 x 187.0 cm 49.4 x 59.0 x 73.6 in

• Printer Dimensions 64.5 x 68.5 x 107 cm 165.5 cm with stand

• Weight 114 kg

• Startup Time 60 minutes

• Operating Environment 18 to 28 degrees Celsius 68 to 82 Fahrenheit less than or equal to 30 percent humidity

• Internal Temperature 200 degrees Celsius 392 Fahrenheit

• Temperature Control Quartz tube heating elements PTC cartridges

• Air Handling pressure controlled two stage filtration HEPA and carbon

• Power Requirements EU 230 VAC 7.5 A US 120 VAC 15 A

• Galvanometers Formlabs custom

• Laser Wavelength 1065 nm

• Laser Power maximum 10 watts

• Beam Divergence 4.01 mrad

• Laser Class Class 1

• Connectivity WiFi 2.4 GHz Ethernet 1000 Mbit USB 2.0

• Touchscreen 10.1 inch 1280 x 800

• Control Brand Formlabs

• The display is damaged however this does not affect the function

Fuse Sift

OPTIONAL: Fuse Sift price on request

• Fuse Sift Dimensions 99.1 × 61.0 × 188.8 cm 39.0 × 24.0 × 61.8

• Fuse Sift Weight 93 kg without build chamber or powder 205 lb

• Build Chamber Dimensions 27.9 × 34.2 × 48.9 cm 11.0 × 13.5 × 19.3 in

• Build Chamber Weight 11 kg 17.6 kg full with 20 percent packed powder 24.3 lb 38.8 lb

• Build Volume 16.5 × 16.5 × 30.0 cm 6.5 × 6.5 × 11.8 in

• Fresh Powder Hopper Capacity 8.5 kg Nylon 12 18.7 lb

• Used Powder Hopper Capacity 9.1 kg Nylon 12 20 lb

• Air Filtration Technology replaceable HEPA filter

• Operating Environment 18 to 26 degrees Celsius 68 to 80 Fahrenheit less than or equal to 30 percent humidity

• Air Handling negatively pressurized hood with replaceable HEPA filter independent venting system

• Power Requirements EU 230 VAC 7.5 A dedicated circuit US 120 VAC 15 A dedicated circuit

• Power Requirements high power vacuum EU 230 VAC 10 A US 120 VAC 20 A

• Vacuum Requirements auxiliary vacuum with static dissipative grounded components

• Sound Emission maximum 76.5 dB
