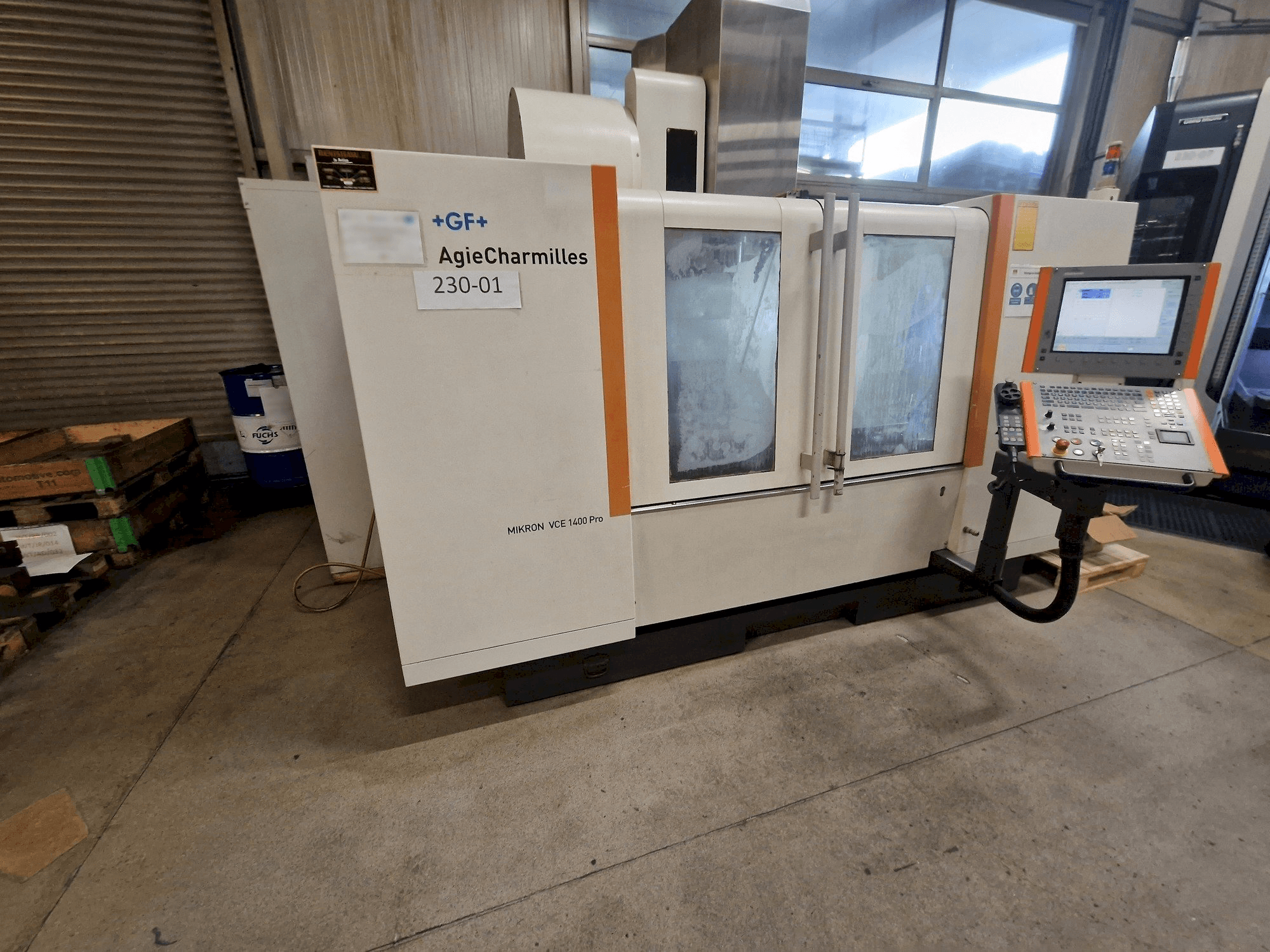

Left side view of AgieCharmilles MIKRON VCE 1400 PRO  machine

AgieCharmilles MIKRON VCE 1400 PRO

AgieCharmilles - MIKRON VCE 1400 PRO

2009

55,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This AgieCharmilles MIKRON VCE 1400 PRO Vertical machining center was manufactured in the year 2009 in Switzerland and has 30978 hours, of which 13309 are spindle hours. It is equipped with Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 100 - 10000 rpm, and includes a RENISHAW 3D IR Measuring Probe MP12, Tool measuring probe 3D TS27, and a Set of tool holders as additional equipment, is in very good condition and well maintained.

Overview

  • brand: AgieCharmilles
  • year: 2009
  • MODEL: MIKRON VCE 1400 PRO
  • production hours: 30978
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: PL-MIL-AGI-2009-00001

Technical Information

General Data

  • Measurements width: 3420 mm
  • Measurements depth: 3250 MM
  • Measurements height: 2790 mm
  • Machine weight: 8700 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530

Main drive

  • Spindle speed range: 100 - 10000 1/MIN
  • Spindle motor power: 12/18 kW
  • Tool taper: BT 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1400 mm
  • X-AXIS Rapid traverse: 24 m/min
  • Y-AXIS Movement: 650 mm
  • Y-AXIS Rapid traverse: 24 m/min
  • Z-AXIS Movement: 675 mm
  • Z-AXIS Rapid traverse: 20 m/min

Table

  • Outer length: 1400 mm
  • Outer width: 620 mm

Tools

  • Slots in storage: 24
  • Max weight: 6 kg
  • Max tool length: 305 mm

Media

  • Main electronic connection: 3x400V / 50-60 Hz

    Additional Equipment

    • - RENISHAW 3D IR Measuring Probe MP12
    • - Tool measuring probe 3D TS27
    • - Set of tool holders

    Additional Information

      Machine Benefits

      • Qualitative Machine Benefits:
        • - The machine is in very good working condition, well maintained, ready for tests.
        • - The machine spindle was fully refurbished and has been in operation for around 2000 hours since then.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance
