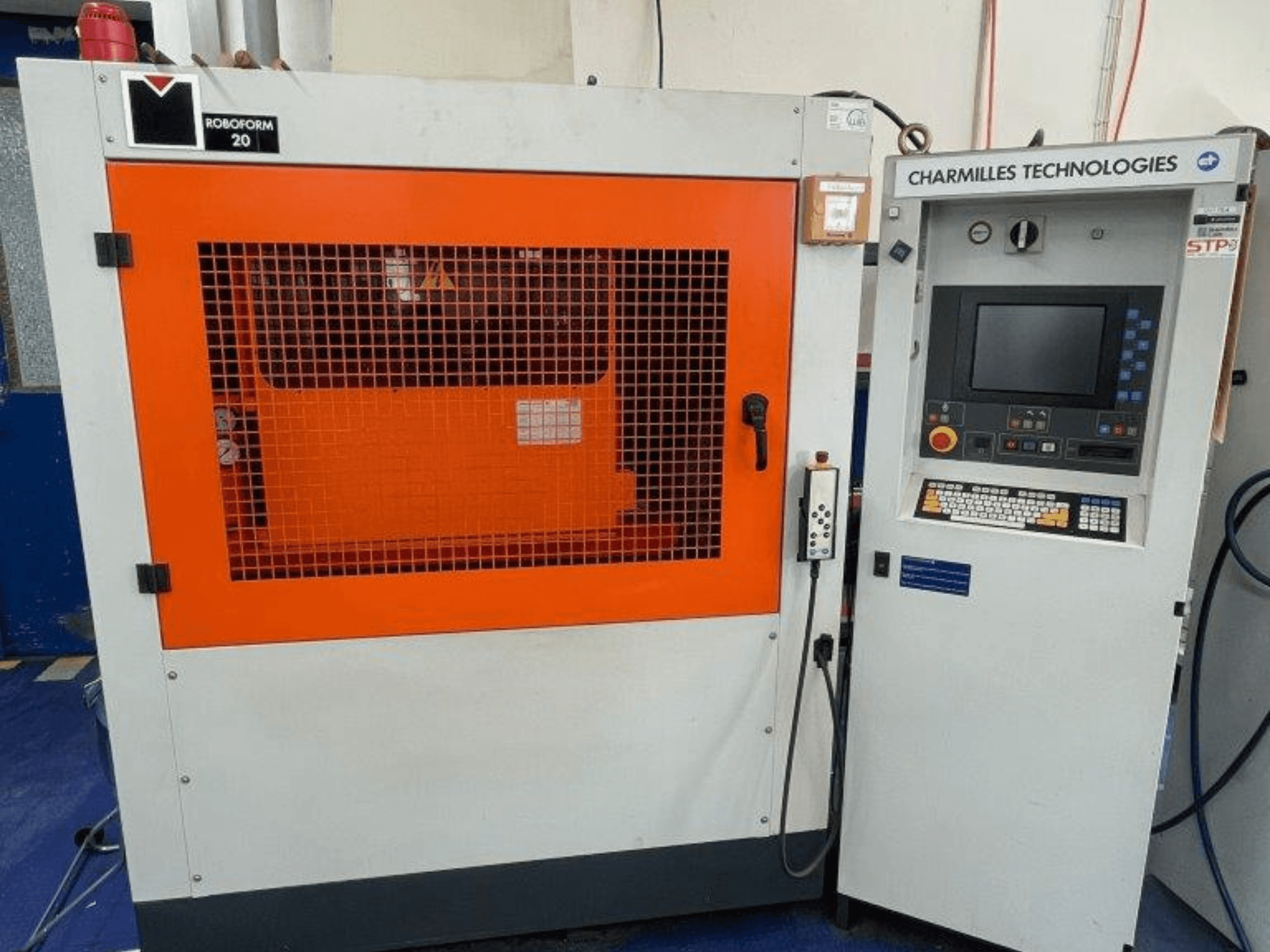

AgieCharmilles Robofrom 20 die-sinking EDM machine, front view with control panel and orange protective grille.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AgieCharmilles Robofrom 20

Photo Gallery

AgieCharmilles - Robofrom 20DE-EDM-AGI-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles Robofrom 20 For Sale | gindumac.com

This 3-axis AgieCharmilles Robofrom 20 die-sinking EDM machine was manufactured in 1996. It features a maximum electrode weight of 25 kg and a table size of 397 x 300 mm. The machine has an impressive axis travel of X=300 mm, Y=250 mm, and Z=250 mm. If you are looking to get high-quality die-sinking capabilities, consider the AgieCharmilles Robofrom 20 machine we have for sale. Contact us for further details.

Overview

brand: AgieCharmilles
year: 1996
MODEL: Robofrom 20
production hours: 19166
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - AgieCharmilles Robofrom 20

Dimensions

Machine Height: 2320 mm
Machine Weight: 1030 kg
Machine Width: 1250 mm

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Additional Information

Machine bed material: Gray cast iron (Grauguss)
Max distance table to spindle:
- 455 mm (standard)
- 405 mm (Erowa ITS)
- 387 mm (System 3R / Hirschmann)
- 392 mm (Mecatool)
Max electrode weight: 25 kg (without changer)
Table size (W x D): 397 x 300 mm
Max workpiece weight: 200 kg
T-slots: 3 slots, 12 mm width, 100 mm spacing
Measurement resolution: 1 micrometer
Work tank useful dimensions (H x W x D): 345 x 740 x 520 mm
Dielectric tank dimensions (H x W x D): 530 x 975 x 750 mm
Dielectric capacity: 200 liters (approx. 180 kg)
Filtration system: 3 paper filter inserts
Max machining current: 32 A (optional 64 A)
Input voltage: 3-phase 380/400/420 V, 50 Hz
Installed power: 3 kVA (5 kVA with 64 A option)
Compressed air: 6–8 bar
Cooling water flow: 6 liters/minute
Visual hours: 19,166

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
