AIDA NC 1-150
AIDA - NC 1-150
1990
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AIDA NC 1-150 Stamping Machine

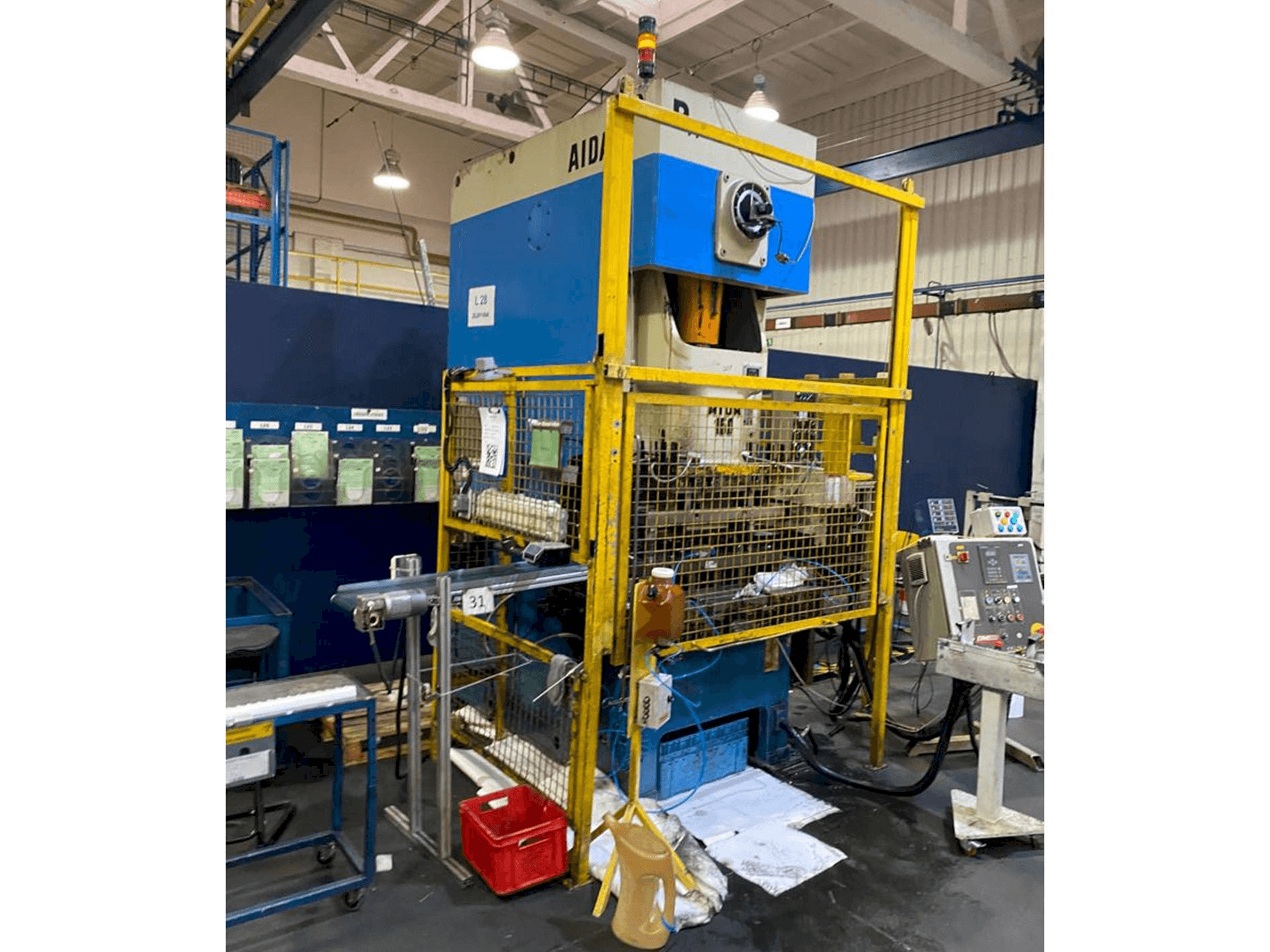

This AIDA NC 1-150 Stamping Machine was built in 1990 in Japan. This machine incorporates a stamping force of 1500 kN and a stroke of 200 mm. It presents good conditions, as it has been regularly maintained.
Overview
- brand: AIDA
- year: 1990
- MODEL: NC 1-150
- application type: Stamping
- Location: Czech Republic
- machine type: Stamping Machine
- availability: Sold
- GINDUMAC ID: CZ-STA-AID-1990-00001
Technical Information
General Data
- Measurements width: 1370 mm
- Measurements depth: 2210 mm
- Measurements height: 3190 mm
- Machine weight: 15000 kg
Main drive
- Stamping force: 1500 kN
- Stroke: 200 mm
Table
- Outer length: 1170 mm
- Outer width: 760 mm
Additional Information
- Technical Machine Benefits:
- - Strokes per minute 30-55 spm
- - Die height 400 mm
- - Slide adjustment 100 mm
- - Slide area 700 x 580 mm
- - Main motor 11 kw
- - Feeding line (decoiler + straightener)
- Qualitative Machine Benefits:
- - Regularly maintained, good condition.
- - Machine manual available
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
