AIDA - NC1-150CZ-STA-AID-1991-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AIDA NC1-150 Stamping Machine

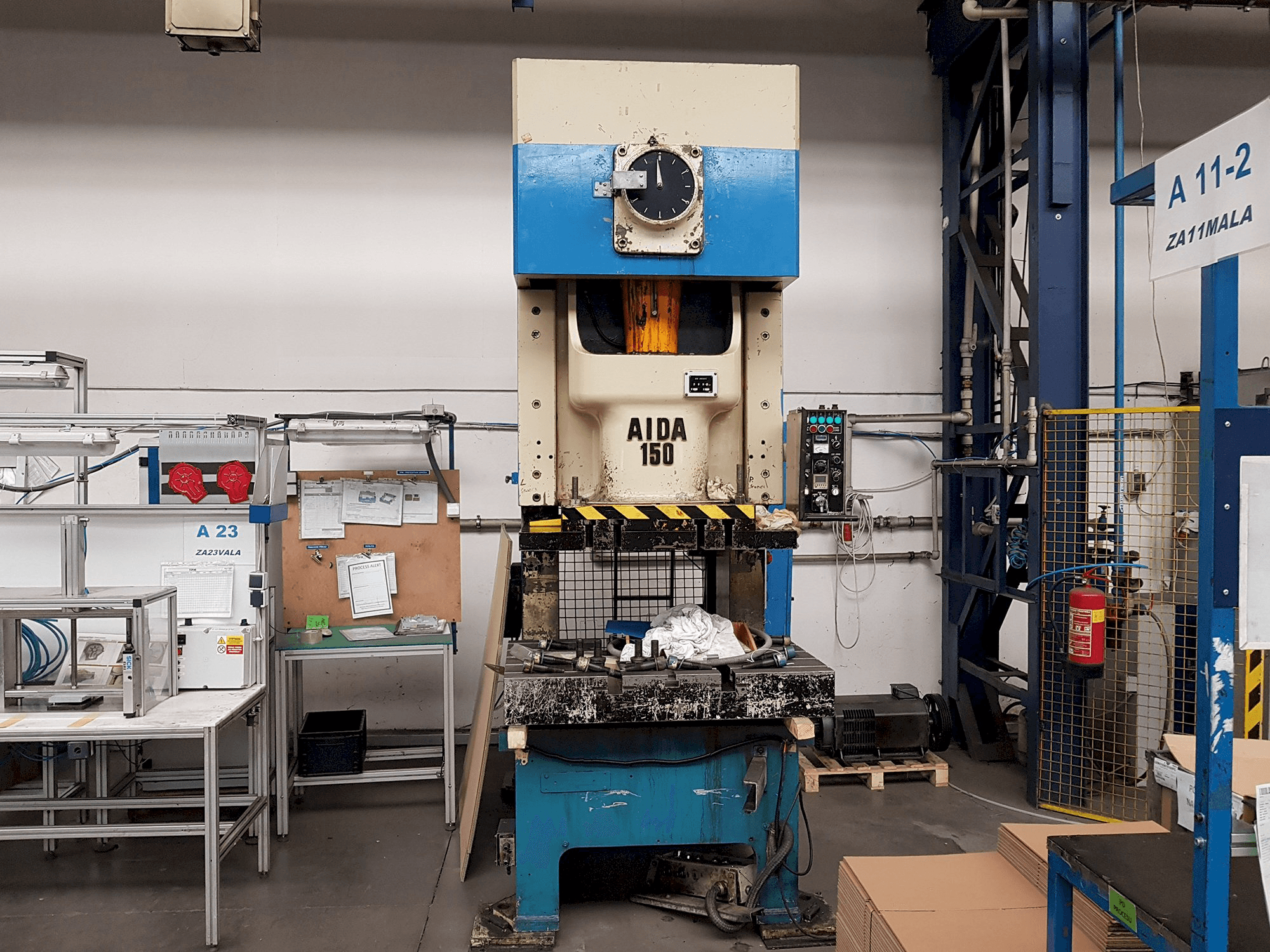

This AIDA NC1-150 Stamping Machine was made in 1991 in Japan. It can perform with a stamping force of 1500 kN and 30-55 strokes per minute.
Overview
- brand: AIDA
- year: 1991
- MODEL: NC1-150
- application type: Stamping
- Location: Czech Republic
- machine type: Mechanical Stamping Press
Technical Information - AIDA NC1-150
Dimensions
- Table Length: 1170 mm
- Table Width: 760 mm
Technical Specification
- Max. Stroke: 200 mm
- Stamping Force: 1500 Kn
Additional Information
Machine Benefits
Technical Machine Benefits
- Feeding line (decoiling + feeding equipment)
- Die height 400 mm
- Slide adjustment 100 mm
- Slide area 700 x 580 mm
- Main motor 11 kw
Machine History
Industries
Automotive, electro
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
