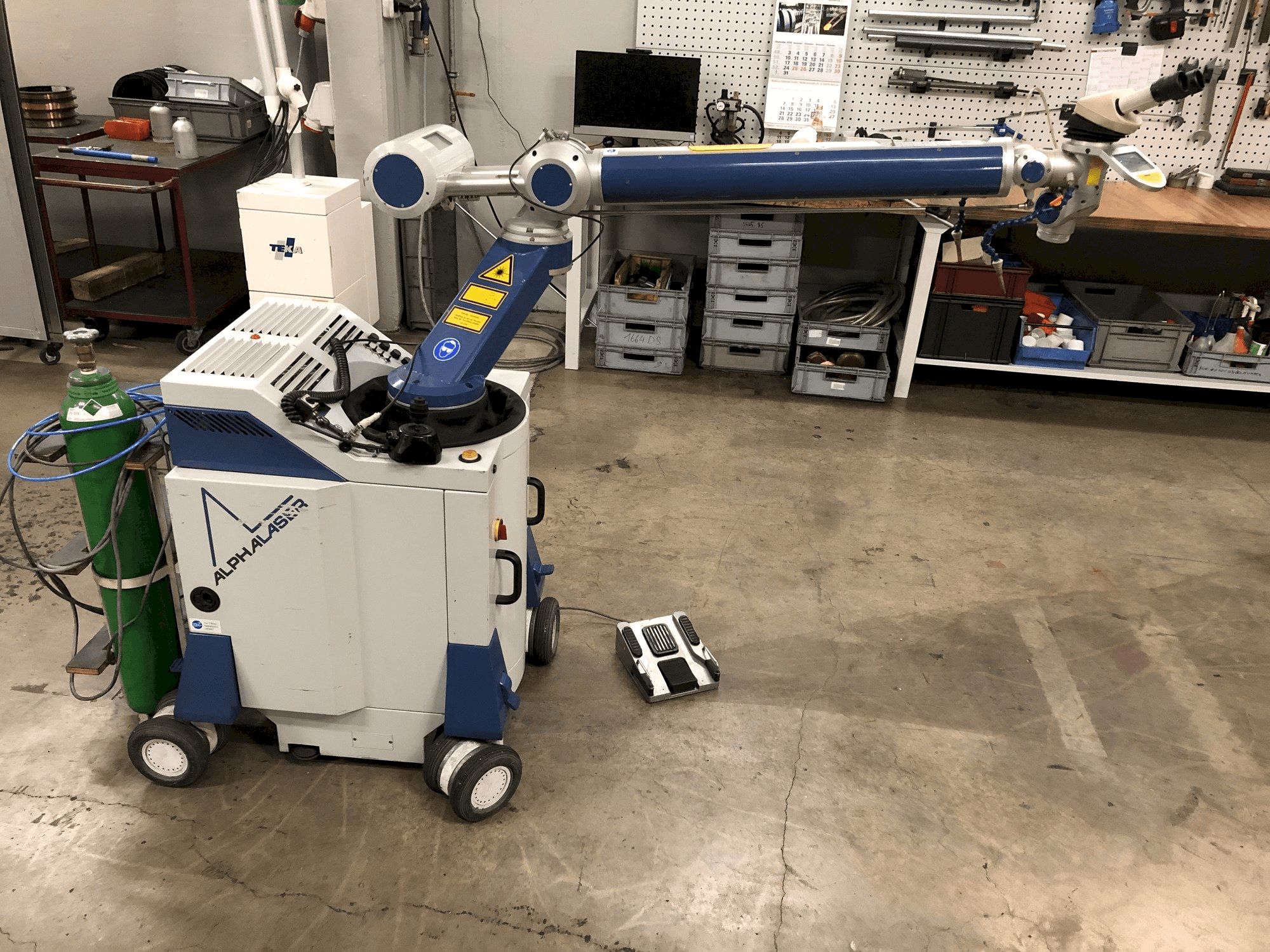

Left view of ALPHA LASER ALM 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ALPHA LASER ALM 200

Photo Gallery

ALPHA LASER - ALM 200DE-LAS-ALP-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
ALPHA LASER ALM 200 Laser Welding Machine

This ALPHA LASER ALM 200 Laser Welding Machine, which was manufactured in the year 2007 in Germany, can be operated through a joystick, semi-automatically or by remote control. This machine is control under user-specific operation with up to 39 data records, and its single pulse goes up to 100 Hz.

Overview

brand: ALPHA LASER
year: 2007
MODEL: ALM 200
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
availability: Sold

Technical Information - ALPHA LASER ALM 200

General Data

Measurements width: 1410 mm
Measurements depth: 730 mm
Measurements height: 1585 mm
Machine weight: 320 kg

Control Unit

Remote control: Yes

Main drive

Laserpower: 200 W KW
Pulse energy: 90 J

Movement

X-AXIS Movement: 145 mm
Y-AXIS Movement: 120 mm
Z-AXIS Movement: 1300 mm

Media

Main electronic connection: 3 x 400 V / 50-60 Hz / 3 x 16 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turn-and-tilt optics
- - Tiltable turntable with chuck for horizontal to vertical rotation
- - Remote control
- - Tv system for demonstrating and observing welding process

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
