Alpha laser ALV 150 SM Laser welding machine

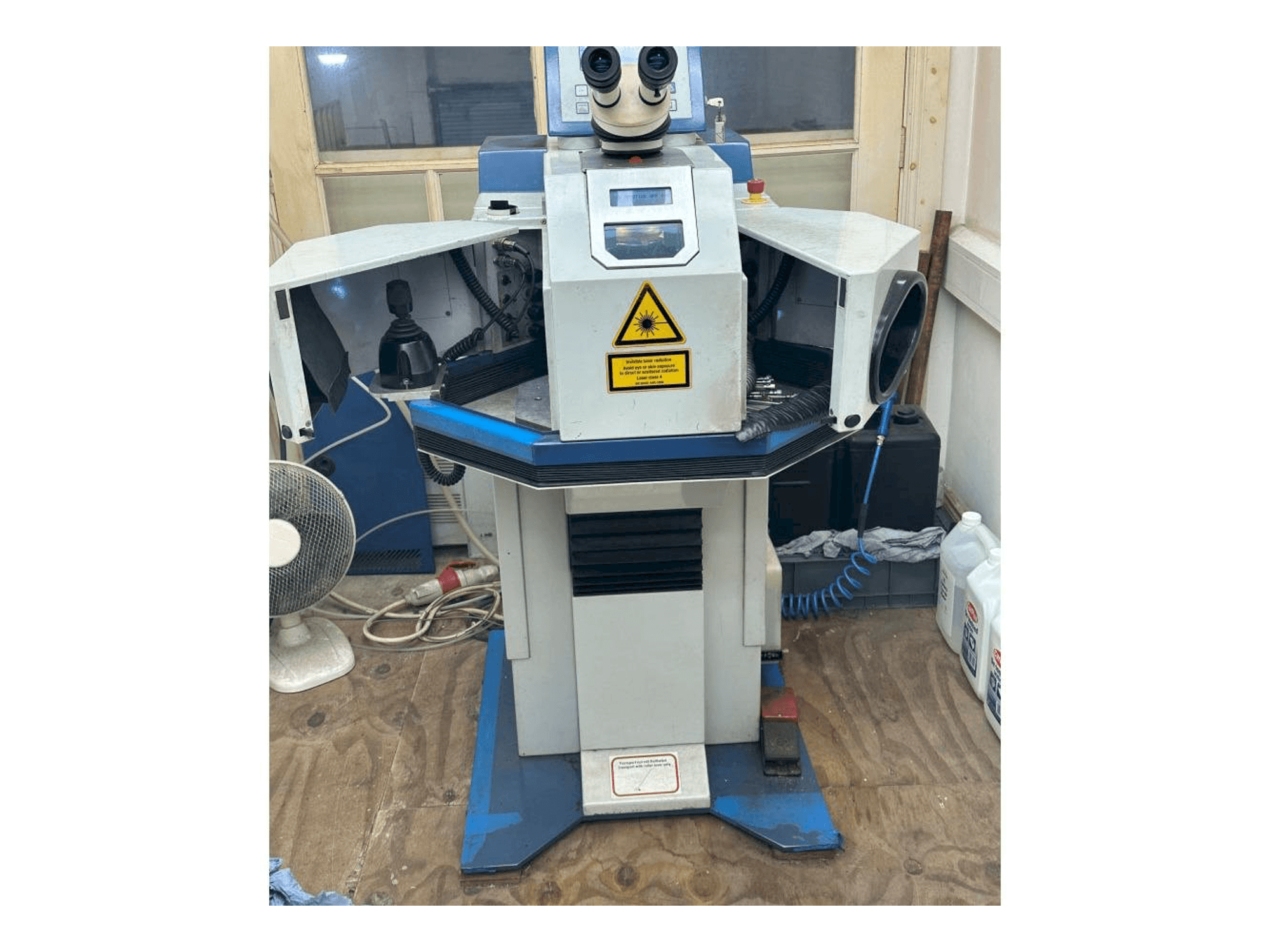

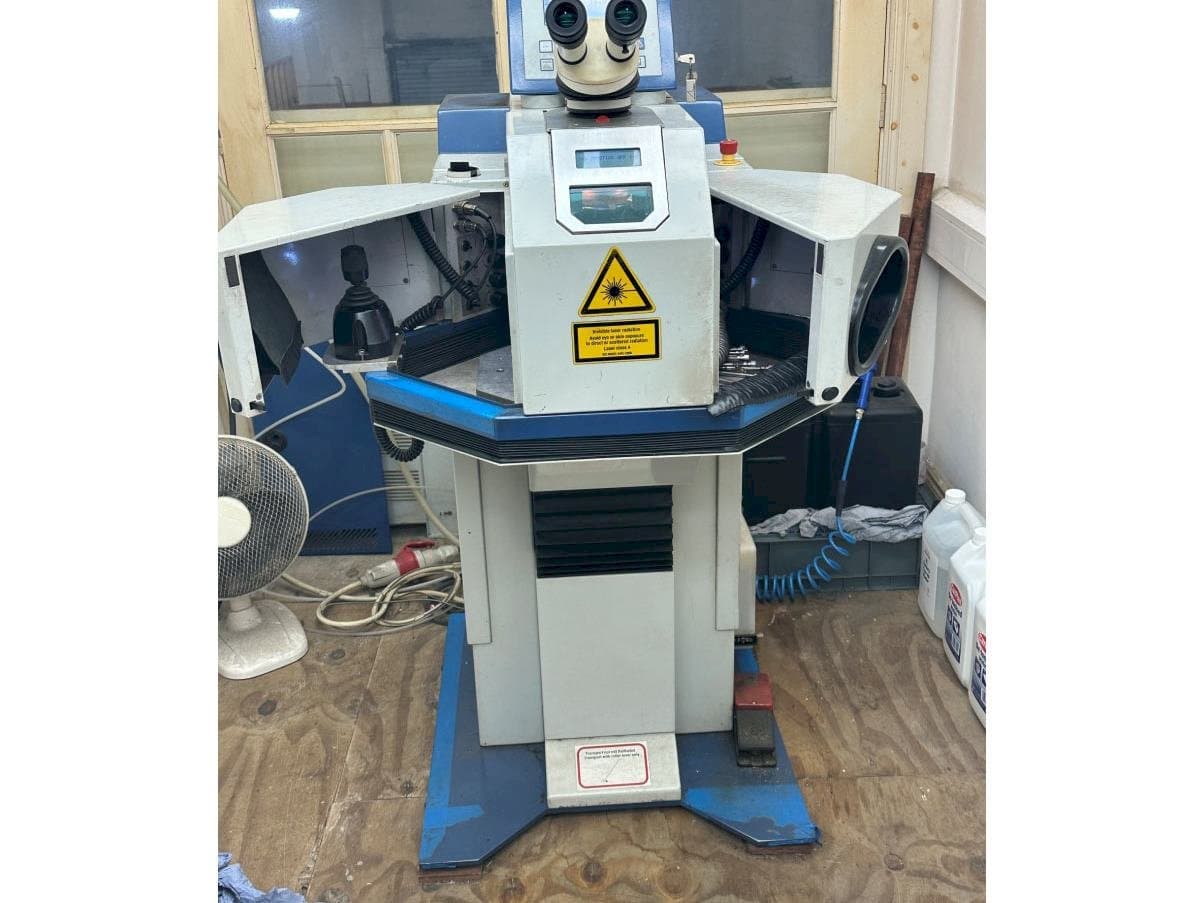

This Alpha laser ALV 150 SM Laser welding machine was made in 2010 in Germany. It is equipped with an Alpha laser control unit. The machine has a laser power of 0,16 kW, is in very good condition and well maintained.

Overview

brand: ALPHA LASER
year: 2010
MODEL: ALV 150 SM
application type: Laser Welding
Location: Ireland
machine type: Laser Welding Machine
availability: Sold
control unit brand: Alphalaser
GINDUMAC ID: IE-LAS-ALP-2010-00001

Technical Information

General Data

Measurements width: 650 mm
Measurements depth: 995 mm
Measurements height: 1200 mm
Machine weight: 260 kg

Control Unit

Brand: Alphalaser

Main drive

Laserpower: 0,16 kW
Plasma brand: YAG ND

Workpiece

Workpiece x: 380 mm
Workpiece y: 340 mm
Workpiece weight: 50 kg

Media

Main electronic connection: 400 V
Internal cooling: Yes

Additional Equipment

- Rotary axis module with chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Compact machine
- - Versatile machine
- - Laser wavelength: 1064nm
- - Max avg power: 160w
- - Pulse energy: 0. 15 - 75ws
- - Peak pulse power: 0. 15 - 9. 0kw
- - Pulse duration: 0. 5 - 20ms
- - Pulse frequency: single pulse - 20hz
- - Diameter of focal spot: 0. 3 - 2. 2mm
- - Focus setting: motorised
Qualitative Machine Benefits:
- - Very good condition
- - Cooling: integrated water-air heat exchanger
- - Working chamber inside dims: 590 x 450 x 550mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
