AMADA - LC-2415 alpha IIINL-LAS-AMA-2004-00003

Name: AMADA LC-2415 alpha III
Brand: AMADA
SKU: NL-LAS-AMA-2004-00003
Price: 21000 EUR
Availability: InStock

21,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

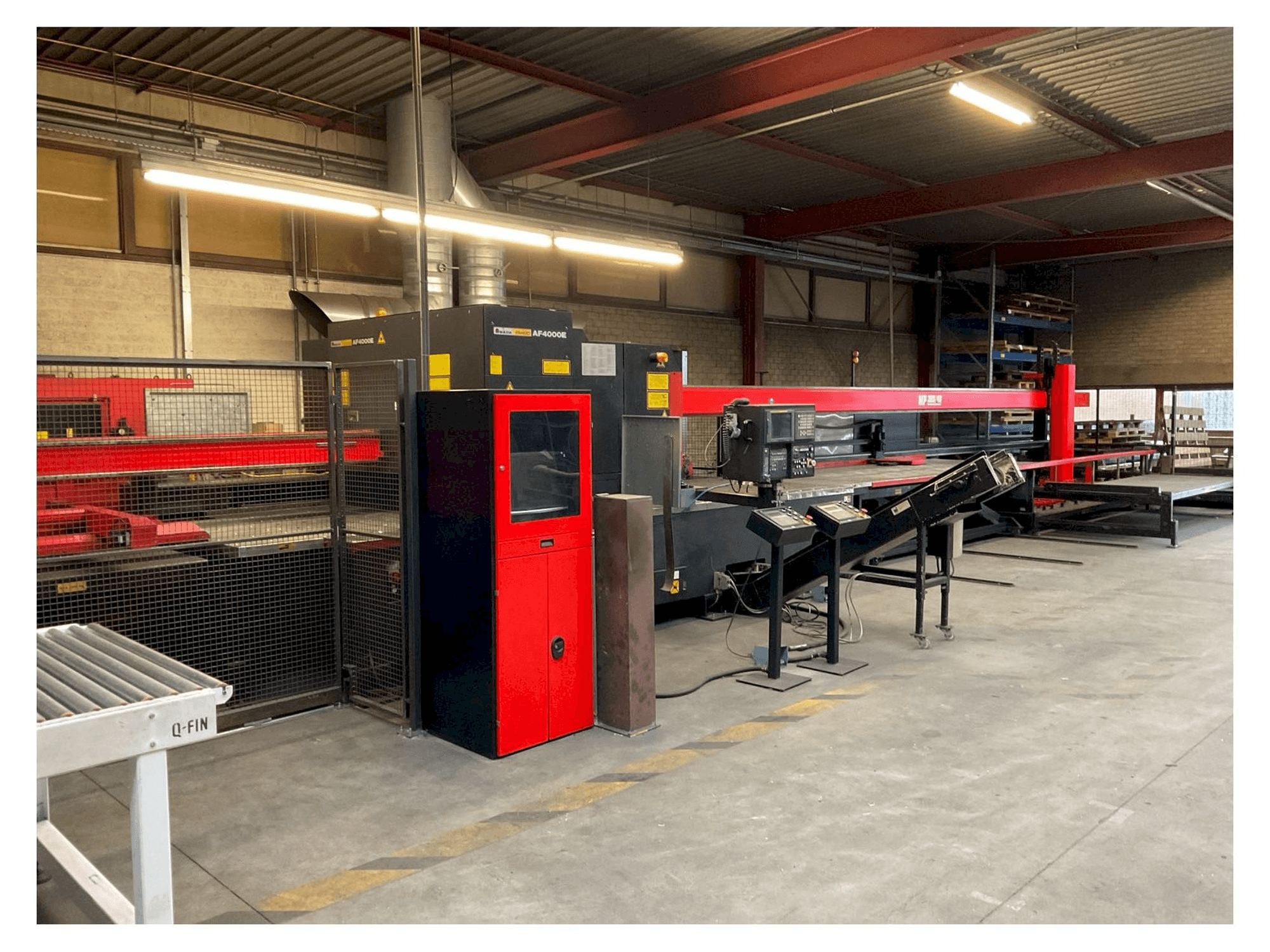

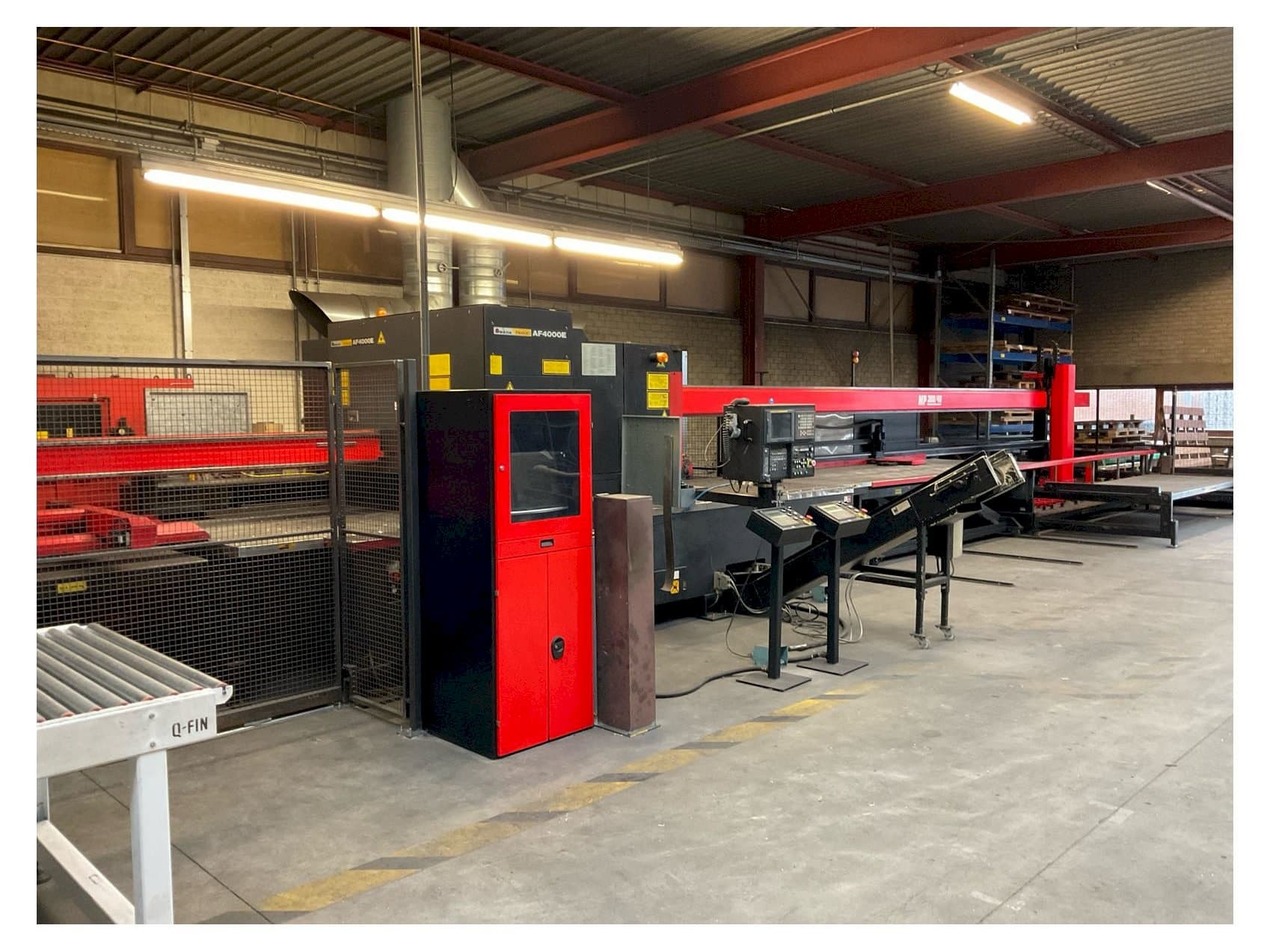

AMADA LC-2415 alpha III Laser Cutting machine

This AMADA LC-2415 alpha III Laser Cutting machine was manufactured in the year 2004. It is equipped with a Fanuc FS-160iLA CNC control unit and has 3 axis. The machine has a laser power of 4,0 kW.

Overview

brand: AMADA
year: 2004
MODEL: LC-2415 alpha III
application type: Laser Cutting
Location: Netherlands
machine type: Laser Cutting Machines (CO2)
availability: Immediately
control unit brand: Fanuc

Technical Information - AMADA LC-2415 alpha III

General Data

Machine weight: 6700 kg

Control Unit

Brand: Fanuc
Model: FS-160iLA

Main drive

Laserpower: 4,0 kW
Number of axis: 3

Table

Outer width: 1550 mm
Height adjustment: 820 mm

Additional Information

Extra information

- Working range: y1550 mm Brand: Amada Serial number: 2415127 Cutting speed: 20 m/min Table size w: 1550 mm Working range z: 300 mm Machine weight: 6700 kg Additional Information: pneumatically/electrically controlled; capacity 4Kw; max. worktop size 5040x1550 mm; max. worktop weight 330 kg; reach X-axis 2520 mm; range laser Y-axis 1550 mm; range laser Z-axis 300 mm; max. feed speed X 80 m/min, Y 80 m/min, Z 60 m/min; positioning accuracy 0.01mm/500mm; repeatability of positioning 0.005 mm; table height 820 mm; work gutter dimensions 550 x 1550 mm; equipped with: Fanuc FS-160iLA CNC control unit; Fanuc C-4000A CO2 laser, A04B-0815-B311, year built 2003, 4000W, water-cooled; loading platform (4200x1400mm); MP300/40 automatic charging system; lift table (4150x1600); Lasmac LX-2515 CXIII laser cutting machine; chip conveyor; PF HSMH4000 lift table (1200x3400mm); LKI PR300A automatic unloading system; Keller Vario T1.5 collector; Marx TG 512 power unit; Riedel PC 315.21-NE cooling installation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
