Arburg - 320 C 500-100 + Multilift H with B-AxisDE-INJ-ARB-2003-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ARBURG 320 C 500-100 + Multilift H with B-Axis Injection moulding machine

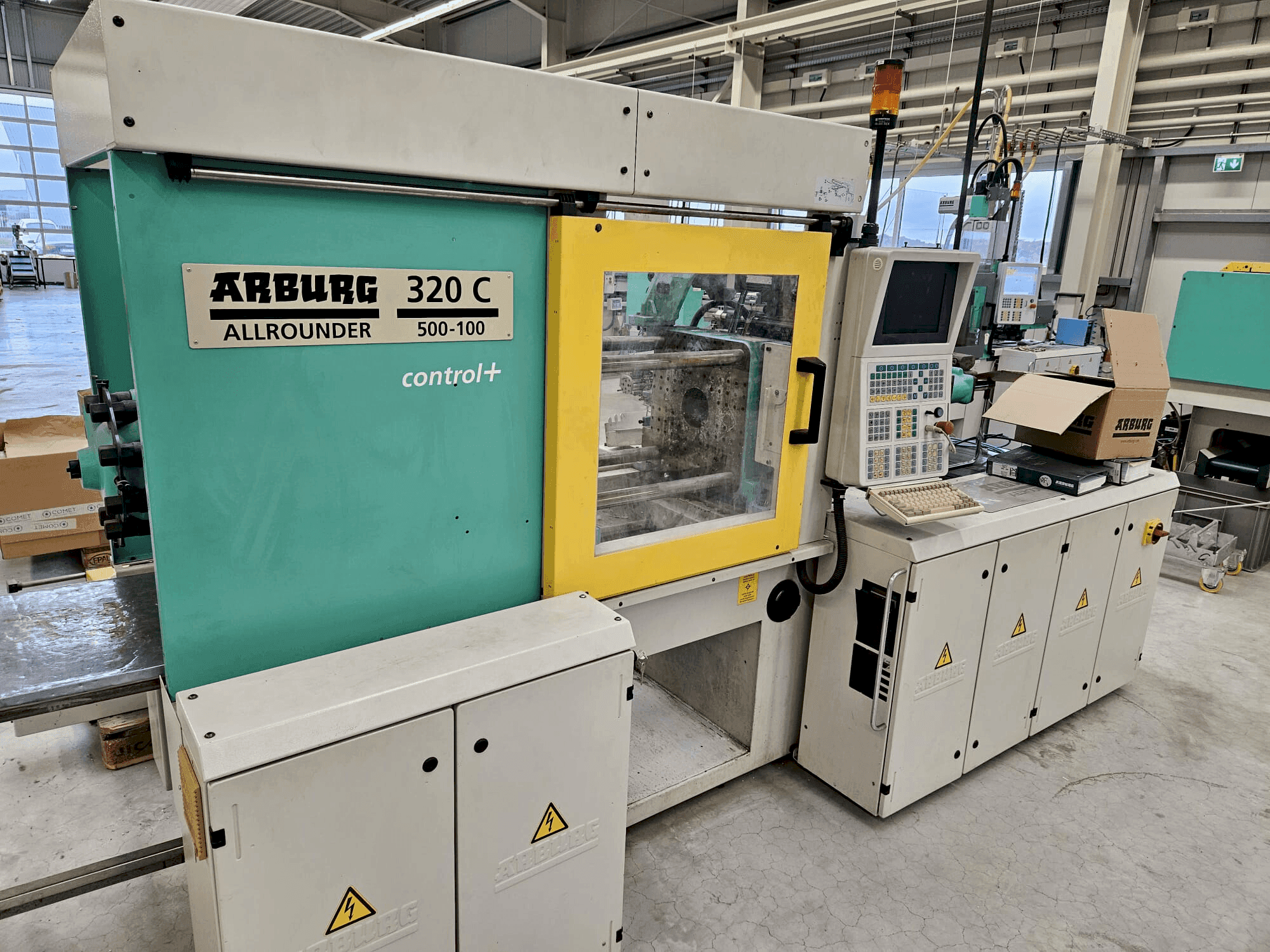

This ARBURG 320 C 500-100 + Multilift H with B-Axis Injection moulding machine was manufactured in 2003 in Germany. It has a clamping force of 500 kN and a screw diameter of 30 mm. The distance between platens is 550 mm and the opening stroke is 350 mm. In total it operated 64000 pump hours. The injection moulding machine comes with a Multilift H with B-Axis, featuring a handling weight gripper plus part weight of max. 5 kg and a swivel range B-axis of 90 degrees. See original tech specs (DE) attached as PDF below.
Overview
- brand: Arburg
- year: 2003
- MODEL: 320 C 500-100 + Multilift H with B-Axis
- production hours: 64000
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
- control unit brand: ARBURG
Technical Information - Arburg 320 C 500-100 + Multilift H with B-Axis
General Data
- Machine weight: 2080 kg
Control Unit
- Model: SELOGICA 3.090
- Brand: ARBURG
Injection Unit
- Screw diameter: 30 mm
- Injection pressure: 1550 bar
Clamping unit
- Clamping force: 500 kN
- Opening stroke: 350 mm
- Distance between bars: 550 mm
Additional Equipment
- - Multilift H with B-Axis: Handling weight gripper plus part weight max. 5 kg, Swivel range B-axis 90 degrees
Additional Information
- Technical Machine Benefits:
- - Mold installation height min. 200 mm
- - Clear column spacing 320 x 320 mm
- - Mold mounting platens (w x h) 446 x 446
- - Drive power of the hydraulic pump 15 kw
- - Effective screw length l/d 16. 7
- - Screw stroke max. 100 mm
- - Calculated stroke volume max. 70 cm3
- - Injection part weight max. 64 g/ps
- - Injection pressure max. 1550 bar
- - Injection flow max. 180 cm3/s
- - Oil filling 160 l
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
