Arburg 370 S 600-290 U
Arburg - 370 S 600-290 U
2022
89,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Arburg 370 S 600-290 U Injection moulding machine

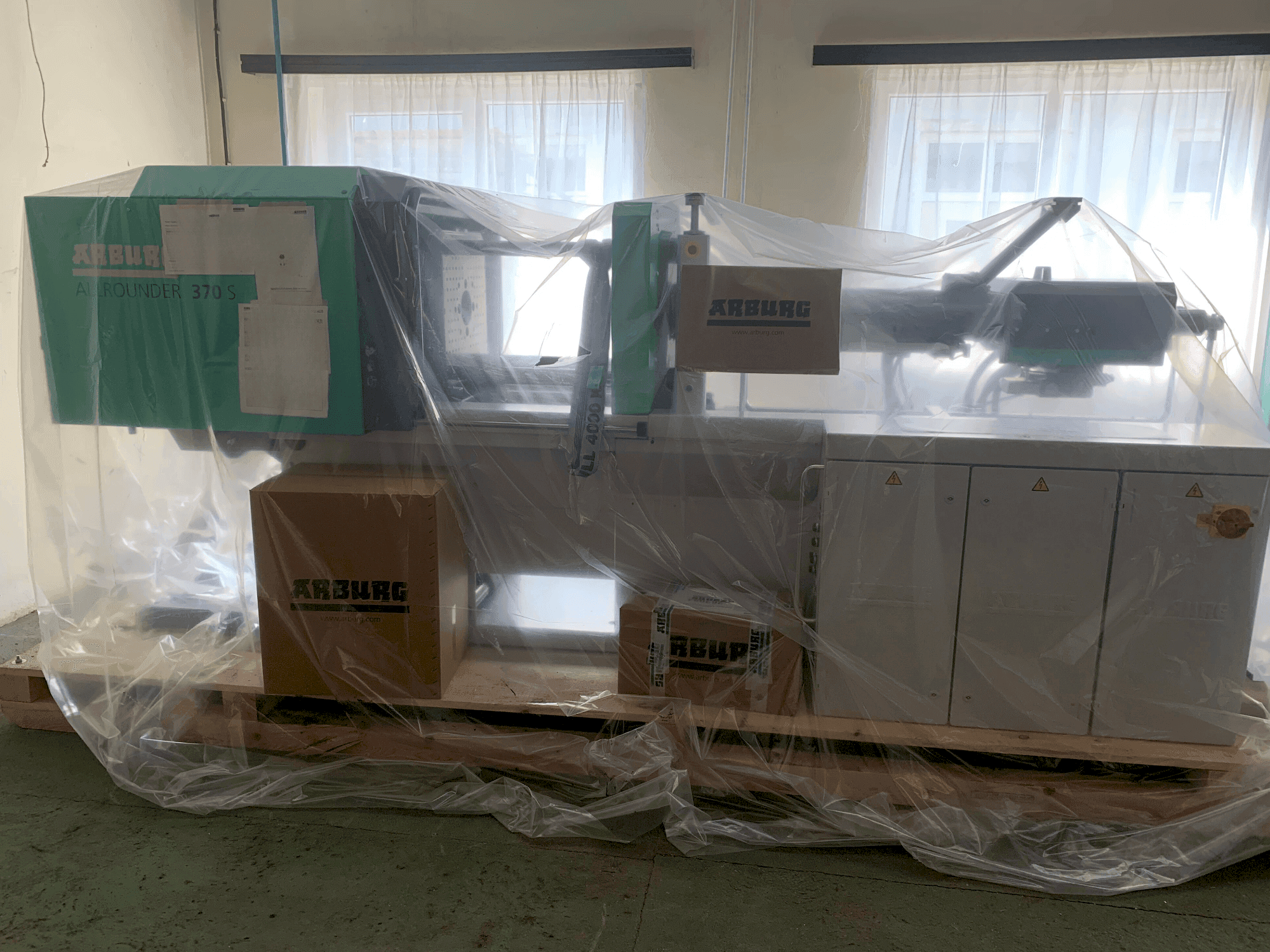

This Arburg 370 S 600-290 U Injection moulding machine was manufactured in the year 2022 in Germany. It is new, never used and still in original packaging. With a clamping force of 600 kN, 290 injection unit and screw diameter of 35mm (armored, highly wear-resistant screw) it is a compact, fully hydraulic clamping system - ideal for reliable and precise reproducibility in injection moulding operations. The closing unit can be tilted from horizontal to vertical. To be considered that machine comes without position control.
Overview
- brand: Arburg
- year: 2022
- MODEL: 370 S 600-290 U
- production hours: 0
- application type: Injection Moulding
- Location: Hungary
- machine type: Injection Moulding Machines
- availability: Immediately
- control unit brand: ARBURG
- GINDUMAC ID: HU-INJ-ARB-2022-00001
Technical Information
General Data
- Measurements width: 3740 mm
- Measurements depth: 1475 mm
- Measurements height: 11920 mm
- Machine weight: 3300 kg
Control Unit
- Brand: ARBURG
- Model: SELOGICA ND
Injection Unit
- Screw diameter: 35 mm
- Shot weight: 132 g (PS)
- Stroke volume: 144 cm3 CM³
- Injection pressure: 2000 bar
- Screw speed: 54 m/min
- Heating capacity: 6.4
Clamping unit
- Clamping force: 600 kN
- Opening stroke: 400 mm
- Max open daylight: 600 mm
- Distance between bars: 370 x 370 mm
- Mould height min: 200 mm
- Mould height max: -
- Size of mold platens: 510 x 510 mm
- Ejector stroke: 125 mm
- Ejector force for / back: 30 kN
Media
- Main electronic connection: 23 kW
- Pump drive power: 15 kW
- Oil tank: 135 l
Additional Information
- Technical Machine Benefits:
- - Central, convertible, swivelling injection unit as complete assembly group
- - Plasticising unit in modular design, with central coupling and adaptive temperature regulation
- - Plasticising cylinder in wear resistant execution, injection through fixed mould platen
- - Compact, fully hydraulic clamping system with 4 individually removable tie bars
- - Clamping unit without hoses, hydraulics close to the use for precise drive of the axes
- - All axes of the mould clamping unit are programmable and regulated in their movements
- - Space-saving, compact design
- - Mould protection monitoring via ejector platen safety switch (interface)
- - Intuitive selogica nd control system – data sets are fully compatible with the proven selogica
- - Hierarchical structure and graphical sequence programming with real-time plausibility check, identical to selogica controller
- Qualitative Machine Benefits:
- - The machine is new, never used and still in original package
- - The closing unit can be tilted from horizontal to vertical
- - Equipped with armored, highly wear-resistant d35 mm screw. Important! Machine has no position control
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
