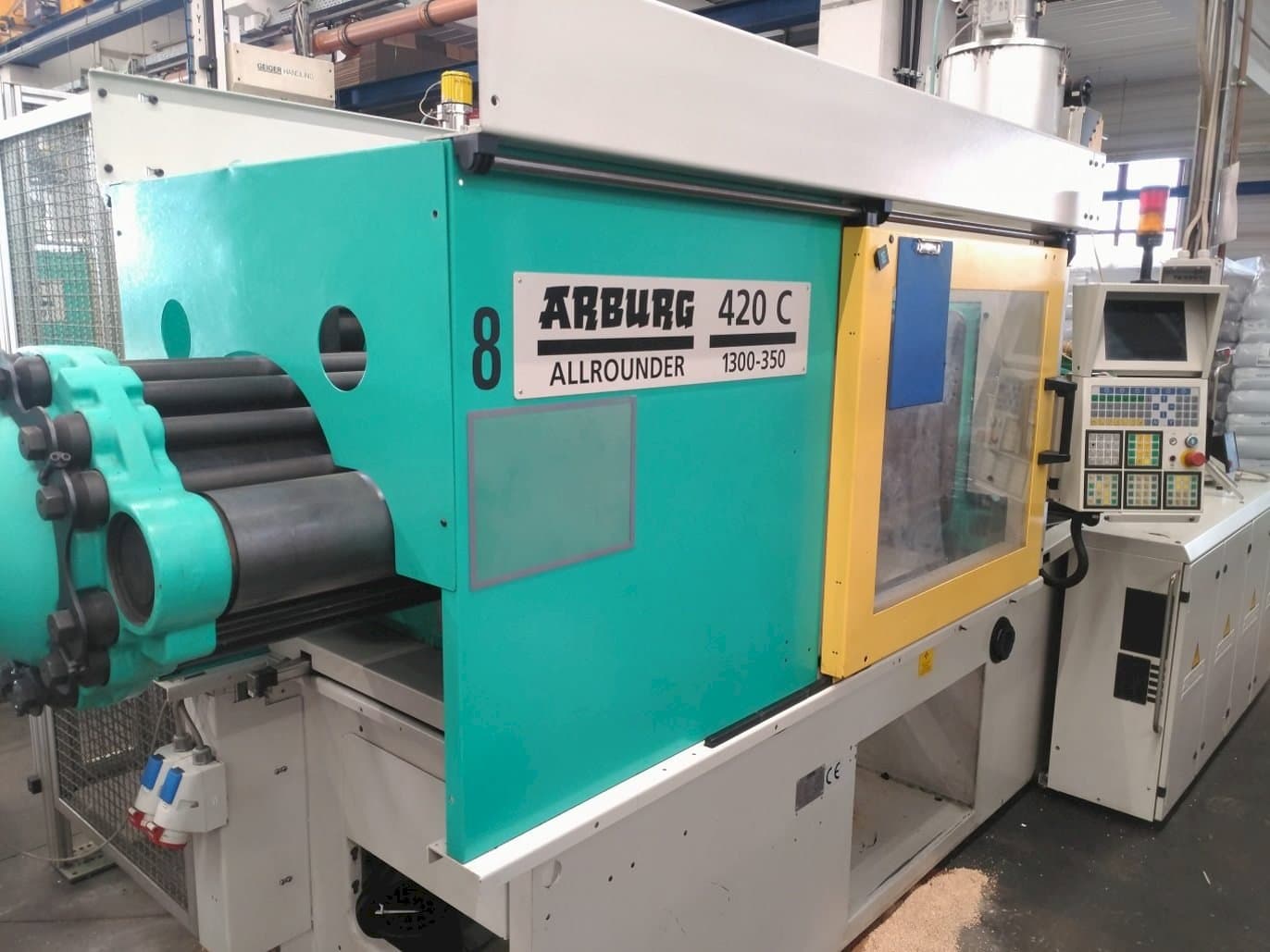

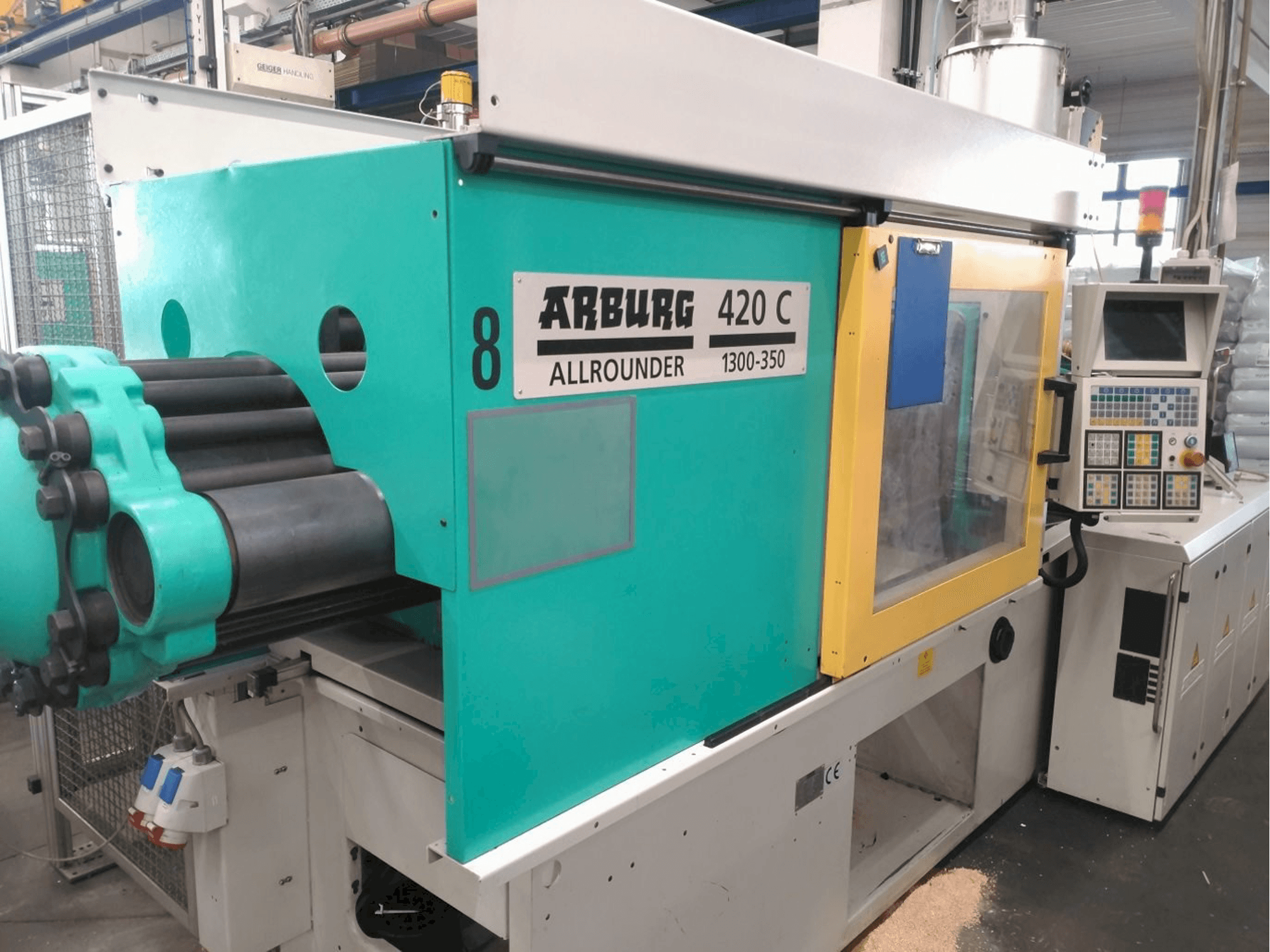

Arburg 420 C 1300-350 Injection Moulding Machine

This Arburg 420 C 1300-350 Injection Moulding Machine was manufactured in Germany in the year 2000. This machine counts with 22583 production hours. This machine can works with a clamping force of 1300 kN, opening stroke of 500 mm, and an injection pressure up to 1670 bar.

Overview

brand: Arburg
year: 2000
MODEL: 420 C 1300-350
production hours: 22583
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 420 C 1300-350

General Data

Machine weight: 4080 kg

Injection Unit

Screw diameter: 45 mm
Injection pressure: 1670 bar

Clamping unit

Clamping force: 1300 kN
Opening stroke: 500 mm
Distance between bars: 420x420 mm

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mould mounting platens: 615x615 mm

Extra information

- Material dryer/cylinder and batch mixer not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
