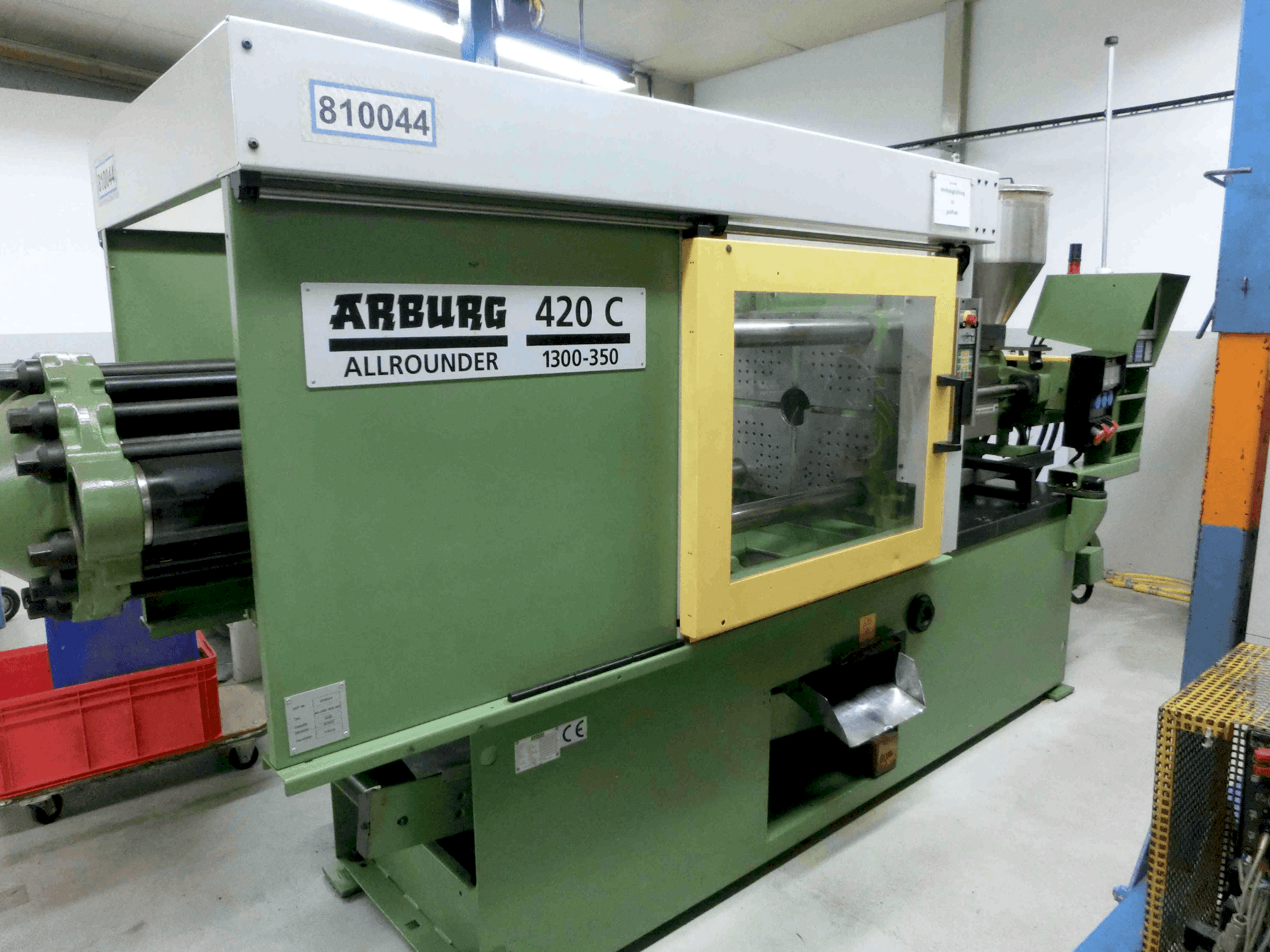

This Arburg 420C-1300-350 was manufactured in 1996. A robust injection moulding machine featuring a clamping force of 1300 kN and a screw diameter range of 35/40/45 mm. It supports a mould weight up to 600 kg and has a mould installation height of 250 mm. Ideal for precise and efficient production, the Arburg 420C-1300-350 machine we have for sale is a valuable addition to any manufacturing setup. Contact us for more information.
Overview
- brand: Arburg
- year: 1996
- MODEL: 420C-1300-350
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg 420C-1300-350
General Data
- Machine weight: 4500 kg
Injection Unit
- Screw diameter: 35/40/45 mm
- Shot weight: 194 g/hp
- Injection pressure: 2500/2050/1650 bar
Clamping unit
- Clamping force: 1300 kN
- Opening stroke: 500 mm
- Distance between bars: 420x420 mm
- Mould height min: 250 mm
- Size of mold platens: 615x615 mm
- Ejector stroke: 175 mm
- Ejector force for / back: 40 kN
Additional Information
- Technical Machine Benefits:
- - Closing force max: 50 kn
- - Opening force / increased max: 35/350 kn
- - Weight of mould half max: 600 kg
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
