Arburg - Allrounder 270 C 400-70DE-INJ-ARB-2007-00007
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Arburg Allrounder 270 C 400-70 | Injection Moulding

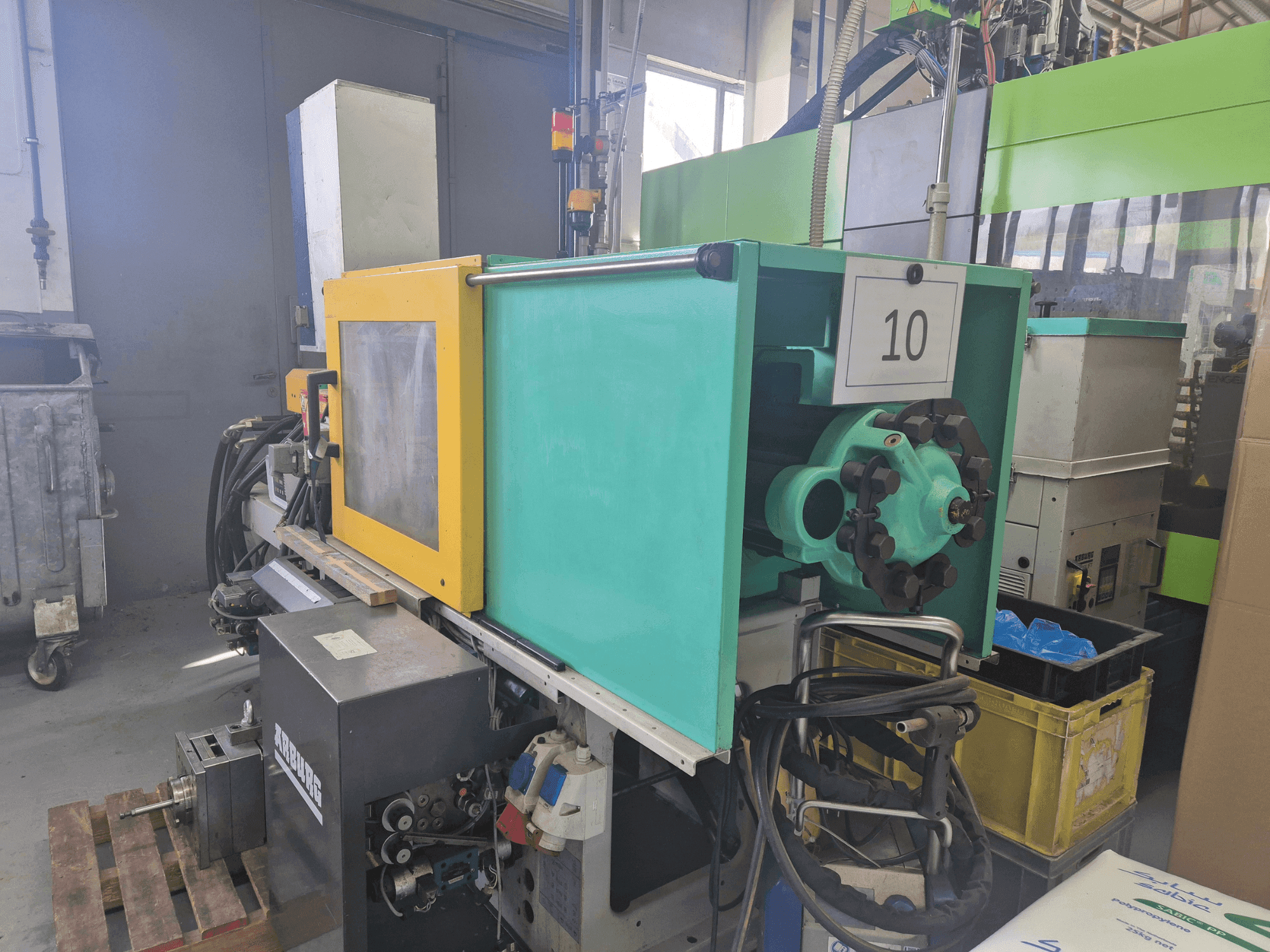

This Arburg Allrounder 270 C 400-70 was manufactured in 2007. A hydraulic injection moulding machine, it's ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 270 C 400-70 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2007
- MODEL: Allrounder 270 C 400-70
- production hours: 64344
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Arburg Allrounder 270 C 400-70
Injection Unit
- Stroke volume: 16 ccm CM³
Clamping unit
- Clamping force: 400 kN
- Opening stroke: 350 mm
- Distance between bars: 270 mm
- Mould height min: 200 mm
Additional Equipment
- - Oil Cooling: Programmable oil temperature regulation with heat exchanger.
- - Injection Control: 3-stage injection regulation (30-290 mm/s).
- - Nozzle Control Block: T2 type for 270-570 CG series.
- - Clamping Unit: WKZ-Schließeinheit 270 CS (base configuration). Minimum installation height: 200 mm.
- - Control System: CPU: Pentium III with USB interface. / I/O Cards: Digital (L-ARB 790) and analog (L-ARB 798) modules. /Temperature Control: 12-channel programmable card (L-ARB 777).
- - S-Systemdiskette CS/S/A/U (Version 03.060-00.000).
- - Direct Graphics Interface (Version 04.060-00.000).
- - Coolant Distribution: Regulated coolant circuits with manual valves and measuring pipes. / Additional connections for free inlet/outlet.
Additional Information
- Technical Machine Benefits:
- - Clamping system: hasco
- - Cylinder diameter: 18 mm
- - Injection weight max (ps): 17 g
- - Nozzle radius: r40
- - Centring ring: 125
- - Voltage: 400 v / 50 hz
- - Hydraulic pump: model: rxp 45 + akp 18 + hssp 16 / d / drive unit: d38/d35 (5. 5-7. 5 kn) /motor: power: 7. 5/8. 6 kw / voltage range: 380-420v (50/60hz) or 440-480v (60hz)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
