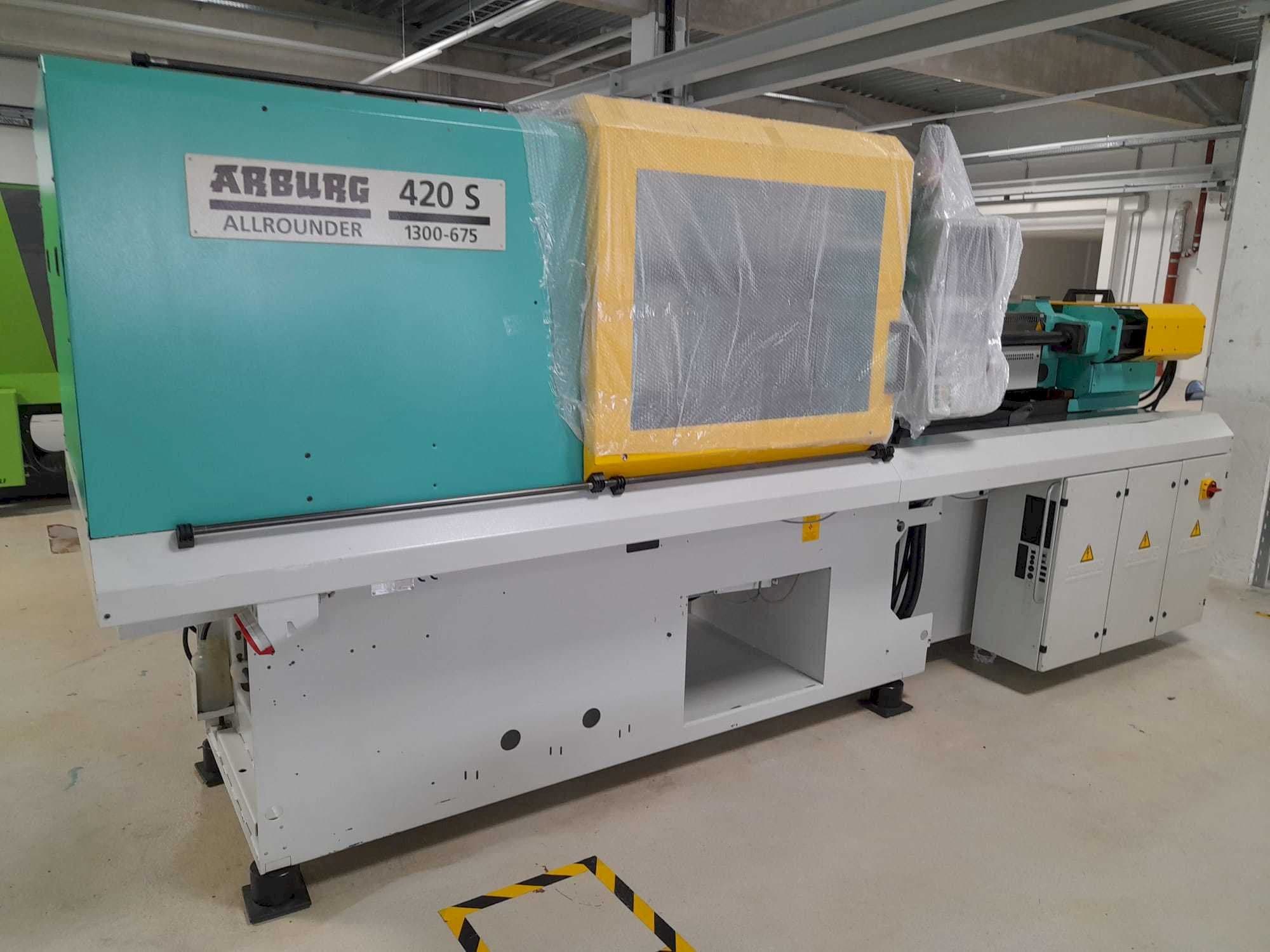

Front view of Arburg Allrounder 420S 1300-675  machine

Arburg - Allrounder 420S 1300-675DE-INJ-ARB-2004-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ARBURG Allrounder 420S 1300-675 Injection Moulding Machine was manufactured in 2004 in Germany. It has a clamping force of 1300 kN and is equipped with a 55mm screw with 2080 bar injection pressure. The open stroke is 575 mm and the mould height is min. 275mm. The machine is controlled by an ARBURG SELOGICA control unit and has operated 53425 hours. The machine is equipped with Euromap and has one hydraulic traction system installed.

Overview

  • brand: Arburg
  • year: 2004
  • MODEL: Allrounder 420S 1300-675
  • production hours: 53425
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold
  • control unit brand: ARBURG

Technical Information - Arburg Allrounder 420S 1300-675

General Data

  • Measurements width: 4800 mm
  • Measurements depth: 1500 mm
  • Measurements height: 2200 mm
  • Machine weight: 5400 kg

Control Unit

  • Model: SELOGICA
  • Brand: ARBURG

Injection Unit

  • Screw diameter: 55 mm
  • Stroke volume: 55 CM³
  • Injection pressure: 2080 bar
  • Screw speed: 59 1/min
  • Heating capacity: 13.8 kW
  • Adjustable heating zones: 6

Clamping unit

  • Clamping force: 1300 kN
  • Opening stroke: 575 mm
  • Distance between bars: 850 mm
  • Mould height min: 275 mm
  • Size of mold platens: 650 x 650 mm
  • Ejector stroke: 175 mm
  • Ejector force for / back: 40 Nm

    Additional Equipment

    • - Equipped with Euromap
    • - One hydraulic traction system installed

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Plate size h x v 650 x 650 // beam size h x v 420 x 420 mm
        • - Installation height 275 mm
        • - Opening travel 575 mm
        • - Plate distance 850 mm
        • - Ejector stroke 175 mm // ejector force 40 nm
        • - Centering d movable plate 125mm // centering d fixed plate 125mm
        • - Threaded hole clamping plate m12
        • - Screw torque 880 nm // screw stroke 180mm
        • - Injection pressure 2080 bar

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
