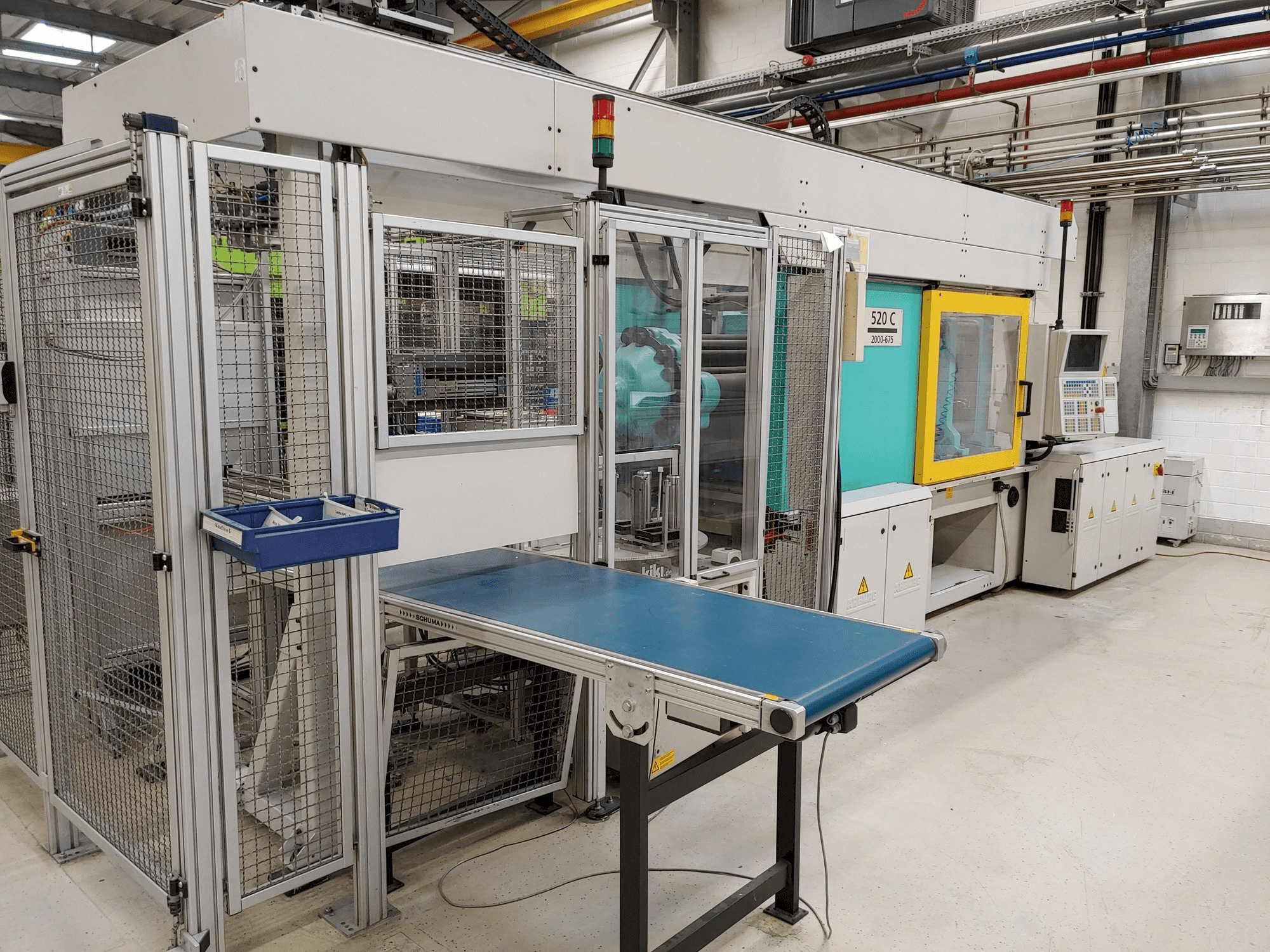

Front view of Arburg Allrounder 520 C 2000-675  machine

Arburg Allrounder 520 C 2000-675

Arburg - Allrounder 520 C 2000-675

2002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Arburg Allrounder 520 C 2000-675 Injection Moulding Machine was built in 2002 and has 56776 hours. It is equipped with a Selogica control unit. The machine has a clamping force of 2500 kN and a screw diameter of 45 mm.

Overview

  • brand: Arburg
  • year: 2002
  • MODEL: Allrounder 520 C 2000-675
  • production hours: 56776
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: Selogica
  • GINDUMAC ID: DE-INJ-ARB-2002-00003

Technical Information

Control Unit

  • Brand: Selogica

Movement

  • X-AXIS Movement: 4200 mm
  • Y-AXIS Movement: 520 mm
  • Z-AXIS Movement: 1000 mm

Injection Unit

  • Screw diameter: 45 mm
  • Stroke volume: 286 CM³
  • Injection pressure: 2500 bar

Clamping unit

  • Clamping force: 2000 kn
  • Opening stroke: 650 mm
  • Mould height min: 250 mm
  • Size of mold platens: 728 x 728 mm
  • Ejector stroke: 225 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Load capacity: 15 kg
      • - Clear column distance: 520 x 520 mm
      • - Effective screw length (l/d): 22
      • - Molded part weight (max. ): 261 g/hp

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
