Arburg - Allrounder 570 S 2200-290 / 170DE-INJ-ARB-2010-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Arburg Allrounder 570 S 2200-290 / 170 For Sale

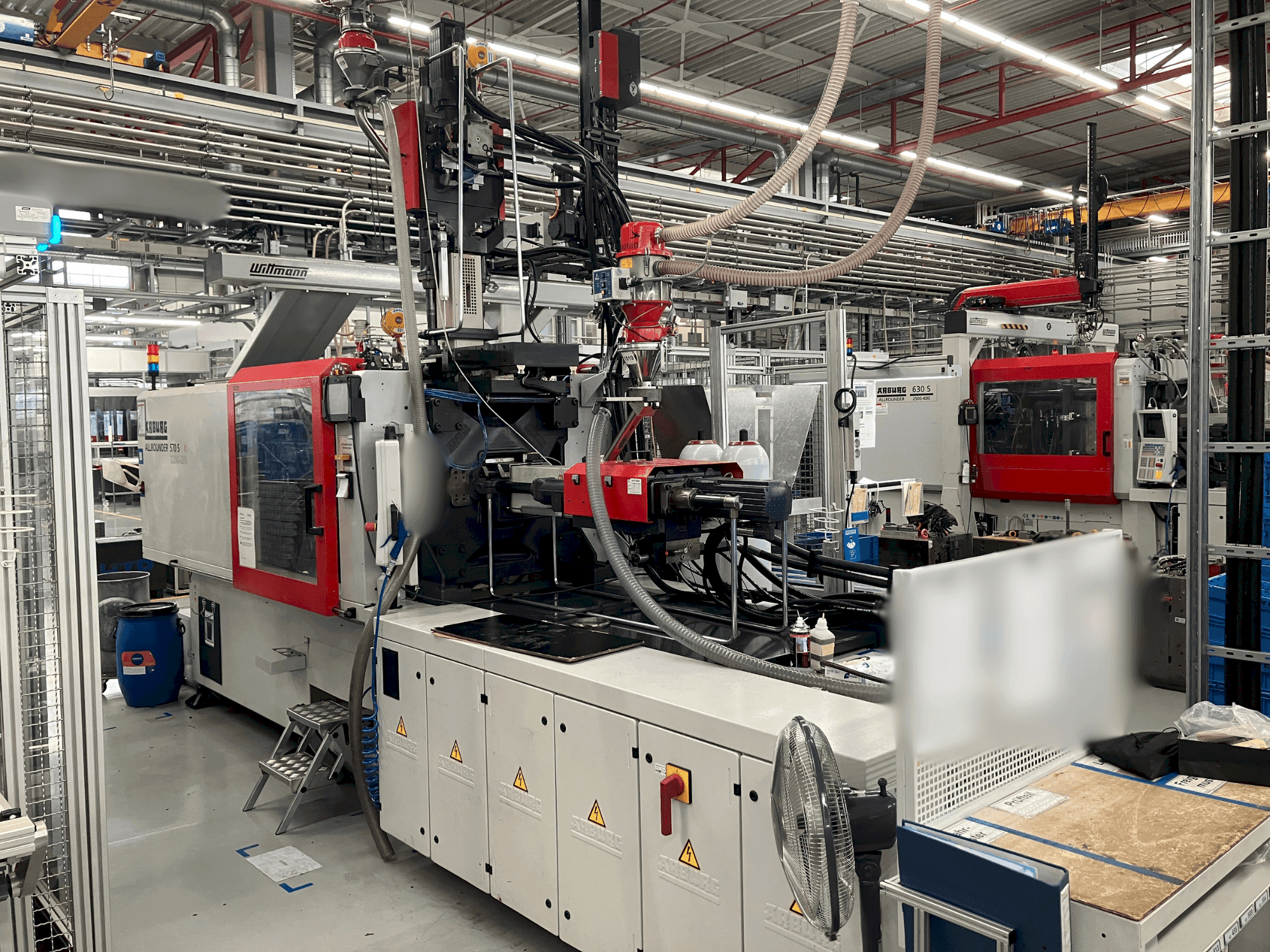

This Arburg Allrounder 570 S 2200-290 / 170 was manufactured in 2010. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this Arburg Allrounder 570 S 2200-290 / 170 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2010
- MODEL: Allrounder 570 S 2200-290 / 170
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg Allrounder 570 S 2200-290 / 170
Technical Specification
- Clamping Force: 220 kN
- Screw Diameter: 30 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Language options: german, english
- Aggregate 1: size: 290
- Aggregate 2: size: 170 screw diameter: 25 mm maximum shot volume: 59 ccm maximum injection pressure: 2500 bar
- Number of thermolators: 4
- Thermolator max temperature: 160°c
- Robot: w732 robot axes: x, y, z, c, b robot vacuum circles nr. : 4 robot gripper circles nr. : 6
- Cable cross-section: 2x5x70 mm²
- Water connection details: size: 3/4 inch, number of points: 4
- Oil filling quantity: 310 l
Technical Machine Benefits
- Tie bar distance: 570 mm
- Tonnage group: 220 to 2000 kn
- Number of components: 2k
- Maximum plate distance: 1100 mm
- Maximum ejector length: 200 mm
- Coupling diameter: 0 mm
- Index shaft: diameter: 60 mm distance: 250 mm
- Center ring diameter: 160 mm
- Valve gate (number): 4
- Hk control points number: 18 (3)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
