- ➤ Used AXA VPC-40-U For Sale | gindumac.com

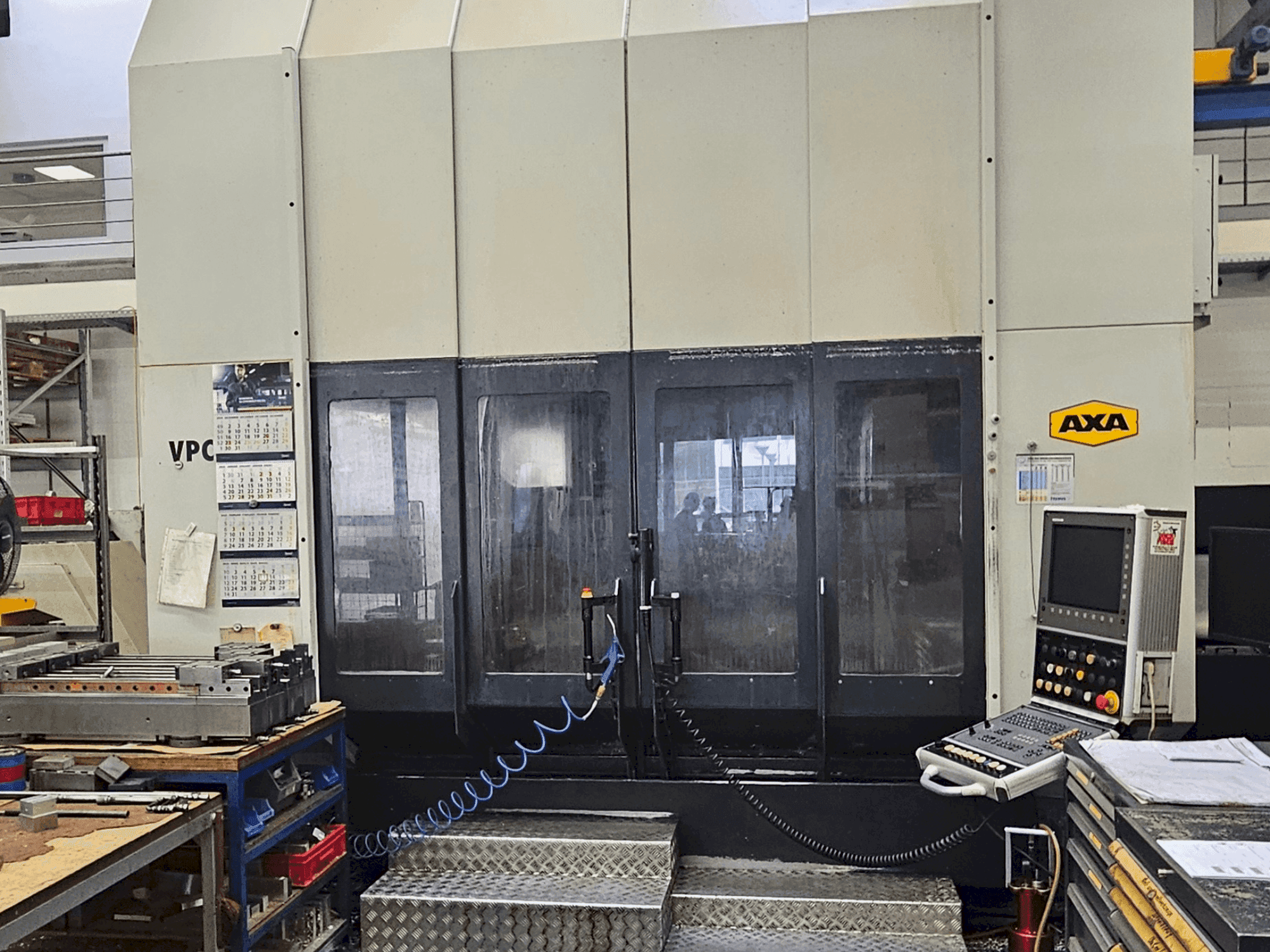

This 4-axis AXA VPC-40-U vertical machining centre was manufactured in 2003. It features a robust 30 kW AC hollow shaft motor with a speed range of 30-10,000 rpm and a spindle torque of 143 Nm. The machine includes a 36-pocket chain magazine with a rapid tool change time of approximately 6 seconds. Consider the opportunity to buy this AXA VPC-40-U vertical machining centre. Contact us for more information about this machine.
Overview
- brand: AXA
- year: 2003
- MODEL: VPC-40-U
- production hours: 63400
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - AXA VPC-40-U
Dimensions
- Machine Depth: 4800 mm
- Machine Height: 4000 mm
- Machine Weight: 20000 kg
- Table Load: 1500 kg
Movement
- Number of Axes: 4
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Spindle torque (40% ed): 143 nm
- Clamping area: 1100×1100 mm
- T-slots: 7 pieces (middle guide slot: h7), 14 h9 mm
- Chain magazine pockets: 36
- Tool change time: approximately 6 seconds
- Max. Tool weight/max. Tool length: 8 kg/340 mm
- Max. Tool weight (in gripper): 10 kg
Extra Information
Rotary Table RTA 5 Clamping Area: 1100×1100 mm, corners chamfered at 150 mm×45∘ T-slots: 7 pieces (Middle guide slot: H7), 14 H9 mm Load Capacity: 1500 kg per table (with uniform, flat load) Max. Transmissible Torque (by worm gear): 4500 Nm Max. Tangential Torque (with hydraulic clamping): 10000 Nm Max. Tilting Moment: 26000 Nm Measurement System Accuracy: ±5 " Repeatability: ±0.01 mm Positioning Accuracy (per 1000 mm per axis X, Y, Z): ±0.015 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
