Baykal BLS-NL 2060 4kW Fiber
Baykal - BLS-NL 2060 4kW Fiber
2014
142,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- BAYKAL BLS-NL 2060 4kW Laser cutting machine

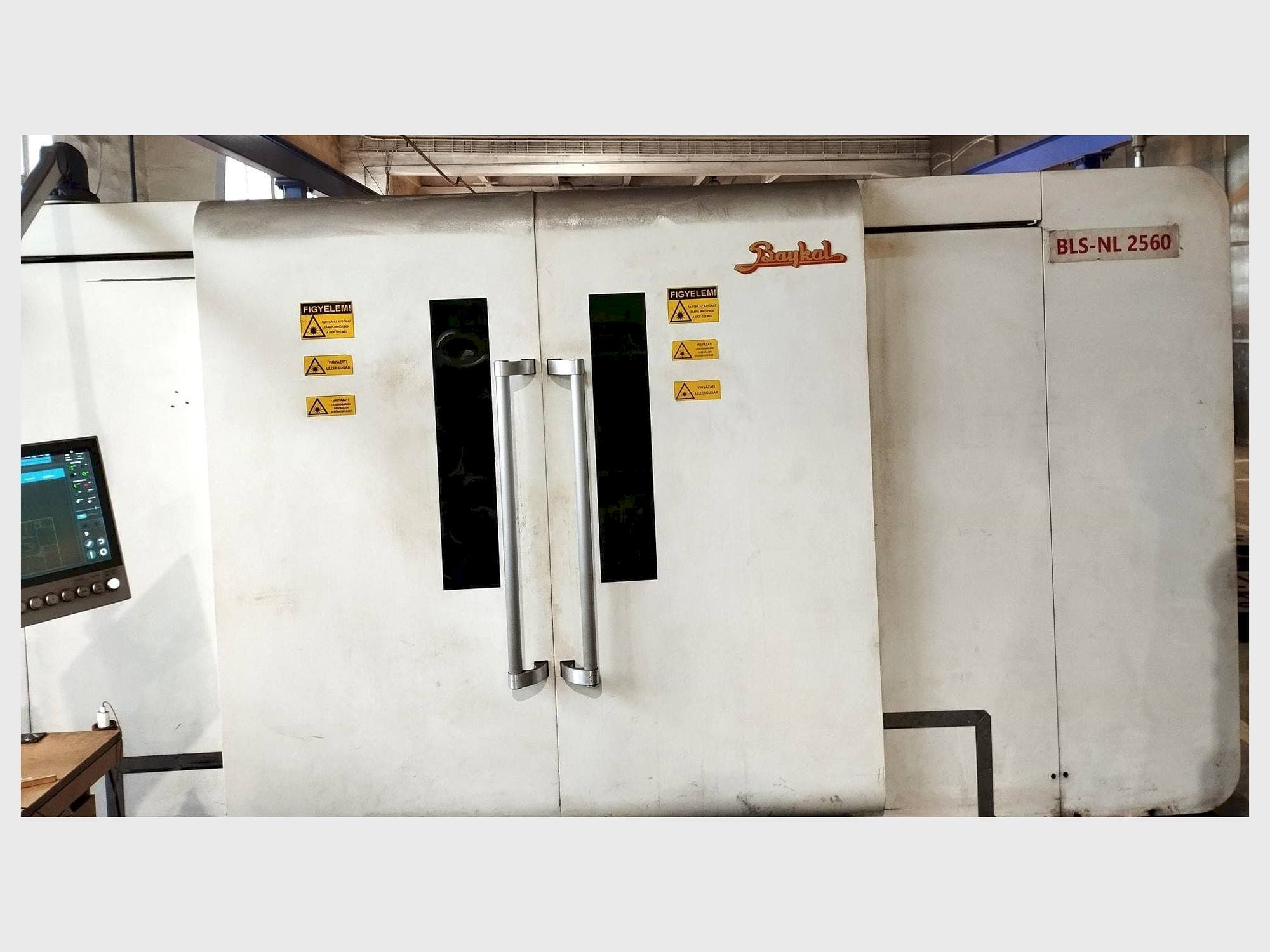

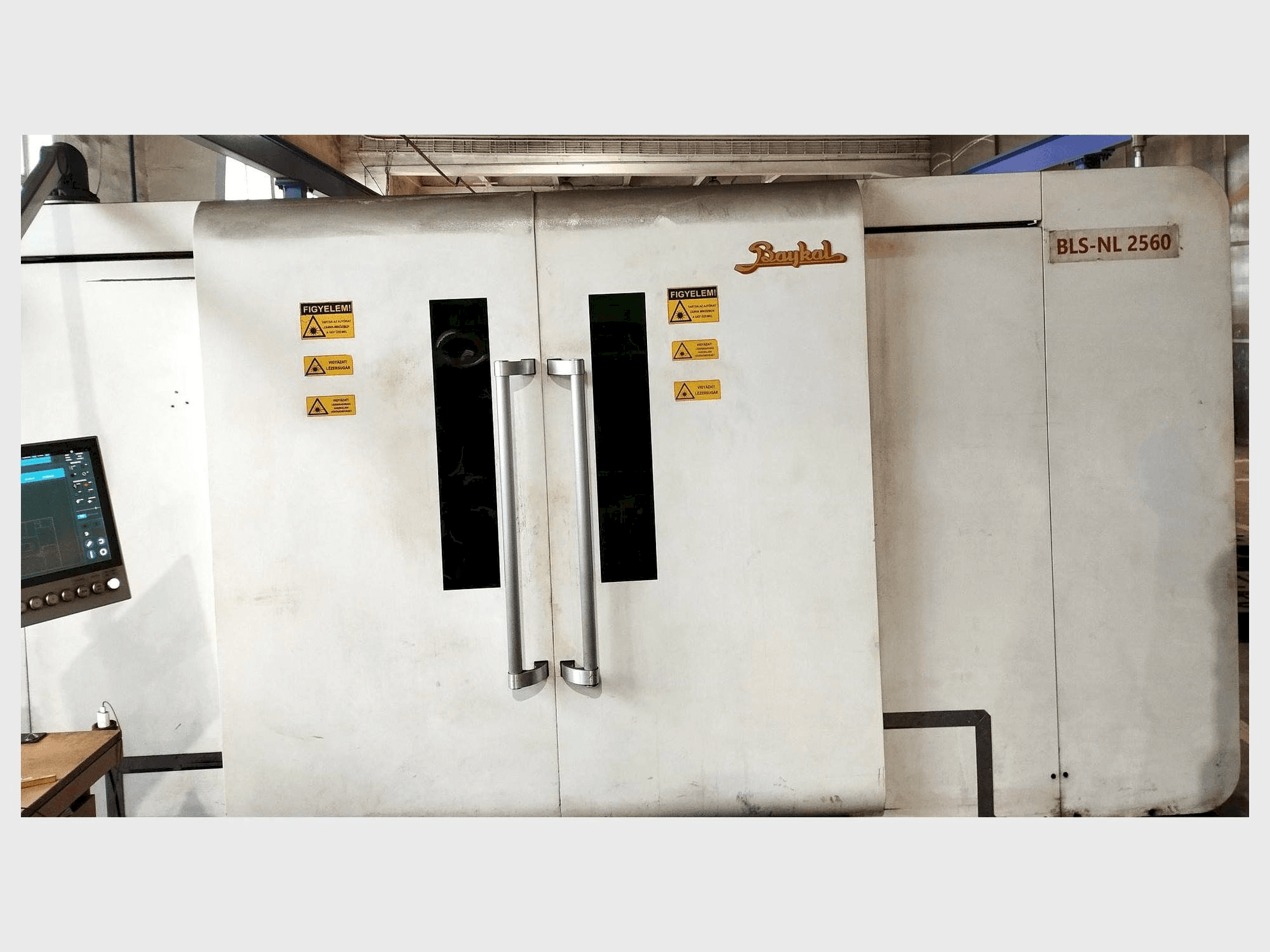

This BAYKAL BLS-NL 2060 4kW Laser cutting machine was manufactured in the year 2014. It is equipped with a Beckhoff CNC control unit. The machine has a laser power of 4 kW as well as a max. load capacity of 4450 kg. See PDF (EN) with technical benefits attached below.
Overview
- brand: Baykal
- year: 2014
- MODEL: BLS-NL 2060 4kW Fiber
- application type: Laser Cutting
- Location: Hungary
- machine type: Laser Cutting Machines (CO2)
- availability: Immediately
- control unit brand: Beckhoff
- GINDUMAC ID: HU-LAS-BAY-2014-00001
Technical Information
Control Unit
- Brand: Beckhoff
- Model: CNC
Main drive
- Laserpower: 4 kW
Workpiece
- Workpiece drm over bed: 2000 mm
- Workpiece drm over support: 6000 mm
Table
- Table load: 4450 kg
Additional Equipment
- - Nesting Software LANTEK Expert Cut II / Metalix AutoNest PRO
- - Nozzle Cleaning and Calibration Automatic
- - Fume extractor include 1000 m 3 /h
- - High performance and precision linear system Beckhoff CNC controller
- - Double circulation water cooling
- - Fiber optic beam yield/delivery/dosing system Windows-based operating system
- - 360-degree freely rotatable, positionable CNC control panel
- - Automatic pallet changer (double loading tray) with hydraulic lift, integrated motorized drive system
- - Programmable auxiliary gas (air / oxygen / nitrogen) selection 1-25 bar Advanced Precitec cutting head (air with cross blowing)
- - Automatic nozzle cleaning and calibration system Standard smoke extraction system, Lantek CAD/CAM system - Built-in safety systems
Additional Information
- Technical Machine Benefits:
- - Cutting head precitec procutter 2. 0
- - Focusing lenses 150 mm
- - Linear rails (bosch rexroth)
- - Rapid traverse 115 m/min. 150 m/min
- - Vector speed 165 m /min 215 m/min
- - Acceleration 2. 2g (22m/s2) 3. 0 g (30m/s2)
- - Absolute positioning accuracy ± 0. 02 mm ± 0. 01 mm
- - Repeatability ± 0. 02 mm ± 0. 01 mm
- - Programmable feed rate up to 100 m/min up to 125 m/min
- - Transfer table motorized motorized - automatic exchange
- Qualitative Machine Benefits:
- - Baykal uses a precitec laser head, which allows for the best results and constant peak performance on the material surface of the final product.
- - Thanks to the capacitive sensor, the distance between the laser head and the workpiece is constant.
- - The laser head is equipped with a cassette system.
- - The cutting head also includes a lens protection mirror. The mirror protects the cutting lens, thus ensuring its long life. The easy-to-replace and inexpensive protective mirror allows trouble-free operation without any problems with the lenses.
- - The cutting head is equipped with a collision protection system. In the event of a collision with the workpiece, the head easily detaches to avoid further damage.
- - Automatic nozzle cleaning - and adjustment // gas control and delivery system
- - The machine is equipped with an automatic gas selection system. Depending on the cutting process, the machine automatically selects and adjusts the cutting and auxiliary gases. The low- and high-pressure nitrogen, oxygen and air cutting, and auxiliary gas lines are all connected
- - Twincat cnc control software for beckhoff controls pc-based control software with full cnc functionality covers the entire range of classic cnc functions
- - Ipg photonics fiber laser
- - The laser beam is created inside the fiber and reaches the cutting head without interruption, except for the beam coupler or switch
- - Touch screen monitor - 320 GB program data storage // Light barrier protection, full cover as standard equipment // Lens protection window
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
