- Baykal HNC 8116 Shearing machine

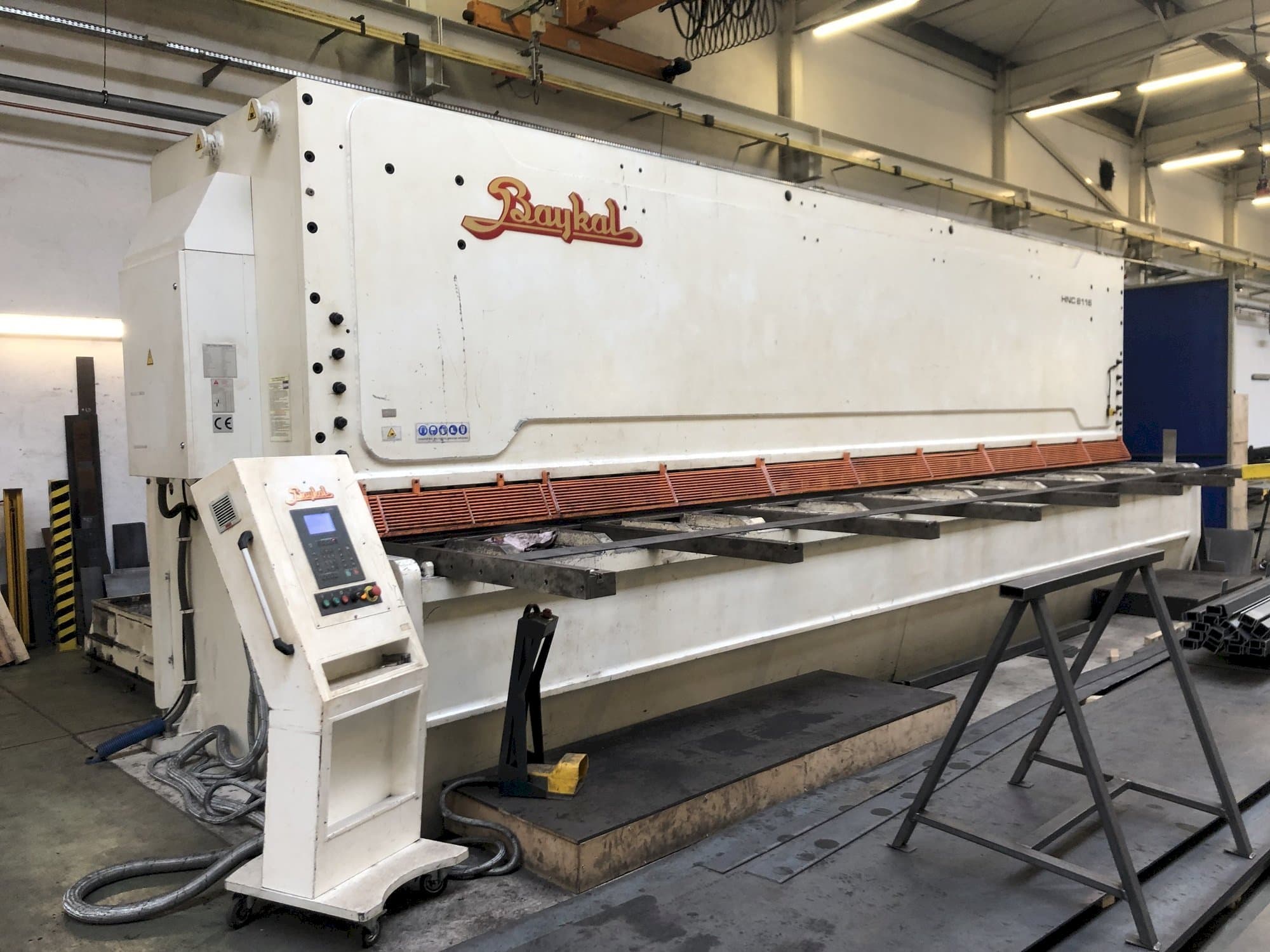

This Baykal HNC 8116 Shearing machine was manufactured in the year 2014 in Turkiye. It is equipped with a CYBELEC DNC 60 control unit.
Overview
- brand: Baykal
- year: 2014
- MODEL: HNC 8116
- application type: Shearing
- Location: Poland
- machine type: Shearing machines
- availability: Immediately
- control unit brand: CYBELEC
Technical Information - Baykal HNC 8116
General Data
- Measurements width: 9260 mm
- Measurements depth: 3535 mm
- Measurements height: 3320 mm
- Machine weight: 66500 kg
Control Unit
- Brand: CYBELEC
- Model: DNC 60
Additional Information
- Technical Machine Benefits:
- - Cutting capacity: 16 mm
- - Cutting length: 8060 mm
- - Front supports with a length of 1000 mm
- - Side clearance in the frame of 350 mm
- - Power supply voltage: 380v / 50 hz / 3 phase
- - Motor power: 37 kw
- - Strokes per minute: 4-6
- - Operator finger protection at the front of the machine
- - Automatic cnc adjustment of blade gap and cutting angle
- Qualitative Machine Benefits:
- - Ability to program the backgauge, number of cuts, cutting angle, and blade gap;
- - Welded steel structure providing the necessary rigidity and durability
- - Motorized rear backgauge driven by a ball screw with a tilting function to allow cutting of oversized sheets
- - High-carbon steel blades
- - Adjustable cutting length
- - Cutting line illumination
- - Hydraulic sheet clamping
- - Portable foot switch, ce mark
- - Hydraulic overload protection, second set of upper and lower cutting blades
- - Two independent drawers for the cut material, move along a track
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
