Biglia B545M

Biglia - B545MIT-TUR-BIG-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

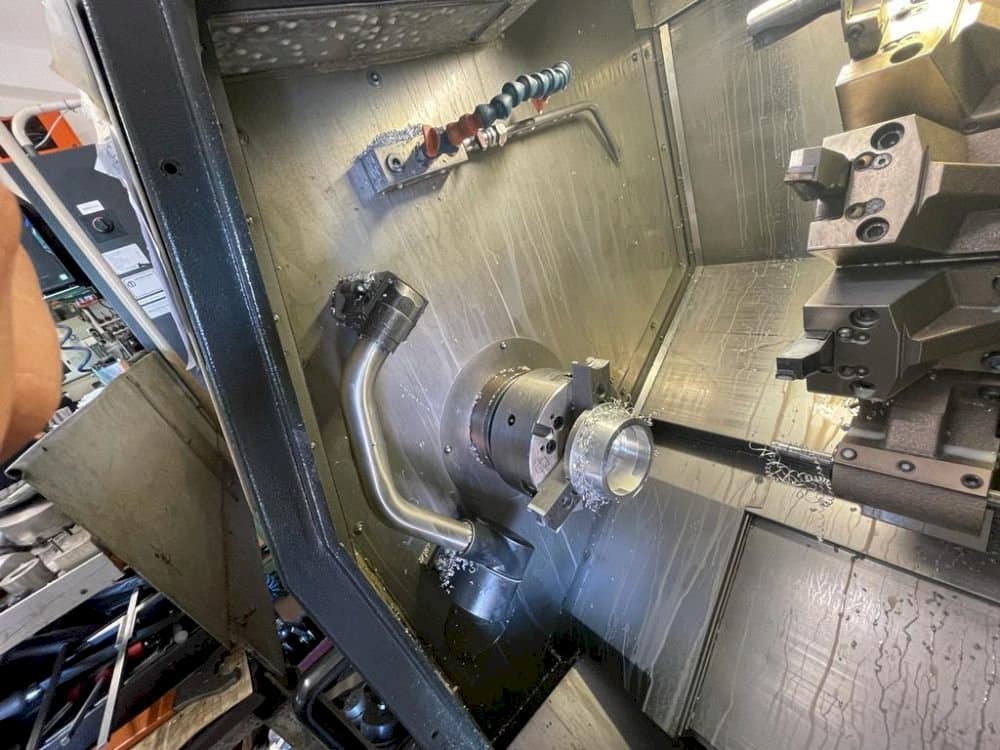

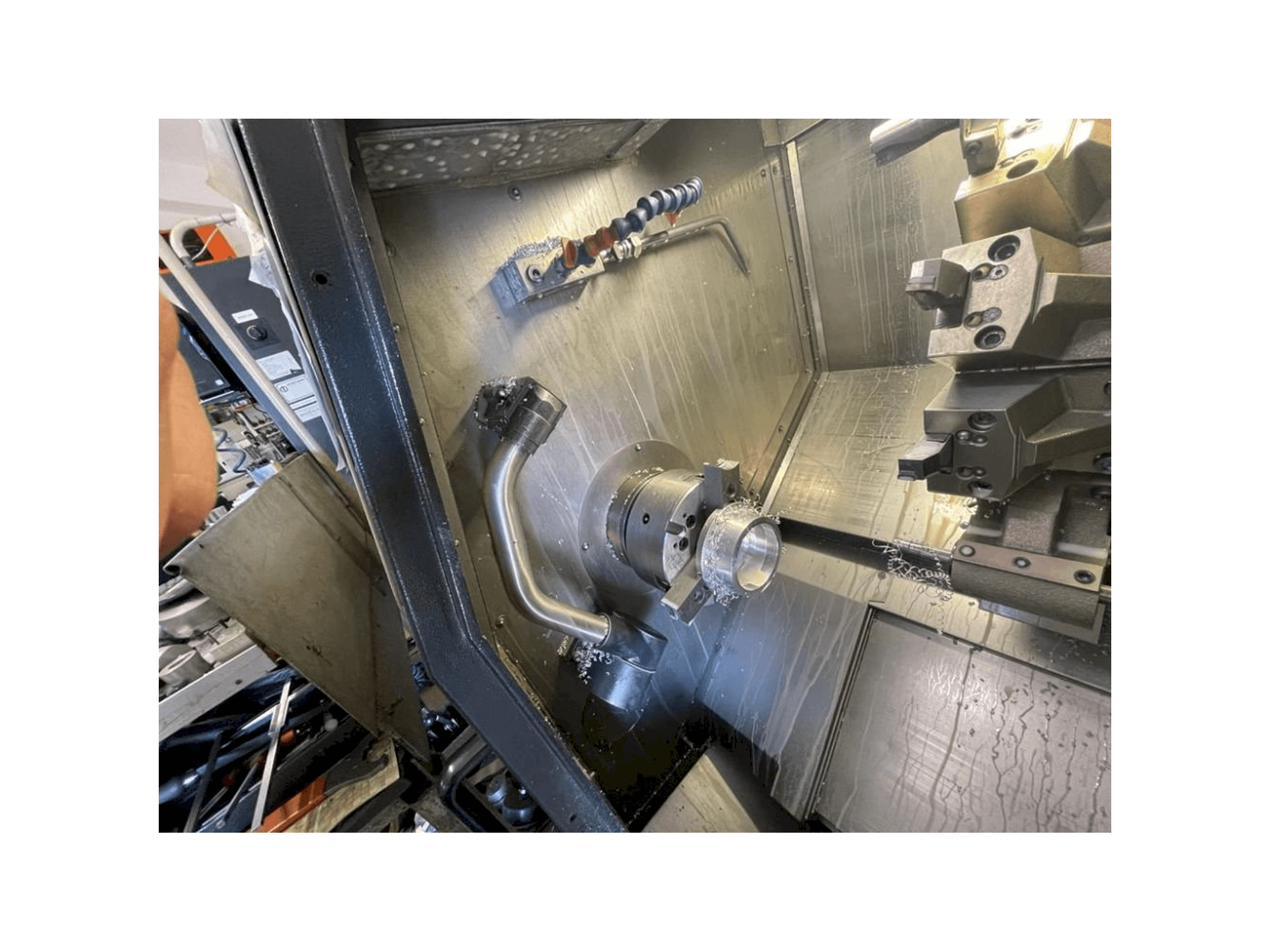

BIGLIA B545M Lathe

This BIGLIA B545M Lathe was manufactured in the year 2012. It is equipped with a Fanuc Series 32i MODEL B control unit and has 4 axis. The machine has a spindle speed of 5000 rpm.

Overview

brand: Biglia
year: 2012
MODEL: B545M
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia B545M

General Data

Measurements width: 4487 mm
Measurements depth: 1901 mm
Measurements height: 2125 mm
Machine weight: 4600 kg

Control Unit

Model: Series 32i MODEL B
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 15 kW
Spindle bore: 59,5 mm
Tool taper: ASA 5"
Number of axis: 4

Movement

X-AXIS Movement: 170 mm
Z-AXIS Movement: 560 mm
C-AXIS Movement: 0,001 º MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar turning dia: 51 mm
- - Max. Turning dia: 290 mm
- - Constant power starting at: 1320 rpm
- - Max. Chuck dia. : 210 mm
- - Max. Longitudinal travel: 490 mm
Qualitative Machine Benefits:
- - Hydraulic system
- - Lubrication system
- - Coolant system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
