Biglia - B 501 MBBG-TUR-BIG-1997-00001

Name: Biglia B 501 MB
Brand: Biglia
SKU: BG-TUR-BIG-1997-00001
Price: 16000 EUR
Availability: InStock

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

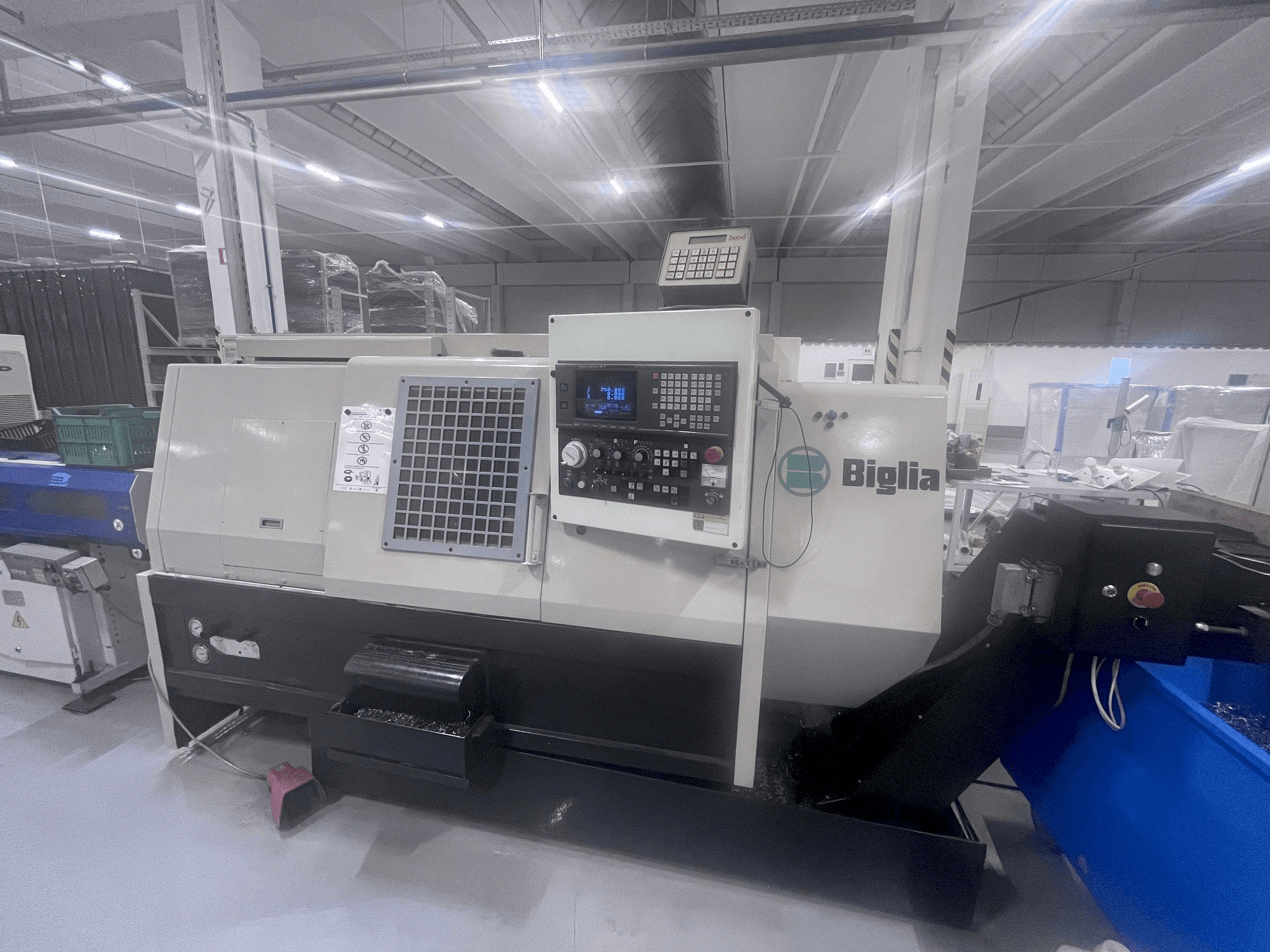

Used Lathe machine BIGLIA B 501 MB - 1997 - for sale | gindumac.com

This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.

Overview

brand: Biglia
year: 1997
MODEL: B 501 MB
application type: Turning
Location: Bulgaria
machine type: Turn-Mill Centre

Technical Information - Biglia B 501 MB

Dimensions

Machine Depth: 4000 mm
Machine Height: 1660 mm
Machine Weight: 4700 kg

Movement

X-axis Travel: 210 mm
Z-axis Travel: 500 mm

Technical Specification

Number of Tools: 6
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

The bar feeder is not included and not for sale.

Machine Benefits

Technical Machine Benefits

Spindle nose: asa 6''
Spindle hole: 80mm
Maximum bar workable diameter: 54-68mm
Maximum workable diameter for shooting: 250mm
Maximum workable length: 500mm
Maximum rotating diameter: 520mm
Front bearing internal diameter: 110mm
Self-centering diameter: 210-250mm
Caliper group: din 6343
Engine power: kw 11-15(50%)-22-26(50%)

Extra Information

- Turret type: bidirectional - External tool shank: 25 x 25 mm - Reamer tool shank: 32mm - Rotation time (1 position): 0.7sec - Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%) - C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm -Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440 - Tank capacity: 200l - Pump flow rate: 100 l/min - Pump motor power: 0.5Kw - Main spindle center height 1000mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
