➤ Used Biglia Smart Turn 1200 For Sale | gindumac.com

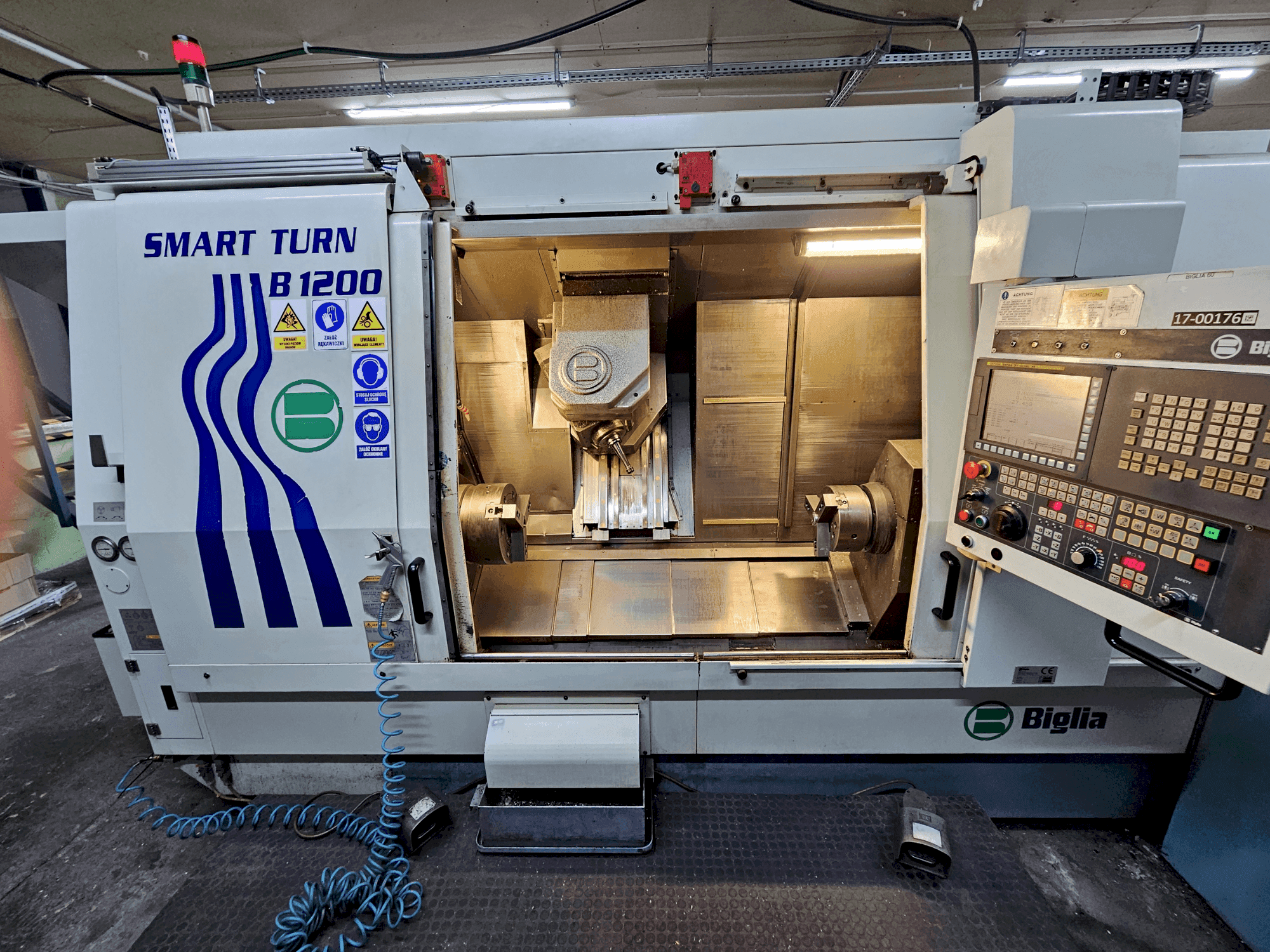

This Biglia Smart Turn 1200 was manufactured in 2008. A robust horizontal turning machine with a bar capacity of 92 mm and a maximum machining diameter of 490 mm. It features a spindle bore of 111 mm and a chuck diameter of 315 mm, powered by a 30 kW motor. Ideal for handling substantial workpieces, the machine we have for sale weighs 7000 kg. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: Biglia
year: 2008
MODEL: Smart Turn 1200
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - Biglia Smart Turn 1200

General Data

Measurements width: 2000 MM
Measurements depth: 5100 MM
Measurements height: 2100 MM
Machine weight: 7000 KG

Main drive

Spindle speed range: 2800 1/MIN
Spindle motor power: 30 kW
Spindle bore: 111 mm

Movement

X-AXIS Movement: 255 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 1315 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece drm: 490 mm
Workpiece x: 1315 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity: 92 mm
- - Max. Swing over diameter: 700 mm
- - Chuck diameter: 315 mm
- - Power on: 75863h, cutting time: 23136h

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
