Bodor C3
Bodor - C3
2022
83,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bodor C3 Fiber laser cutting machine

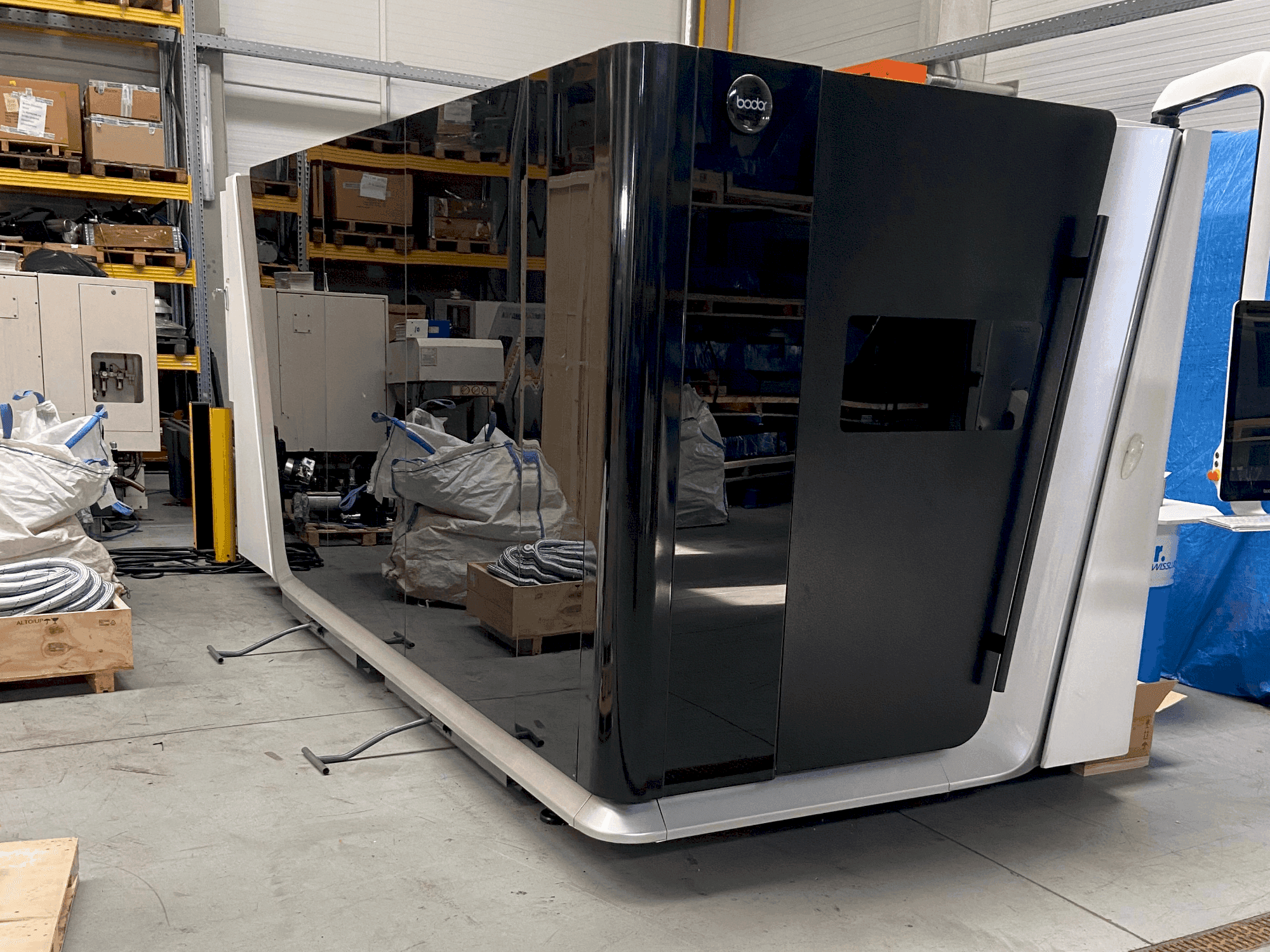

This Bodor C3 Fiber laser cutting machine was manufactured in 2022 in China. It is equipped with a 6 kW fiber laser with Maxphotonics laser source and a Bodor laser head. In addition, it operates with interchangeable tables, X/Y-axis positioning accuracy of 0.05mm/m, a max. acceleration of 1.5 G and a max. linkage speed of 110m/min. The machine is used as demo machine, it is like new, still under power and can be inspected anytime.
Overview
- brand: Bodor
- year: 2022
- MODEL: C3
- production hours: 50
- application type: Laser Cutting
- Location: Czech Republic
- machine type: Fiber laser cutting machines
- availability: Immediately
- control unit brand: BODOR
- GINDUMAC ID: CZ-LAS-BOD-2022-00001
Technical Information
General Data
- Measurements width: 9100 mm
- Measurements depth: 2225 mm
- Measurements height: 2055 mm
- Machine weight: 4800 kg
Control Unit
- Brand: BODOR
- Model: BodorThinker 3.0
Main drive
- Laserpower: 6 KW
Movement
- Z-AXIS Movement: 300 mm
Workpiece
- Workpiece weight: 1450 kg
Media
- Power consumption: 59.8 kVA
Additional Information
- Technical Machine Benefits:
- - X/y-axis positioning accuracy 0. 05mm/m
- - Bodor laser head
- - Max. Accelaration 1. 5 g
- - Laser source maxphotonic
- - Interchangeable tables
- - Max. Linkage speed 110m/min
- Qualitative Machine Benefits:
- - Demo machine, like new
- - Machine is under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
