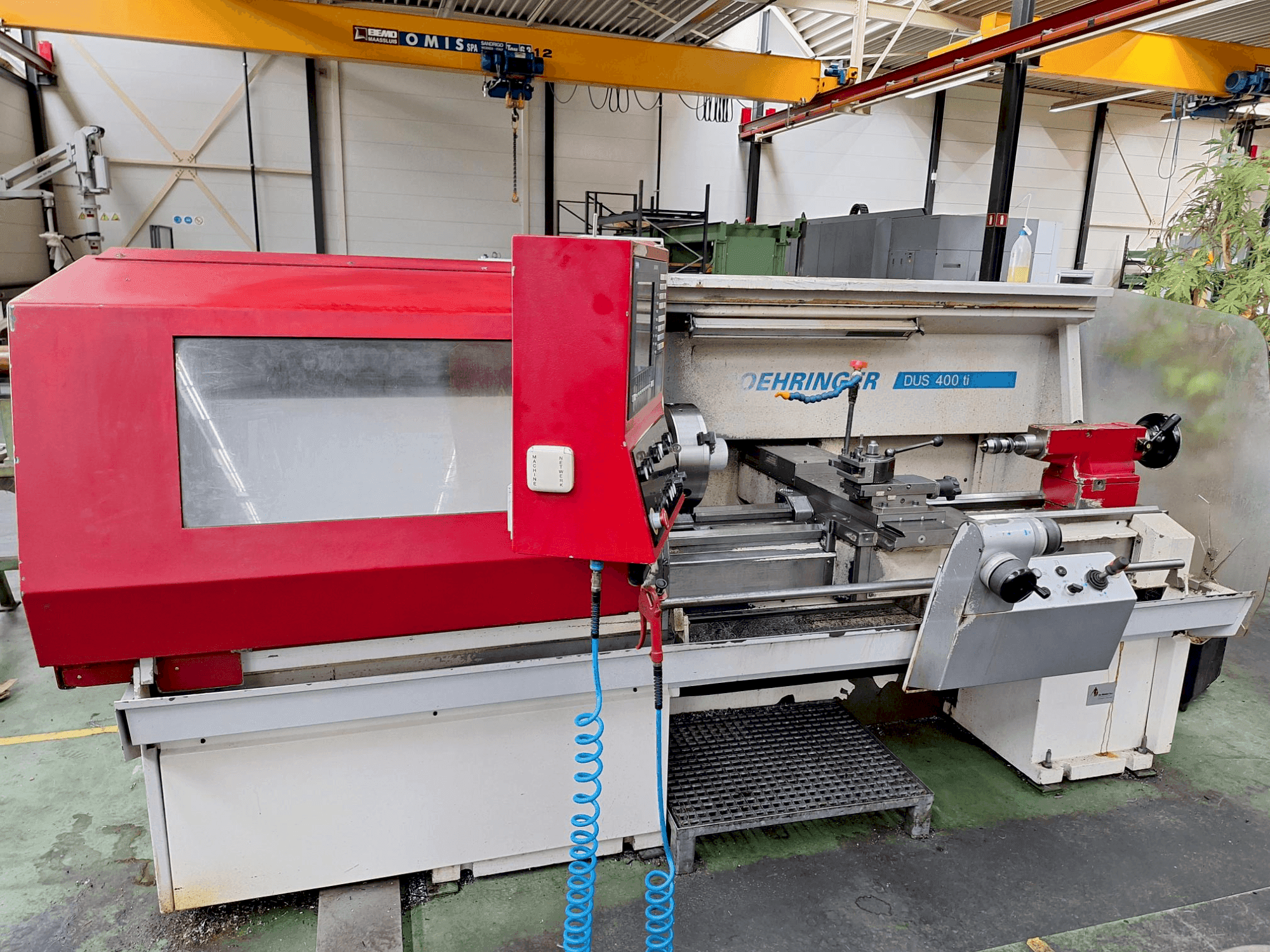

This lathe was manufactured in 2003. The BOEHRINGER DUS 400 ti features a robust tailstock with a quill diameter of 70 mm and stroke of 110 mm. It supports a maximum workpiece weight of 250 kg with tailstock and steady rest. Equipped with a 10.4" color LCD display, it offers detailed control over spindle speed and feed rate. Ideal for precision tasks, the machine we have for sale is a valuable addition to any workshop. Contact us for more information.
Overview
- brand: BOEHRINGER
- year: 2003
- MODEL: DUS 400 ti
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- availability: Sold
Technical Information - BOEHRINGER DUS 400 ti
Additional Information
- Technical Machine Benefits:
- - Feed: metric screw thread (long, flat, and conical) with a range of 0. 1–400 mm.
- - Tailstock:quill diameter: 70 mm quill stroke: 110 mm internal taper of the quill: mk 4
- - Internal taper of the spindle: sk 60°
- - Center angle, normal: 60°
- - Clamping and guide device diameter of flat plate, normal: 400 mm
- - Three- and four-jaw plate, diameter according to vdf 6025: 250 mm
- - Fixed steady rest: 200 mm
- - Allowable workpiece weights:unsupported, max. Center of gravity distance without clamping device: 100 kg with clamping device: 50 kg with tailstock: 150 kg with tailstock and 1 steady rest: 250 kg
- - Display: 10. 4" color lcd
- - 1000 mm between the centers
- Qualitative Machine Benefits:
- - Swing-dia over bed 235mm
- - 420 mm swing-dia over cross slide
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
