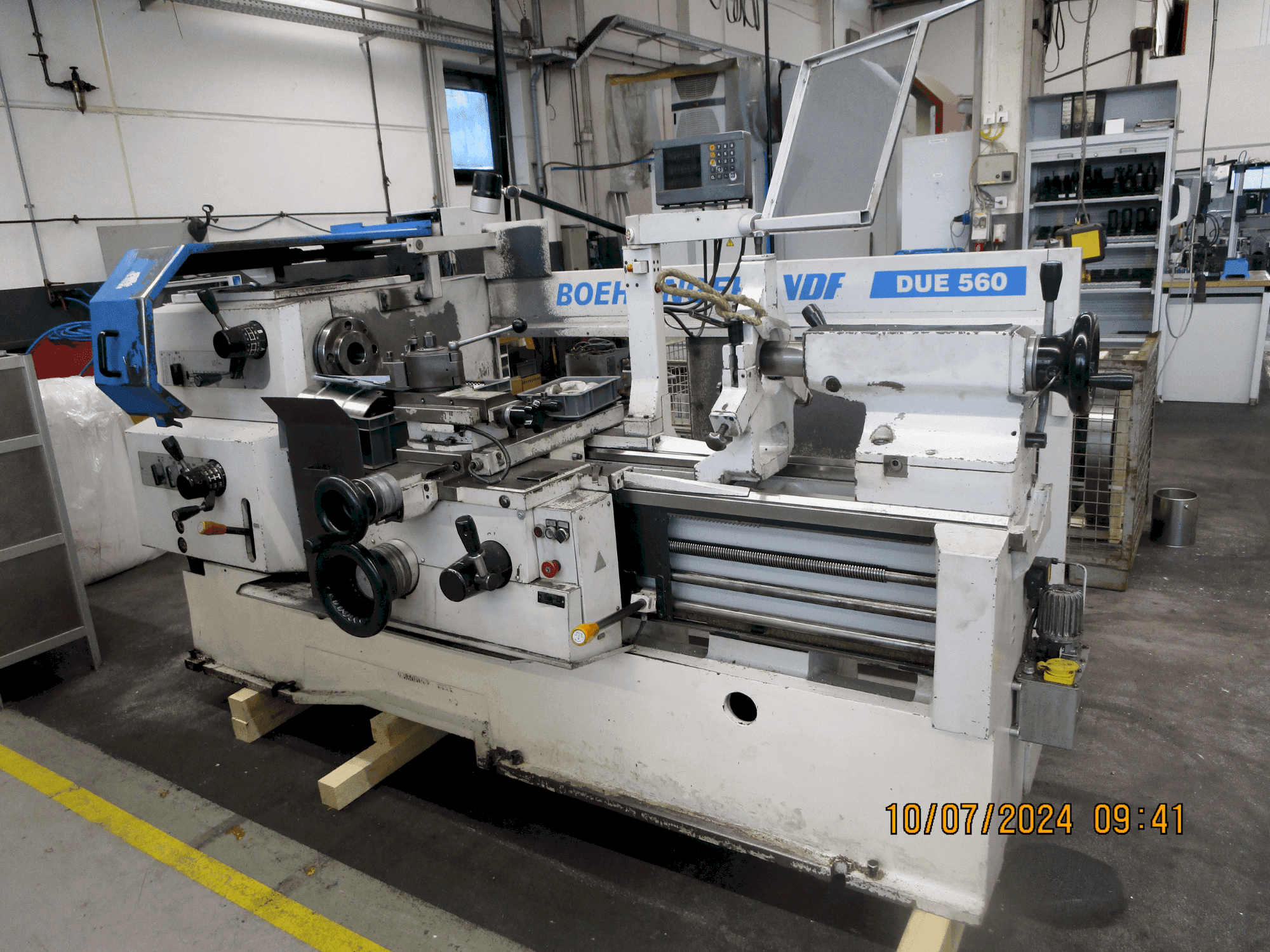

Front view of BOEHRINGER VDF DUE 560 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BOEHRINGER VDF DUE 560

Photo Gallery

BOEHRINGER - VDF DUE 560DE-TUR-BOE-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BOEHRINGER VDF DUE 560 For Sale | gindumac.com

This BOEHRINGER VDF DUE 560 lathe was manufactured in 2004. It features a center height of 280mm, a maximum circulation diameter over bed of 570mm, and a bed width of 360mm. The spindle bore diameter is 62mm, and it offers a robust drive power of 15kW with 24 speed settings ranging from 11.2 to 2240 rpm. A great opportunity to buy this BOEHRINGER VDF DUE 560 lathe. Reach out for more information.

Overview

brand: BOEHRINGER
year: 2004
MODEL: VDF DUE 560
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - BOEHRINGER VDF DUE 560

Main drive

Spindle speed range: 11.2 - 2240 1/MIN
Spindle motor power: 15kW
Tool taper: Tailstock center point morse taper: No. 5
Number of axis: 2

Workpiece

Workpiece drm over bed: 570 mm
Workpiece drm over support: 365 mm

Additional Information

Additional equipment

chuck not included
Machine documentation is complete.

Machine Benefits

Qualitative Machine Benefits

Diameter of spindle bore: 62mm
24 speeds over wheels
Step change: 1. 25
Max. Torque: 2000 nm
Center length approx 1200 mm

Technical Machine Benefits

Center height above flat track: 280mm
Bed width: 360mm
Machine includes a tailstock and setting stock / diameter of the tailstock quill: 80mm
Quill stroke: 190mm
Bed slide guide length: 520mm
Face slide width/travel: 225/345
Top support width/travel: 140/125
Setting sticks consisting of guide diameter: 20-315 with guide diameter: 25-160
Main spindle spindle head according to din 55027 size: 8
Spindle diameter in front bearing: 100mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
