BOEHRINGER VDF DUS 1000

Name: BOEHRINGER VDF DUS 1000
Brand: BOEHRINGER
SKU: PL-TUR-BOE-1993-00001
Price: 48000 EUR
Availability: InStock

Photo Gallery

48,000 €

gindumac price

(Ex works)

Get an official quote

BOEHRINGER - VDF DUS 1000

1993

48,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

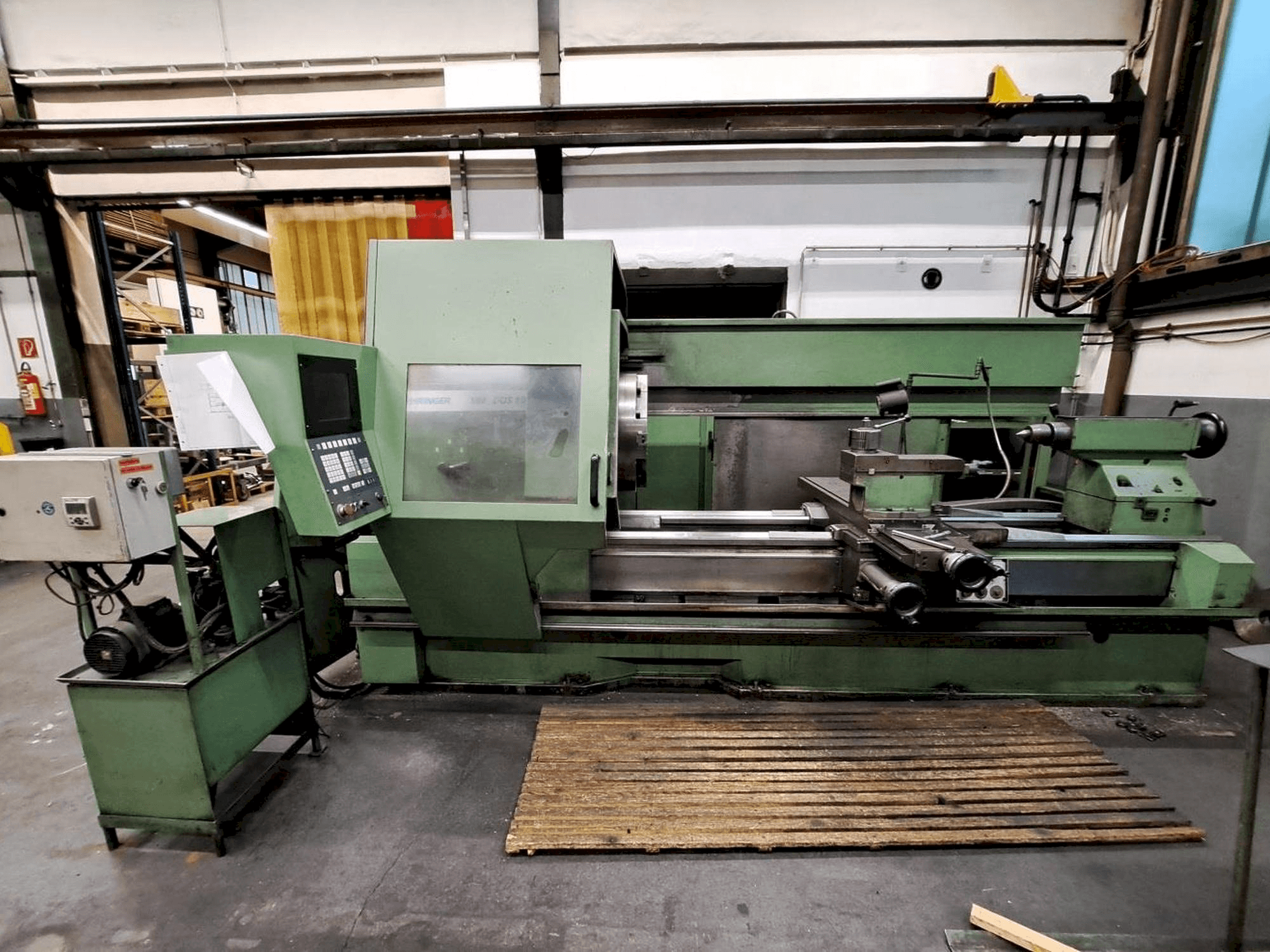

BOEHRINGER VDF DUS 1000 lathe

This BOEHRINGER VDF DUS 1000 lathe was made in the year 1993. It is equipped with a Siemens SINUMERIK control unit. The machine has a turning diameter over bed of 1000 mm and a turning diameter over cross slide of 710 mm.

Overview

brand: BOEHRINGER
year: 1993
MODEL: VDF DUS 1000
application type: Turning
Location: Poland
machine type: Lathe
availability: Immediately
control unit brand: Siemens
GINDUMAC ID: PL-TUR-BOE-1993-00001

Technical Information

General Data

Measurements width: 5800 mm
Measurements depth: 2050 mm
Measurements height: 2250 mm
Machine weight: 10000 kg

Control Unit

Brand: Siemens
Model: SINUMERIK

Media

Main electronic connection: 400 V / 50Hz
Power consumption: 60 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 1000 mm
- - Turning diameter over cross slide: 710 mm
- - Length between centers: 3300 mm
- - Spindle taper: kk 11 din 55027
- - Spindle bore: 128 mm
- - Bed width: 560 mm
- - Turning speed range: 6. 3 - 1600 u/min
- - Feed rate: 0. 01 - 50 mm/u
- - Feed rate - longitudinal / frontal : 20 / 12. 5 m/min
- - 3-jaw chuck diameter: 500 mm
Qualitative Machine Benefits:
- - Quick-change tool holder: multifix type d
- - Drive power - spindle motor: 46 kw
- - Drive power, 60 % ed 46 kw
- - Torque, 60 % ed max nm 5300
- - Taper: taper in sleeve: mk 6
- - Tailstock: diameter: 125 mm
- - Tailstock: pen stroke: 280 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
